Page 21
January, 200 4
412 O pe rator And
455 D Control Panel I nst allatio n M anual
T
HE
455 D C
ONTROL
P
ANEL
I
NSTALLATION
I
NSTRUCTIONS
I NDICATOR -L ICHT :
If 0 is selected, the output func-
tions as a standard indicator-light
(lit at opening and pause, flashing
at closing, and off when gate
closed). Time can be adjusted
from 0 to 59s in 1s increments,
and from 1.0 to 4.1 min. in 10s
steps.
0 = Standard Indicator-Light
From 1 to 4.1 = Timed Output
C LOSING P HOTOCELLS REVERSE AT
RELEASE : Enable this function if
you want the closing photocells to
stop the gate and reverse it after
the beam is cleared. Default setting
is immediate reverse.
Y = Enable
No = Disabled
A.D.M.A.P. F UNCTION :
If this function is enabled, the
safety devices to comply with
French standard NFP 25/362.
Y = Enable
No = Disabled
A SSISTANCE R EQUEST ( COMBINED
WITH NEXT FUNCTION ): If acti-
vated, at the end of countdown
(settable with the next function, i.e.
“Cycle programming”) it effects 8s
of pre-flashing at every Open pulse
(job request). Can be useful for
setting scheduled maintenance
jobs.
Y = Enable
No = Disabled
C YCLE P ROGRAMMING :
For setting count down of system
operation cycles. Settable (in thou-
sands) from 0 to 99 thousand cy-
cles. The displayed value is up-
dated as cycles proceed. This func-
tion can be used to check use of
the board or to exploit the
“Assistance Request” function
.
E XTRA W ORK T IME :
When operating, if reversing occurs,
and if the leaf does not reach its
end contact point, you can activate
this function to increase work time.
Y = A CTIVE
N O = D ISABLED
E XIT P ROGRAMMING :
Exit from programming.
F AIL S AFE :
If this function is activated,
it enables a function test of
the photocells before any
gate movement.
Y = Enable
No = Disabled
P RE F LASHING (5 S ):
5s before start of move-
ment.
Y = Enable
No = Disabled
E LECTRIC L OCK ON L EAF 2:
For using the electric lock on
leaf 2 instead of on leaf 1.
Y = Enable
No = Disabled

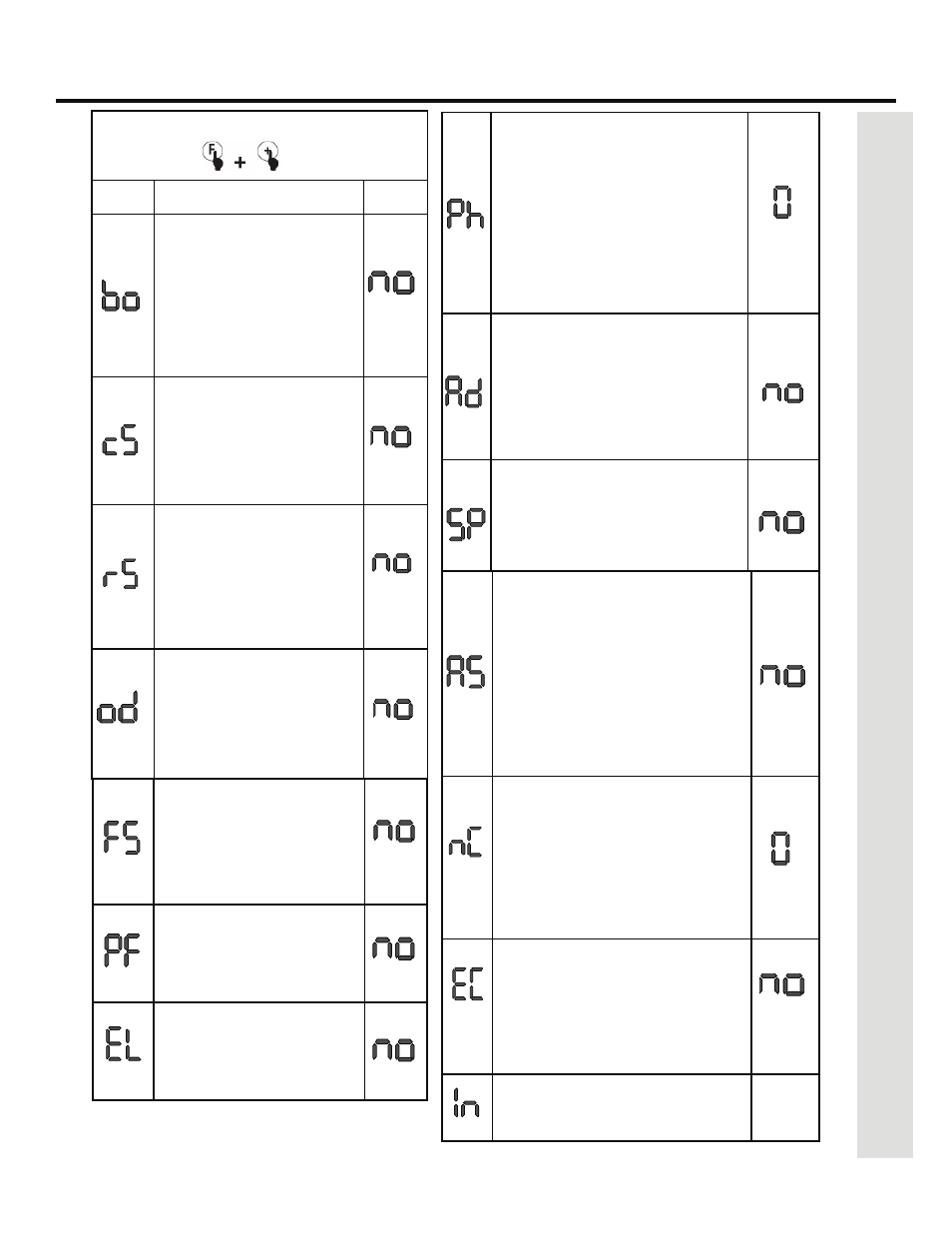

ADVANCED PROGRAMMING
Display Function Default
M AXIMUM T ORQUE AT I NI-
TIAL T HRUST : The motors
operate at maximum
torque (ignoring the torque
setting) at start of move-
ment. Useful for heavy
leaves.
Y = Enable
No = Disabled
L AST S TROKE AT C LOSING :
The motors are activated at
full speed for 1s to facili-
tate locking of the electric
lock.
Y = Enable
No = Disabled
R EVERSING S TROKE :
Before opening, while the
gate is closed, the motors
thrust to close for 2 s thus
facilitating release of the
electric lock.
Y = Enable
No = Disabled
L EAF 2 O PENING D ELAY
(2 S ):
Enables delayed start of
leaf 2, avoiding interfer-
ence between leaves.
Y = Enable
No = Disabled
