Exceptions:

The command is effective only at the beginning of a line. This command is ignored if the line buffer is not empty.

Set printing area width

ASCII

GS W nL nH

Hexadecimal 1D 57 nL nH

Decimal

29 87 nL nH

Range of nL:

0–255

Range of nH: 0–255

Default:

576 dots (the maximum printable area)

Sets the width of the printing area. If the setting exceeds the printable area, the maximum value of the printable area
is used. The width of the printing area is set to ((nH X 256) + nL) times horizontal motion unit) inches. The horizontal
motion units are set by the set horizontal and vertical minimum motion units command (1D 50).
The width of the printing area follows the set left margin command (1D 4C). See the set left margin command (10 4C …)
earlier in this document for a description.
Formulas

To set the width of the printing area to one inch at the default horizontal motion unit of 1/203 inches, send the four-byte
string:

GS W 203 0

Or, to set the width of the printing area to two inches at the default horizontal motion unit of 1/203 units per inch, send the
four-byte string:

GS W 150 1

Where 2 inches = 406/203, and 406 = (1 X 256) + 150.
Exceptions

This command is effective only at the beginning of a line.
If the setting exceeds the printable area, the maximum value of the printable area is used. The maximum printable area is

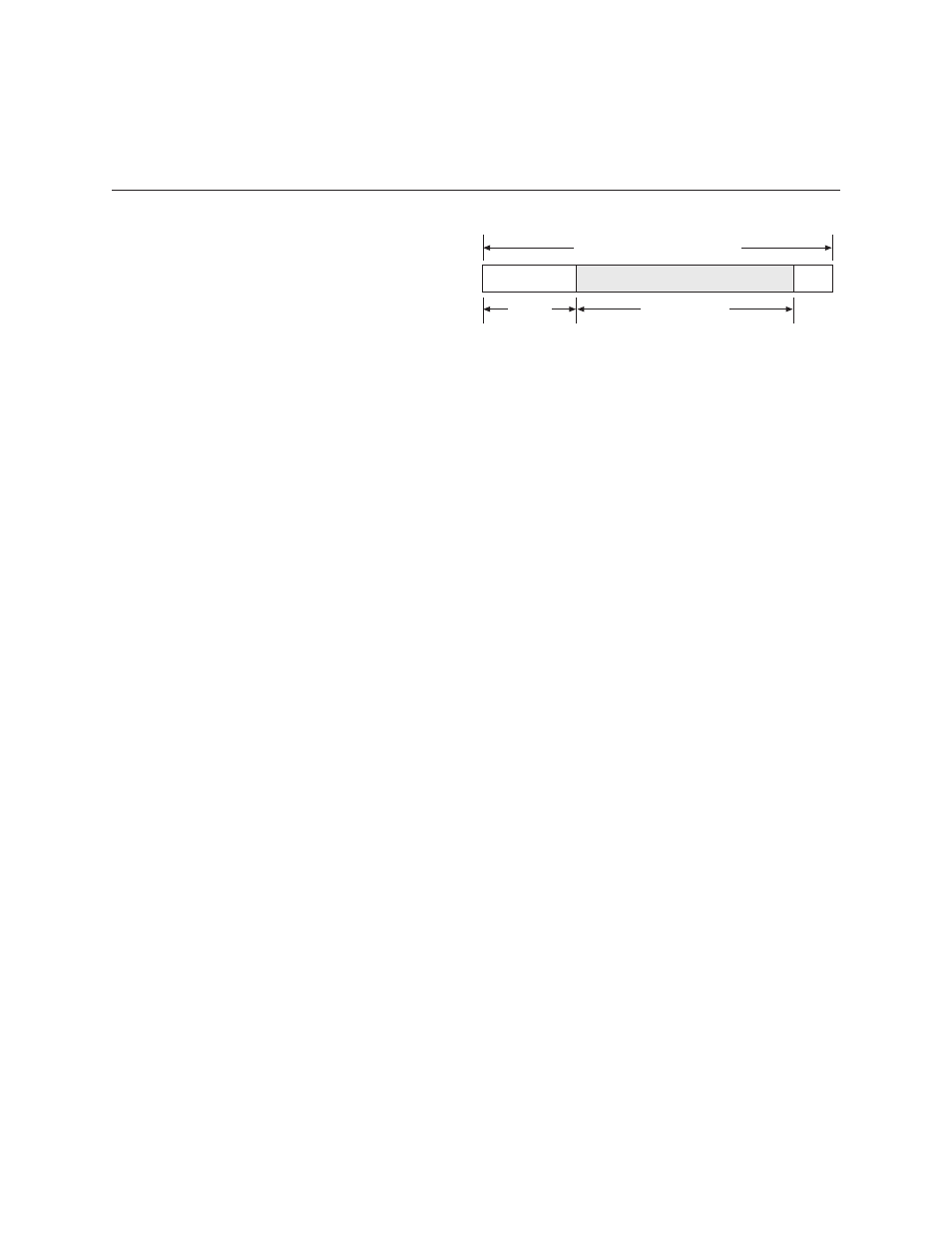

576 dots. See the illustration.

��
