4 Channel DVR User Guide
26
4. LIVE & SEARCH
4-1. Live Screen
In the Live window, video inputs from the cameras are displayed on the configuration of the
live setup. Figure 4.1.1 shows the layout of the live screen. Various indicators showing the
status of the DVR are shown as OSD symbols. Refer to Table 4.1.1 for the meanings of the
indicators.

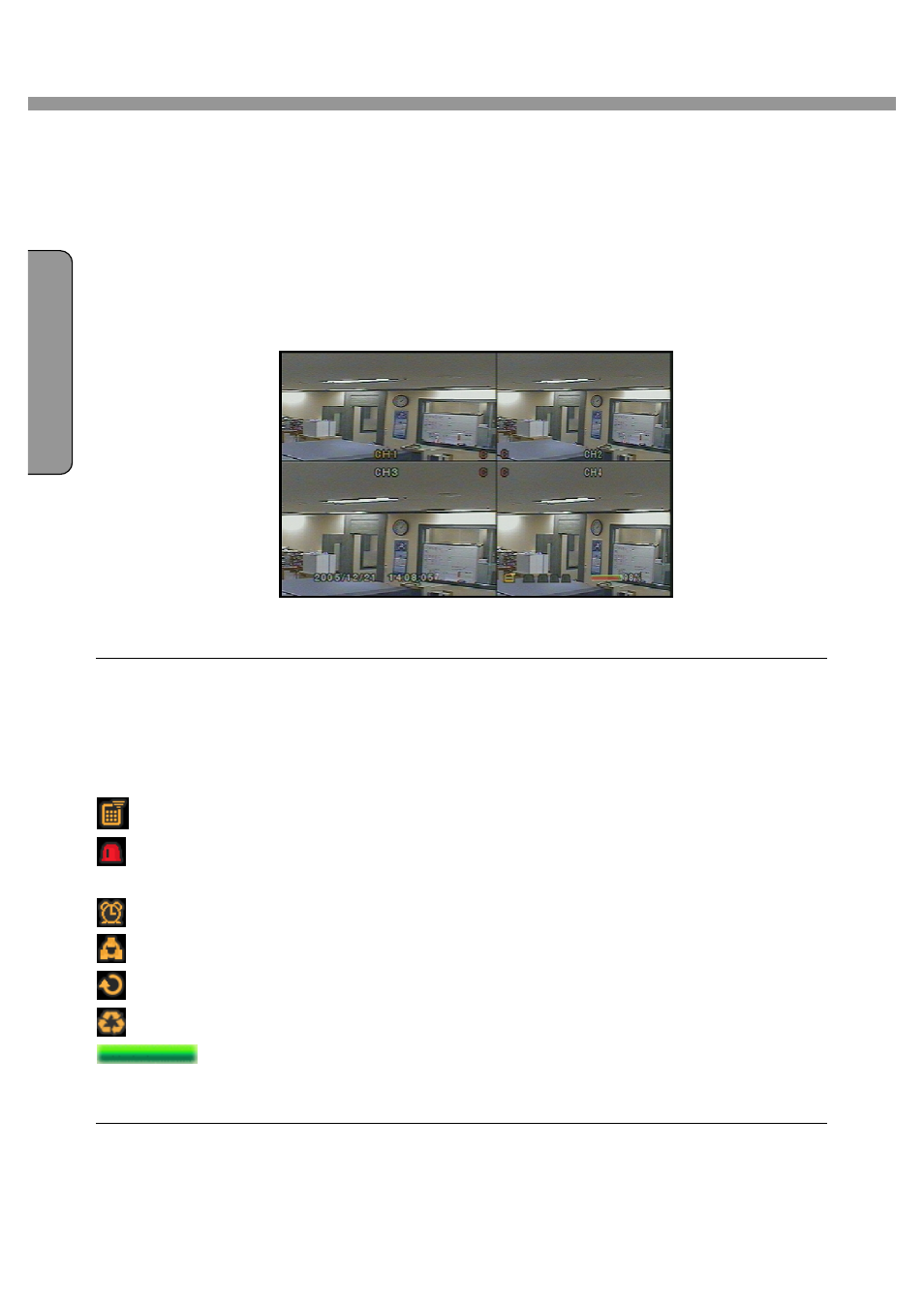

Figure 4.1.1. Live Screen
Indicator Icons in Live Screen
C
Continuous recording in progress
R
Manual recording in progress
S
Sensor alarm recording in progress
M
Motion alarm recording in progress
Indicates that Remote controller ID function is activated.
Alarm indicator. When there is an alarm (sensor alarm or motion alarm) in the video
channel, this icon will be highlighted in bright red.
Indicates that alarm output is activated.
Indicates that a network client is connected to the DVR.
Indicates that sequencing mode is enabled.
Indicates the HDD is being recycled
Indicates the percentage of recorded data into HDD. 100% will be indicated once
recorded data is full in HDD. This is occurred only in OVERWRITE OFF mode which is
set from storage setup.
