4 Channel DVR User Guide

1. FRONT PANEL

The following information will help you operate the front panel controls.

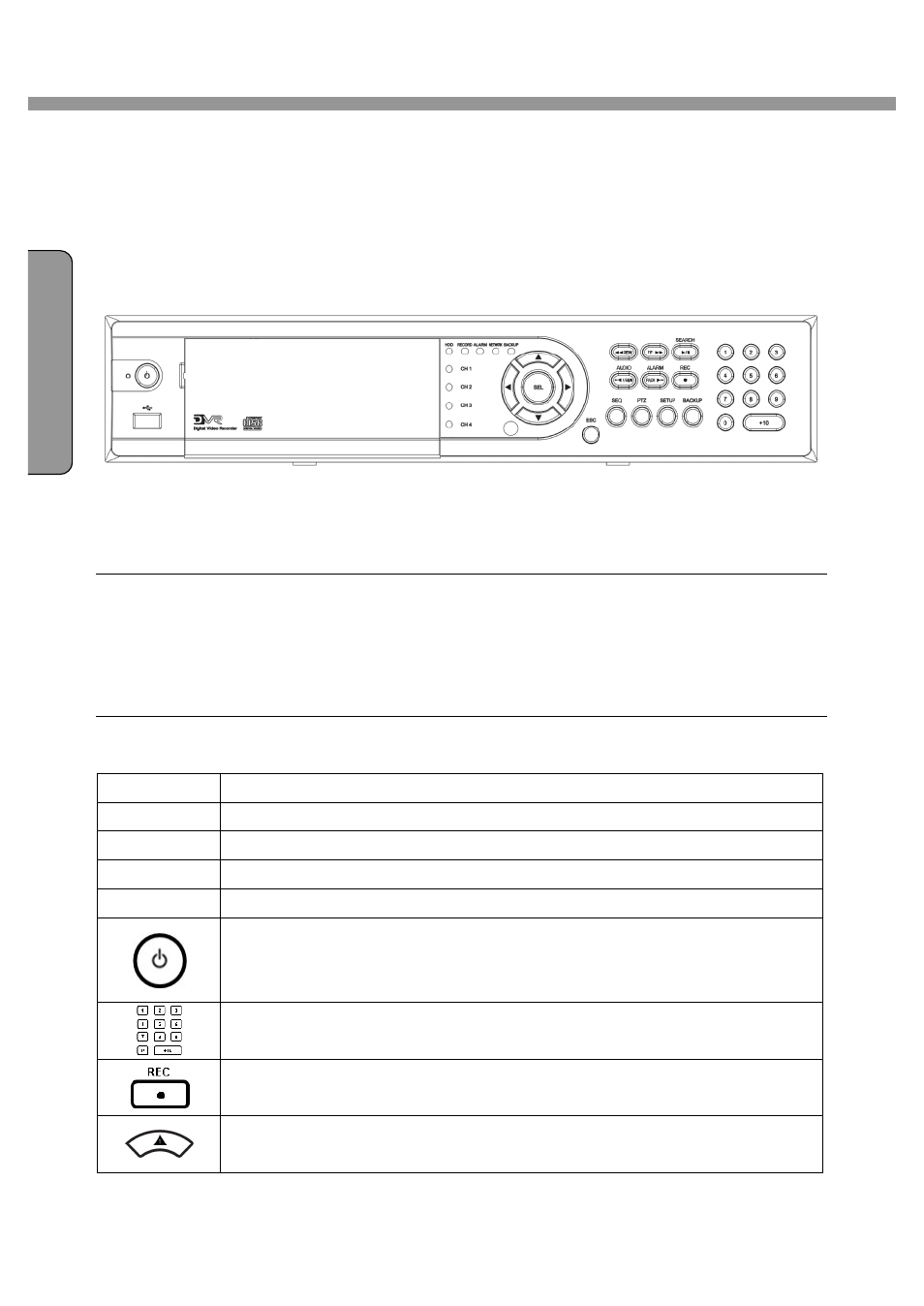

Figure 1.1 Front panel

LED Indication

HDD: LED light is on when the system is accessing video data.
REC: LED light is on when the system is recording video data.
ALARM: LED light is on when alarm sensor(s) is/are triggered or motion is detected.
NETWORK: LED light is on when client(s) is/are connected to the system through the network.
BACKUP: LED light is on when the system save a image to a USB stick or a CD.

Front panel buttons

SEQ

Press to start auto sequencing of the screen in full screen mode. (Toggle)

BACKUP

Press to start operations involving archiving in live or playback mode.

PTZ

Press to control PTZ operation

SETUP

Press to launch SETUP menu.

ESC

Press to return to previous menu screen.

Power ON/OFF button. Press to start the DVR system or to do shutdown.
When you turn off the DVR system, it will ask for a password. The default
password is 1111.

Press to select a channel number or password. 1, 2, 3 and 4 buttons are
usable for 4CH DVR.

Press to start and stop manual recording.

Press to move up the menu items in setup mode and to select camera 1 in
live mode. It is also used as the number 1 when entering password.
