2 P RODUCT C OMPONENTS
The Ultra Series ISC Cartridge Tension Transducer (see Figure 3 and Figure 4) consists of a housing that
contains the amplifier and power supply boards that are coupled directly to an “Ultra” type load cell. There
is an M12 connector to send amplified transducer signals into a tension controller, PLC, PAC, drive or
local I/O. This housing has two access holes for gain and zero potentiometer adjustments if necessary.

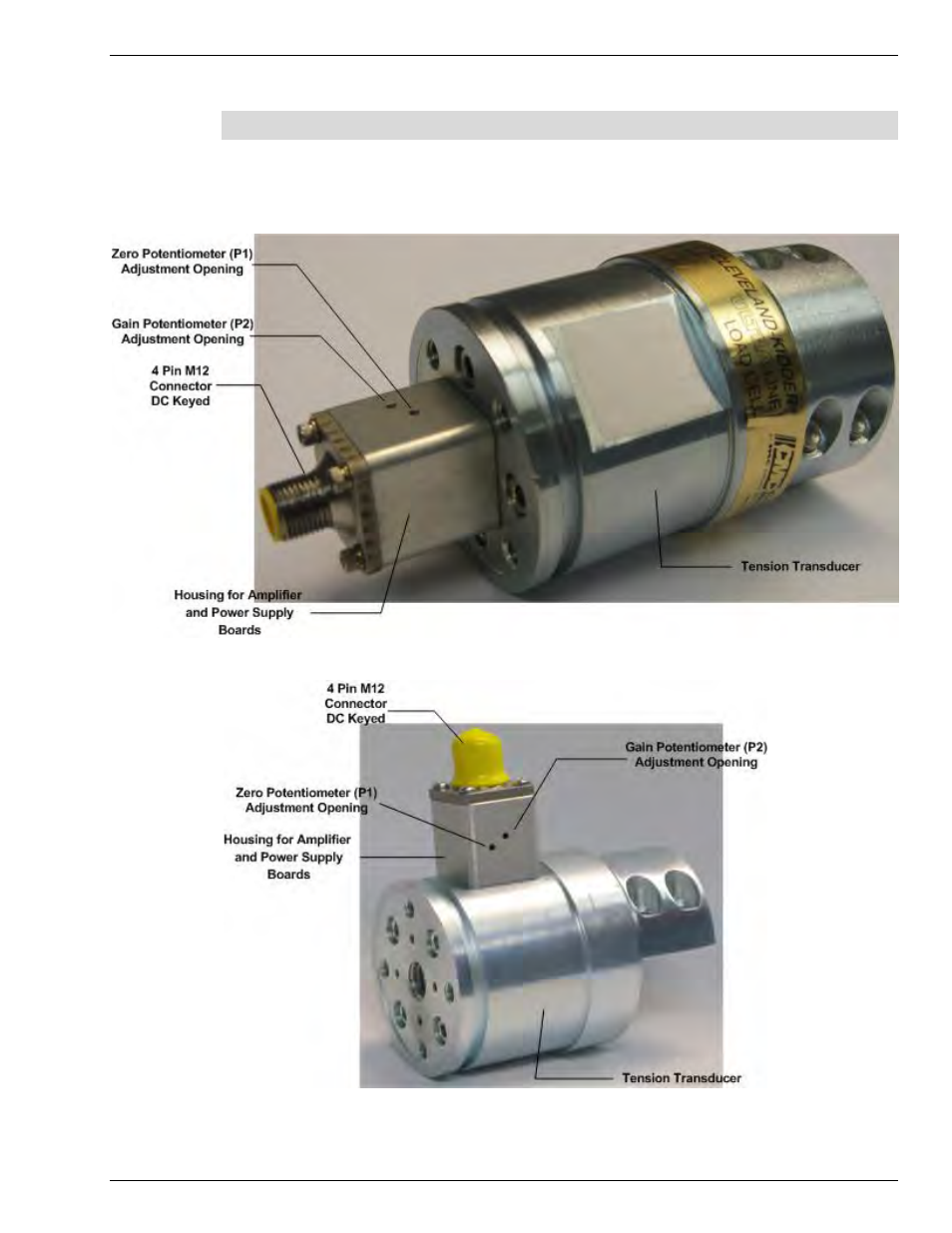

Figure 3 Ultra Series ISC Cartridge Tension Transducer Model EC
Figure 4 Ultra Series ISC Cartridge Tension Transducer Model SC
