216

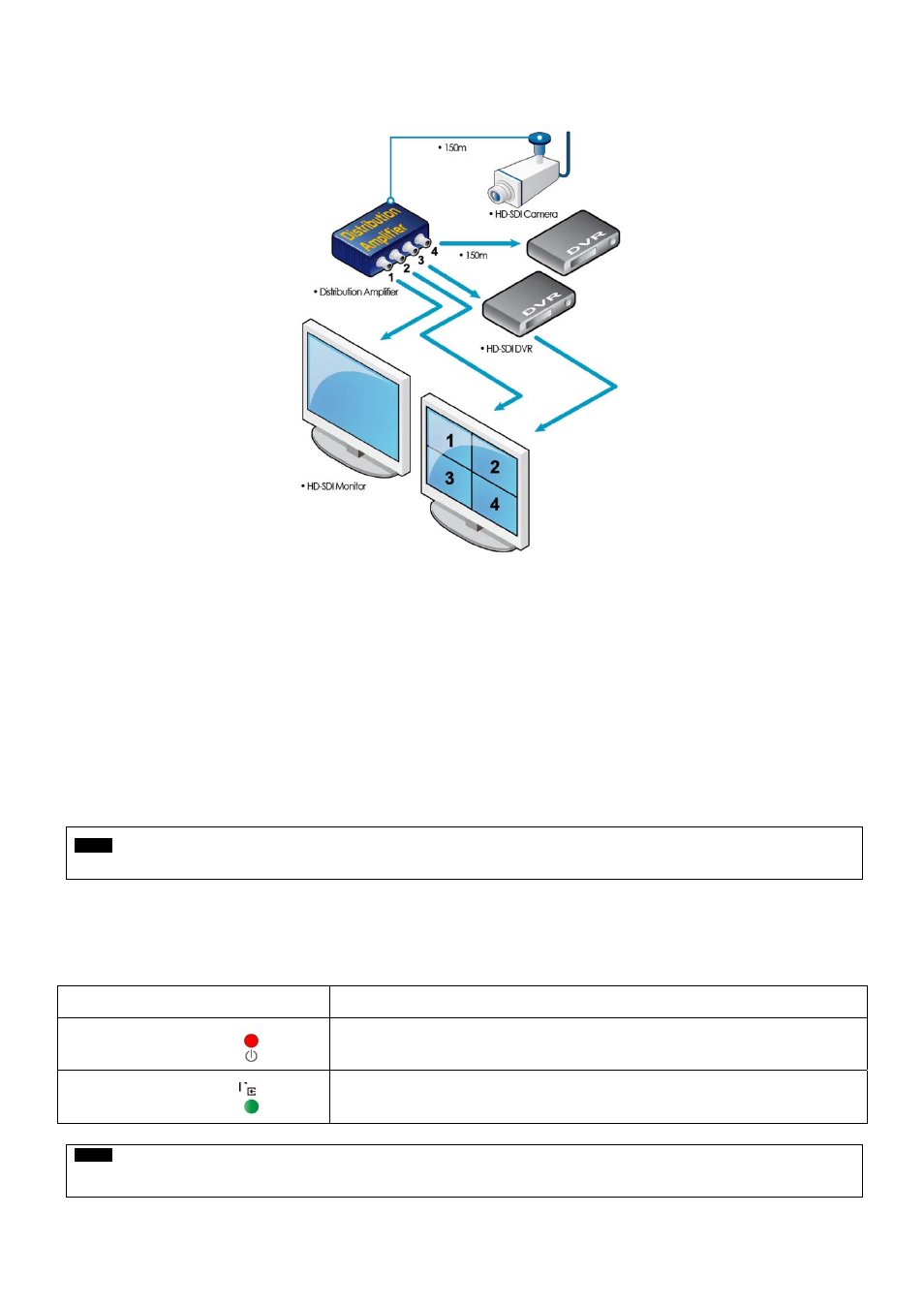

13.7.7 Connector Wiring
13.7.7.1 Distribution-In/Out Connections
 Connect a ‘HD-SDI OUT’ of HD-SDI device (e.g. Camera) to ‘HD-SDI IN’ of HQS 1004 using by 75 ohm coaxial cable
 Connect 4 ‘HD-SDI OUT’ of HQS 1004 to each ‘HD-SDI IN’ of HD-SDI devices (e.g. DVR).
13.7.7.2 Power Supply Connections
 Plug the power supply adapter (DC 12V, 3.33A) which is included in this product to ’DC12V’ connector and plug another
side to power source and Input voltage is a free volt (100 VAC ~ 240 VAC).
13.7.8 Cable
 75 ohm coaxial cable
NOTE
The cable above is not included in the package.
13.7.9 Display
13.7.9.1 LEDs
KEYS Operating mode
Power LED
(Red)
• Light off: Repeater off
• Light on: Repeater on
Connection LED
(Green)
• Light off: Not connected
• Light on: Connected
NOTE
Please note that this device has the same function as HD-SDI repeater that extends the signal transmission distance up to
150m.
