208
13.3.7 Connector Wiring

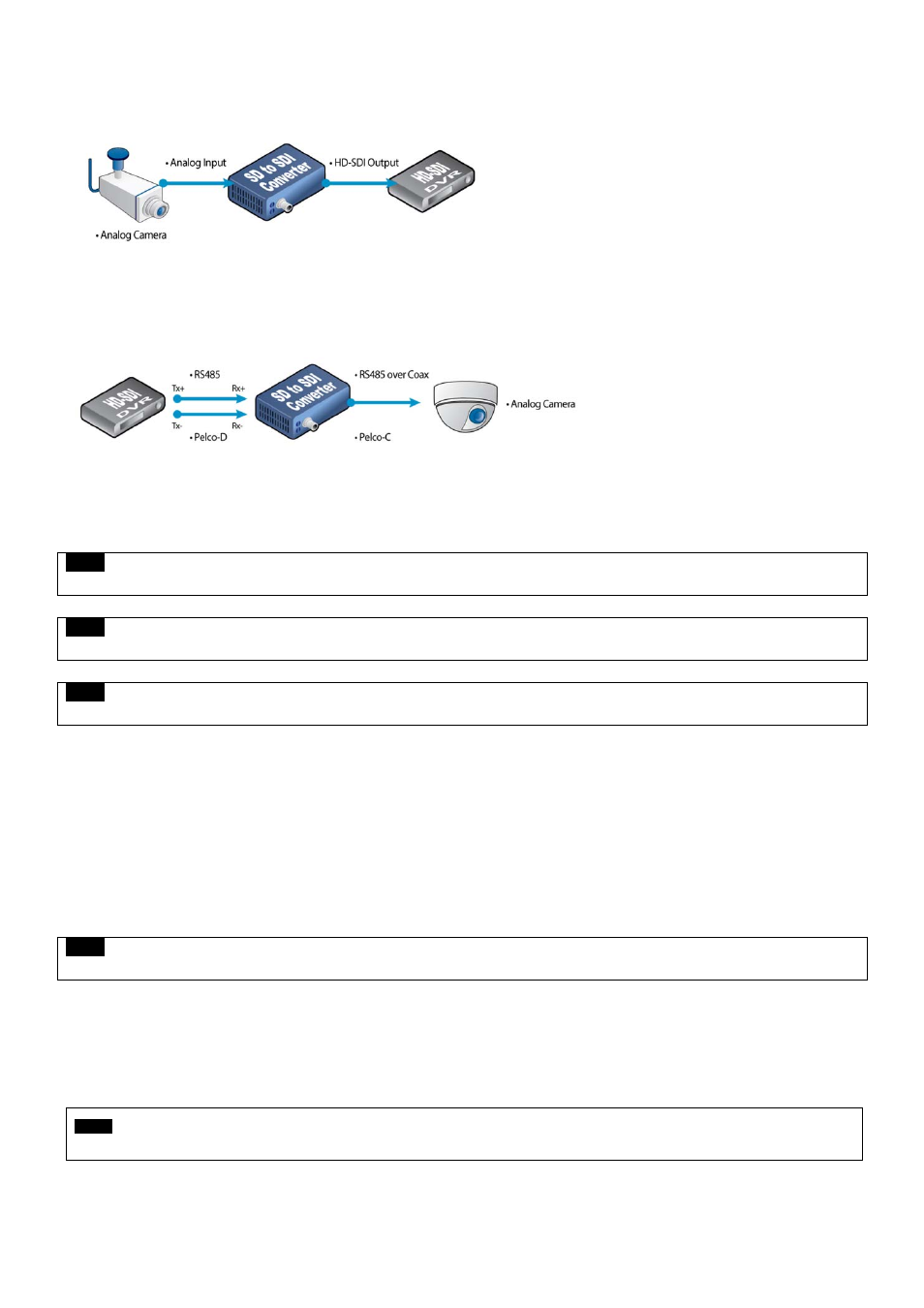

13.3.7.1 1 In / 1 Out Analog to HD-SDI Connection
 Connect a ‘VIDEO OUT’ of analog device to ‘VIDEO IN’ of HSC 2110 using 75ohm coaxial cable.
 Connect a ‘HD-SDI OUT’ of HSC 2110 to ‘HD-SDI IN’ of the HD-SDI DVR using 75ohm coaxial cable.
13.3.7.2 RS-485 Connection
 Connect ‘Rx +/-’ of the HD-SDI DVR or Keyboard Controller to ‘Tx +/-’ of HSC 2110.
 Connect ‘VIDEO IN’ of HSC 2110 to ‘VIDEO OUT’ of analog PTZ camera using 75ohm coaxial cable.
NOTE
This function is ONLY supported with PTZ camera which supports RS-485 over coax.
NOTE
Please refer to Product Manual 4.4.2 Camera / PTZ for more information.
NOTE
Only support Camera ID 1 in Camera / PTZ Menu.
13.3.7.3 Power Supply Connection
 Plug the power supply adapter (DC 12V, 3.33A) which is included in this product to ’DC12V’ connector and plug another side
to power source and Input voltage is a free volt (100 VAC ~ 240 VAC).
13.3.8 PTZ Control
 User can control PTZ camera via DVR when connection between DVR, HSC2110 and Camera are properly done.
 For detailed information on Camera/PTZ setup, please refer to Product Manual 4.4.2 Camera / PTZ.
NOTE
This function is ONLY supported with PTZ camera which supports RS-485 over coax.
13.3.9 Cable
 75 ohm coaxial cable
 RS-485 connection cable.
NOTE
The cable above is not included in the package.
