207
13.3 HSC2110
13.3.1 Introduction
 HSC 2110 is video signal converter between SD to SDI. It is 1 In / 1 Out SD to SDI signal converter which will convert one
analog signal to one HD-SDI signal.
13.3.2 Features
 Convert 1CH SD to 1CH HD-SDI
 NTSC/PAL Input Signal Auto Detection
 Output Signal Format 1080p 30
 Vertical Frequency Auto-Track
 PTZ control with Pelco C supporting PTZ camera
 Free Voltage 12VDC, 1A
 Compact Size & Light Weight
13.3.3 Technical Specification
Model HSC 2110
Input Signal
Analog Input 75Ω, 1Vp-p/BNC-F, 1CH
NTSC or PAL (Auto Detection)
Output Signal HD-SDI SMPTE 292M
Output Format 1080p 30
Input Return Loss (BNC) >-15dB, 270 Mb
Output Return Loss (BNC) >-15dB, 1.5 Gb
Input Impedance (BNC) 75 Ohms +/- 1%
Output Impedance (BNC) 75 Ohms +/- 1%
Power Consumption Free Voltage 12VDC, 1A
Dimension 83.5mm x 31.5mm x 86.9mm
HD-SDI Connector BNC Female
13.3.4 Unpacking
 This equipment is an electronic appliance, so it should be handled with special care.
13.3.5 Service
 If there is any problem in the product, please refer servicing to a supplier or a distributor with qualified service personnel.

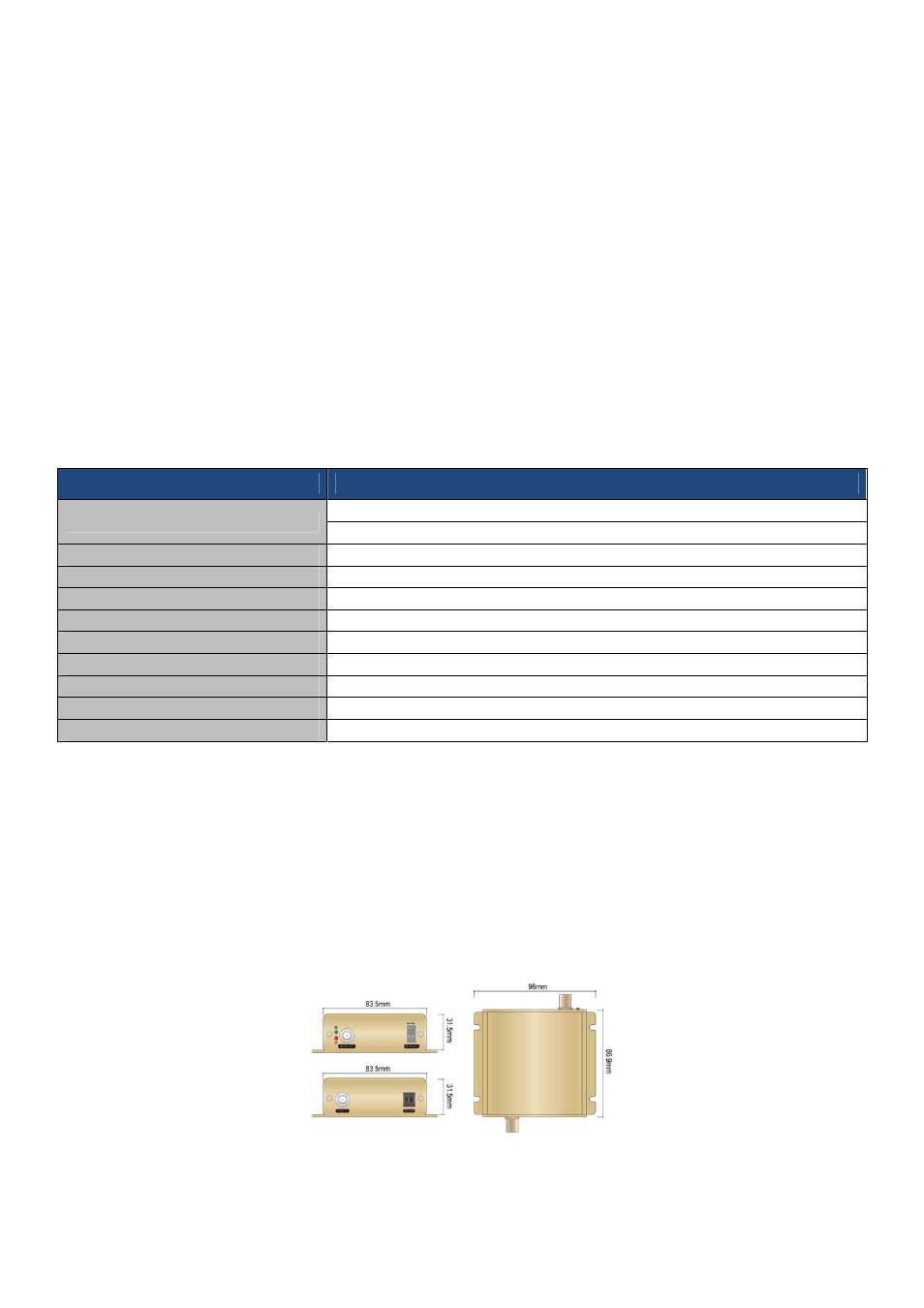

13.3.6 System Dimension Diagram
