Page 3 of 16 2475DA2, 2442-422, 2442-522 Rev: 1/21/2014 8:31 AM

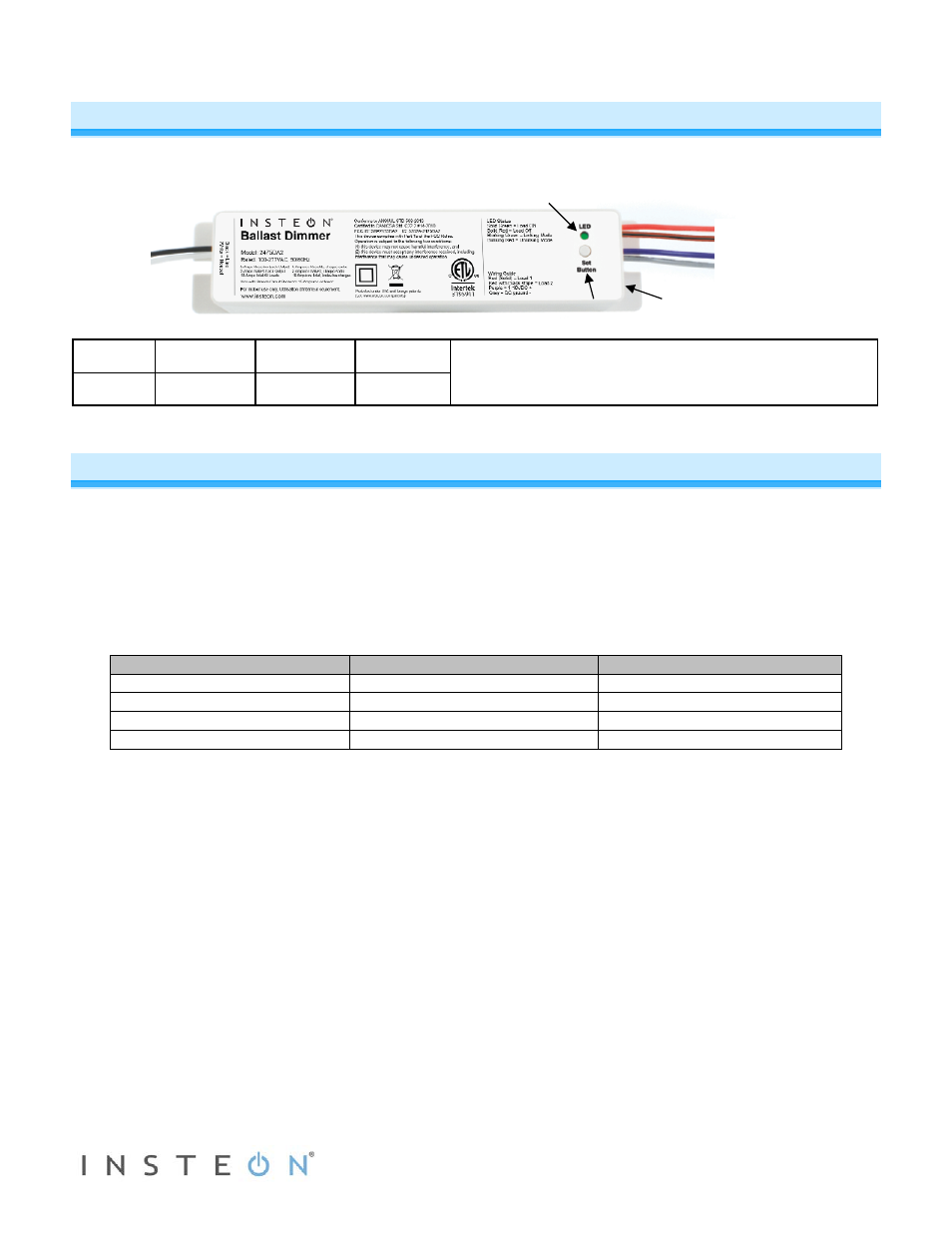

About Ballast Dimmer
This in-line ballast control module supports two different operational modes: dimmer and dual-relay. For use in new construction
or retrofit (inside or outside the fixture) where saving energy is a priority.
RJ-10 Mini-modular jack pin-outs:
Pin 4
(Left side)
Pin 3 Pin 2 Pin 1
Group 1: triggers when switch between pin 3 & 4 is closed
Group 2: triggers when switch between pin 3 & 4 is opened
Group 3: triggers when switch between pin 2 & 4 is closed
Group 4: triggers when switch between pin 2 & 4 is opened
Ground Group 1 - 2 Group 3-4 12-15VDC
Features and Benefits
• Controls dimmable ballasts with 0-10VDC input
• Dual-relay load output offers control of two non-dimmable ballasts up to 5A each
• Supports 100VAC to 277VAC
• 50/60Hz (auto-detect) for international compatibility
• Beeper for setup ease
• All settings stored in stable memory, even through power outages
• Two year warranty
In the Box Tools Needed Optional Accessories
Ballast Dimmer Slotted screwdriver Keypad Dimmer
Quick Start Guide Phillips screwdriver Dimmer Switch
Mounting Screws Wire cutter/stripper INSTEON Hub
Two extra INSTEON ID labels Voltage meter Mini Remote
Line
(black)
Neutral
(white)
Set button
Status LED
Load 2
Load 1
0-10VDC +
DC ground
RJ-10 jack
