In-LineLinc Dimmer Dual-Band
Congratulations on your purchase of the elegant, high-quality In-LineLinc Dimmer Dual-Band. In-LineLinc
Dimmer installs in-line to provide INSTEON control of individual dimmable lighting fixtures. Additionally,
In-LineLinc Dimmer eliminates the need for a conventional light switch, reducing the “switch sprawl”
common to automation projects. You can also use In-LineLinc Dimmer for INSTEON signal repeating and
phase bridging (like an Access Point, #2443). In-LineLinc Dimmer supports voltages from 100-277V,
50/60Hz and loads up to 400W, making it the perfect energy-saving, wireless controller.
Features and Benefits
•
Once installed, INSTEON setup is easy
•
Controls incandescent loads up to 400W
•
Supports up to 400 scene memberships
•
Shows INSTEON setup mode activity with beeper and dual-color Status LED
•
Communicates simultaneously over both radio frequency (RF) and the powerline
•
Acts as an Access Point for RF-only INSTEON devices
•
Stores setup state in non-volatile memory so settings aren’t lost during power outages
•
Wires into standard junction boxes (requires a NEUTRAL connection)
•
Two-year warranty
What’s in the Box?
•
In-LineLinc Dimmer Dual-Band
•
Quick Start Guide
•
Four (4) wire nuts

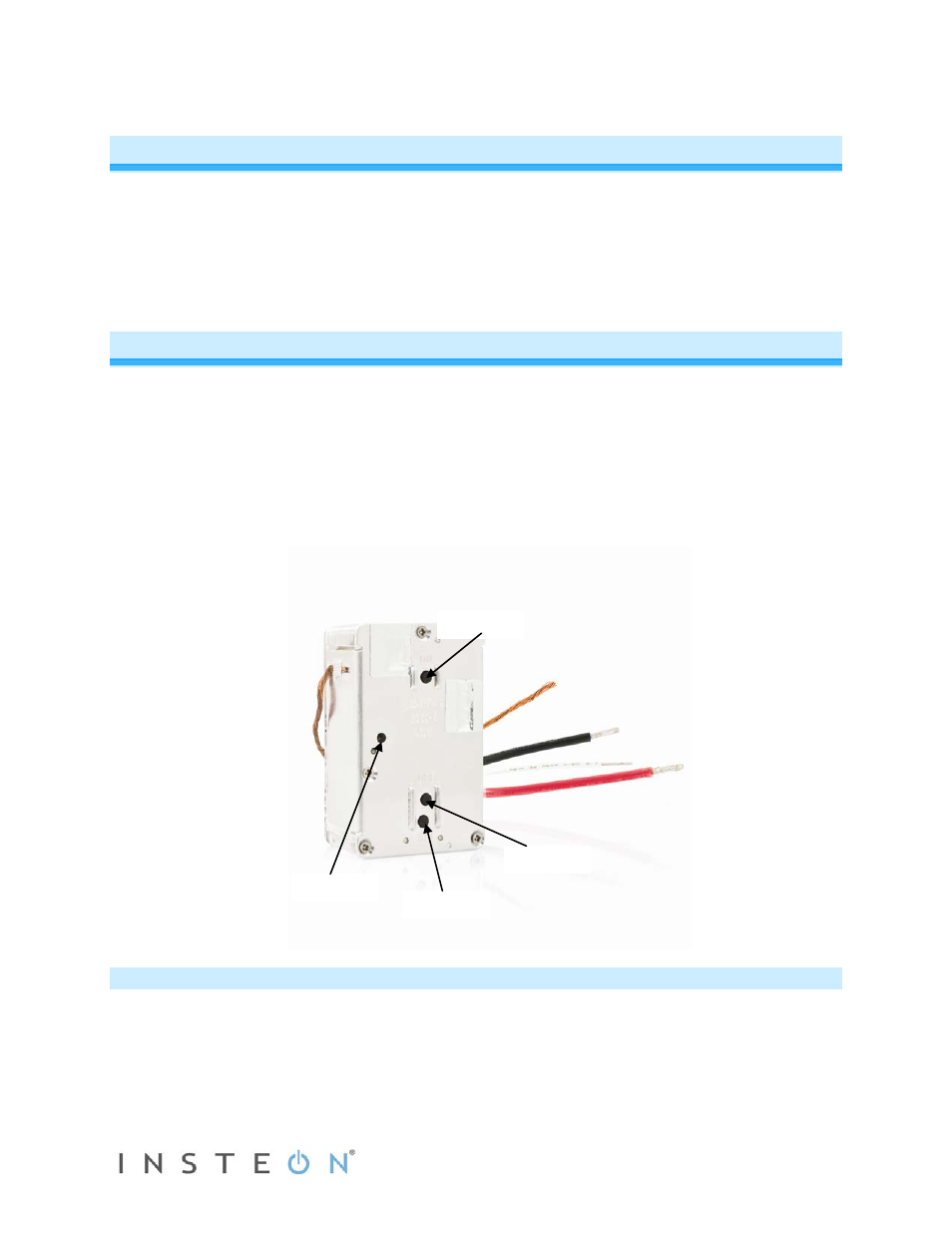

Status LED
Set button
ON button
OFF button
