About SwitchLinc 2-Wire Dimmer (RF)
Features and Benefits
• No Neutral wire required
• Simple 2-wire connection replaces any wall switch
• Controls incandescent lamps between 25W and 600W
• Beeper and dual-color LED for easy setup
• 32 brightness levels from 3% to 100%
• 32 ramp rates from 0.1 second to 9 seconds (manual setup) or up to 8 minutes (software setup)
• 9-level LED bar shows brightness of lights
• Status LED acts as a gentle nightlight when switch is off
• Non-volatile memory retains all settings through power outages
• Optional kit swaps out white LED pipes with green, blue, amber or red LEDs
• Optional kit swaps out white paddle and trim frame with ivory, almond, black, brown or gray
• Two-year warranty

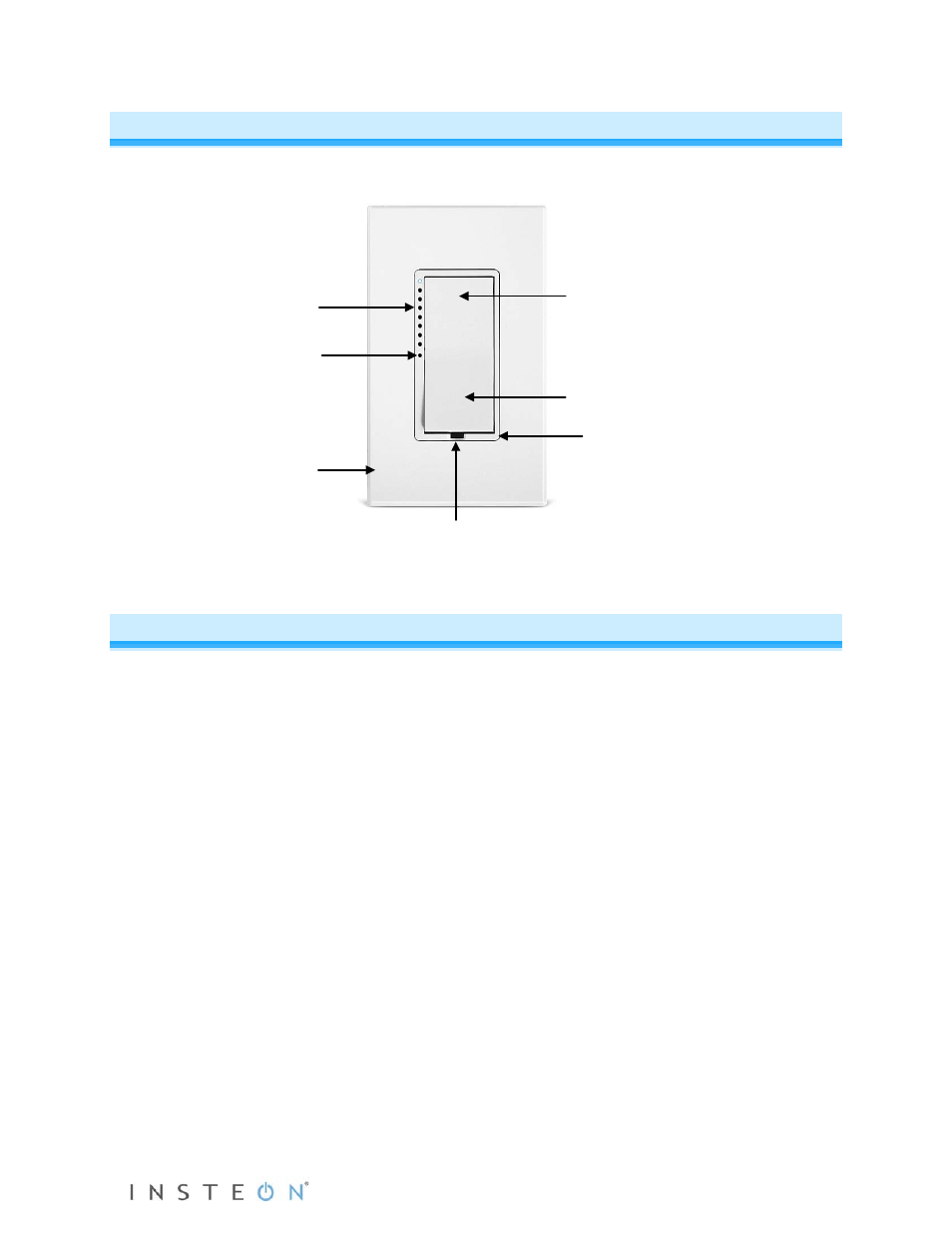

Paddle top
(ON/brighten)
Paddle bottom
(OFF/dim)
Set button (push)
Air gap (pull)
LED bar
brightness
indicator
Trim frame
Wallplate
(sold separately)
OFF indicator
and programming
mode LED
