Installation
3.5 Connecting/Wiring the sc Sensor
DANGER
Explosion hazard. Do not connect or disconnect electrical
components or circuits to the equipment unless power
has been switched off or the area is known to be
non-hazardous.
The sc60 Controller only works with the following sensors:
• AD 1200 sc pH Combination Gateway
• 1200-S sc pH Sensor
• pHD-S sc Differential pH Sensor
• ADpHD sc Differential pH Gateway
• AD3400 sc Contacting Conductivity Gateway
• AD3700 sc Inductive Conductivity Gateway
• 3798-S sc Inductive Conductivity Sensor
• 5740 sc Dissolved Oxygen Sensor
• 8362 sc
Table 4: Output Connections at Terminal Block J6
Recorder Wires Circuit Board Position
Output 2 + 1
Output 2 – 2
Shield 3
Output 1 + 4
Output 1 – 5

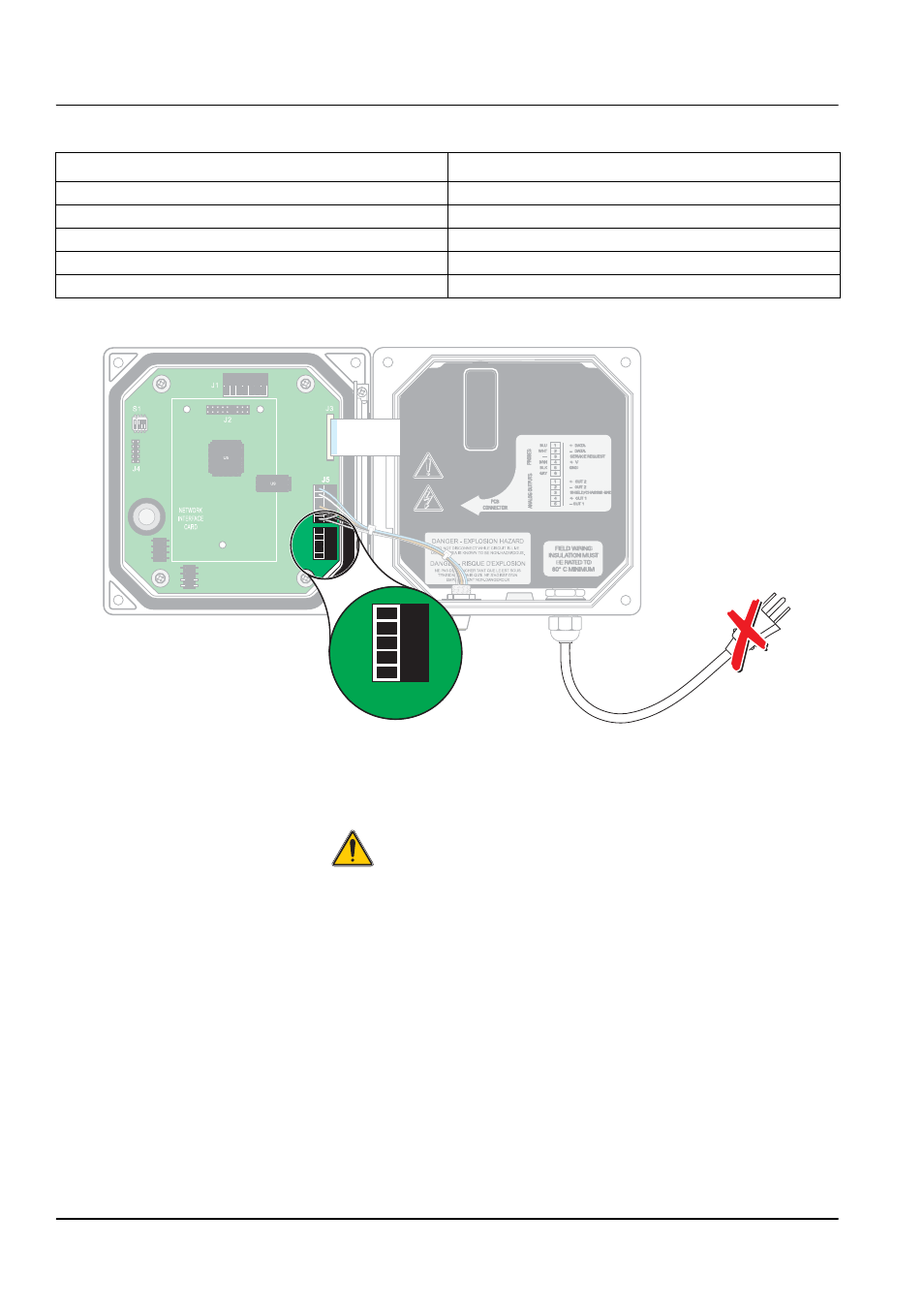

Figure 16 Analog Output Connections
