Installation/Operation Supplement
25 70278501 (EN)

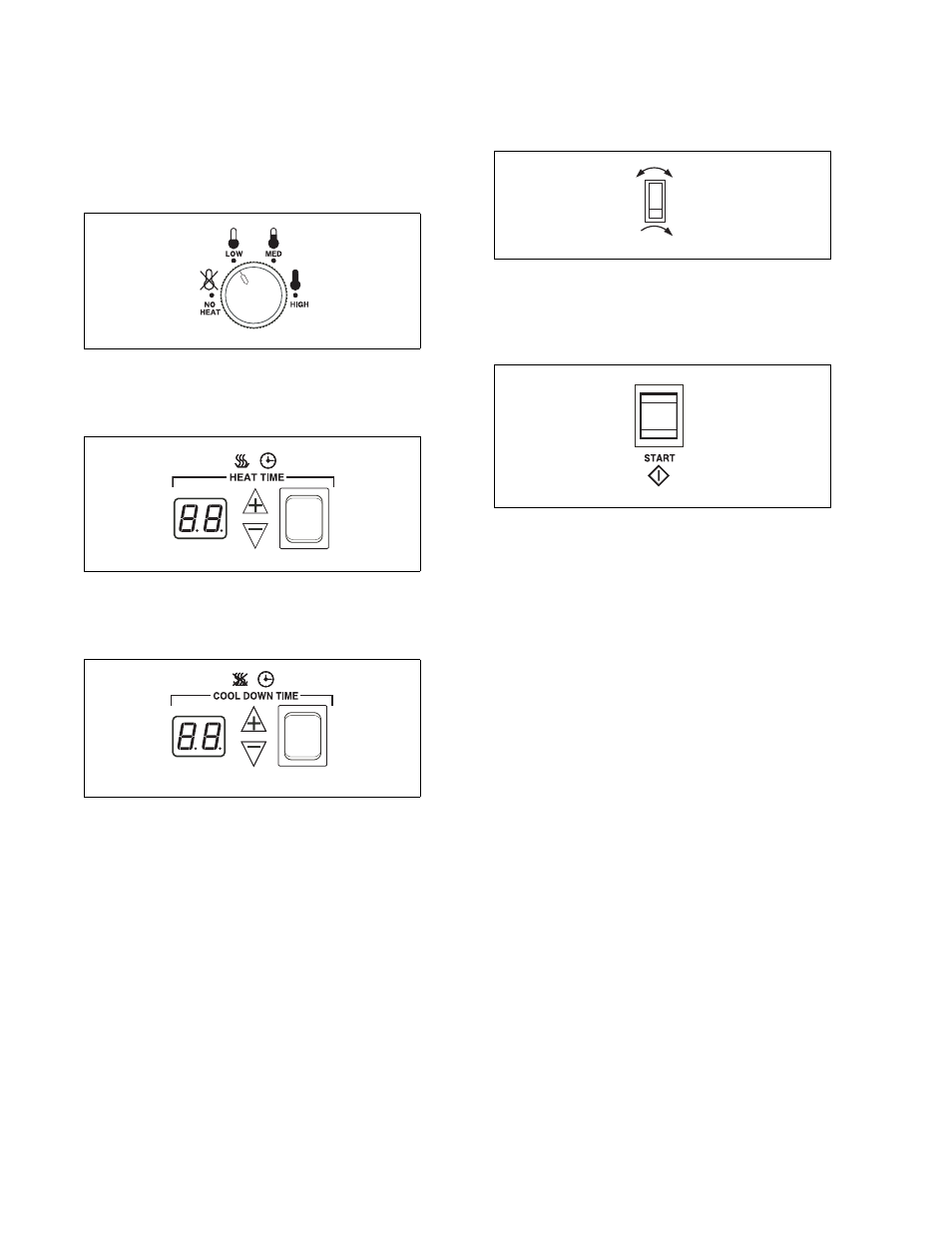

Dual Digital Timer Control
QT and RQ Control Suffixes
1. Select HIGH, MED, LOW or NO HEAT by
turning the temperature knob.
2. Set the HEAT TIME for the number of minutes
(from 0-60) desired.
3. Set the COOL DOWN TIME for the number of
minutes (from 0-15) desired.
4. Select reversing or nonreversing cylinder rotation
setting, if applicable.
5. Press and release START button to start tumbler.
Display will show minutes remaining before end
of cycle.
IMPORTANT: To stop the tumbler at any time
during the cycle, OPEN DOOR. If the loading door
or lint panel door is opened during the cycle, the
heating system will shut off and the motor will stop.
To restart the cycle, both doors must be closed and
the START button must be pressed in.
6. When the cycle is complete, open door and
remove the laundry.
TMB2147N
Figure 13
TMB2148N
Figure 14
TMB2149N
Figure 15
TMB2145N
Figure 16
TMB2150N
Figure 17
