Installation/Operation Supplement
70278501 (EN) 8

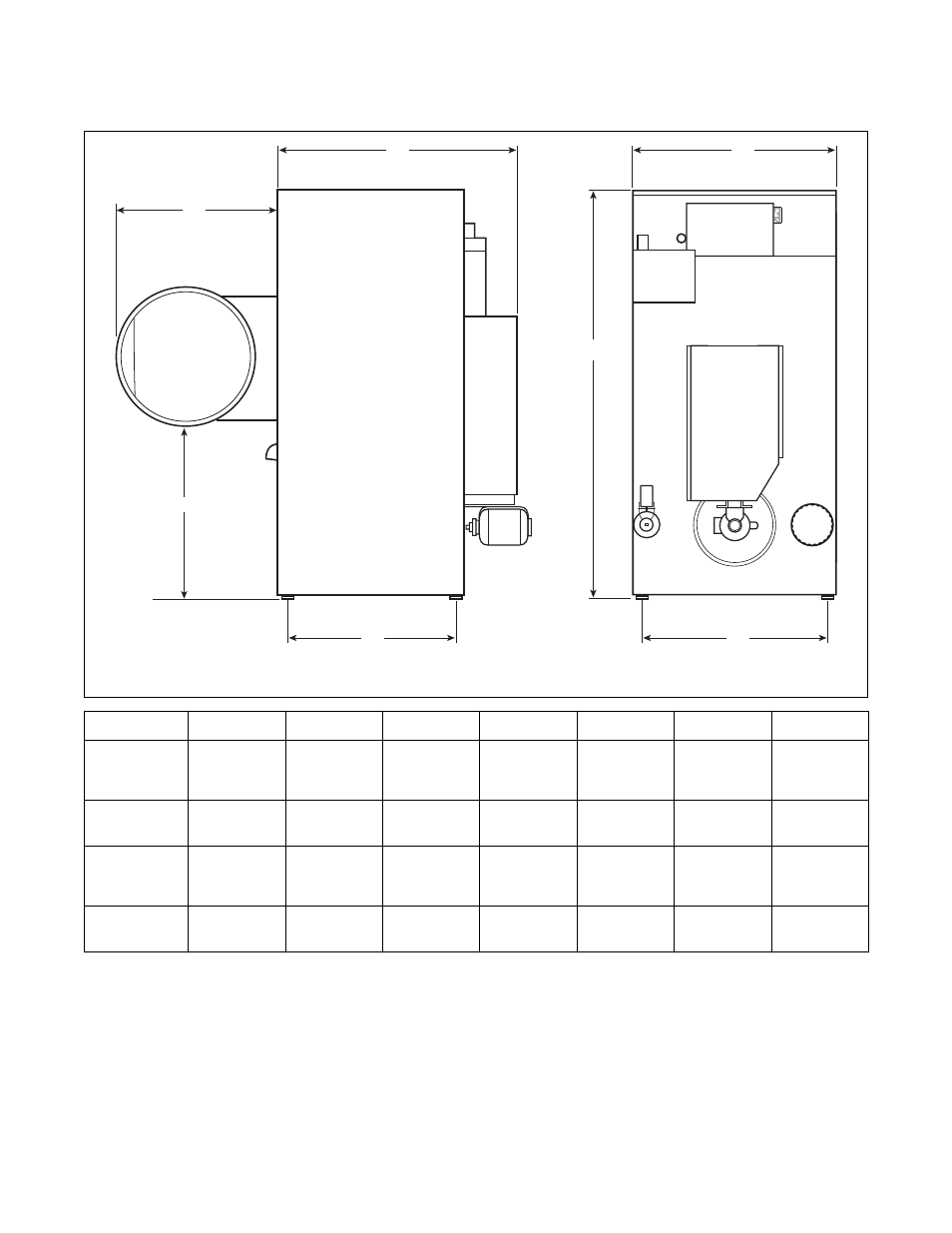

Cabinet Dimensions
TMB2213N
TMB2213N
C
B
E
D
A
G F
Models A B C D E F G
050
Gas and
Electric
781 mm
(30.75 in.)
717 mm
(28.25 in.)
1194 mm
(47 in.)
1946 mm
(76.625 in.)
981 mm
(38.625 in.)
838 mm
(33 in.)
749 mm
(29.5 in.)
050
Steam
781 mm
(30.75 in.)
717 mm
(28.25 in.)
1194 mm
(47 in.)
2032 mm
(80 in.)
981 mm
(38.625 in.)
838 mm
(33 in.)
749 mm
(29.5 in.)
075
Gas and
Electric
781 mm
(30.75 in.)
717 mm
(28.25 in.)
1346 mm
(53 in.)
1946 mm
(76.625 in.)
981 mm
(38.625 in.)
838 mm
(33 in.)
902 mm
(35.5 in.)
075
Steam
781 mm
(30.75 in.)
717 mm
(28.25 in.)
1346 mm
(53 in.)
2032 mm
(80 in.)
981 mm
(38.625 in.)
838 mm
(33 in.)
902 mm
(35.5 in.)
