Installation/Operation Supplement
21 70278501 (EN)

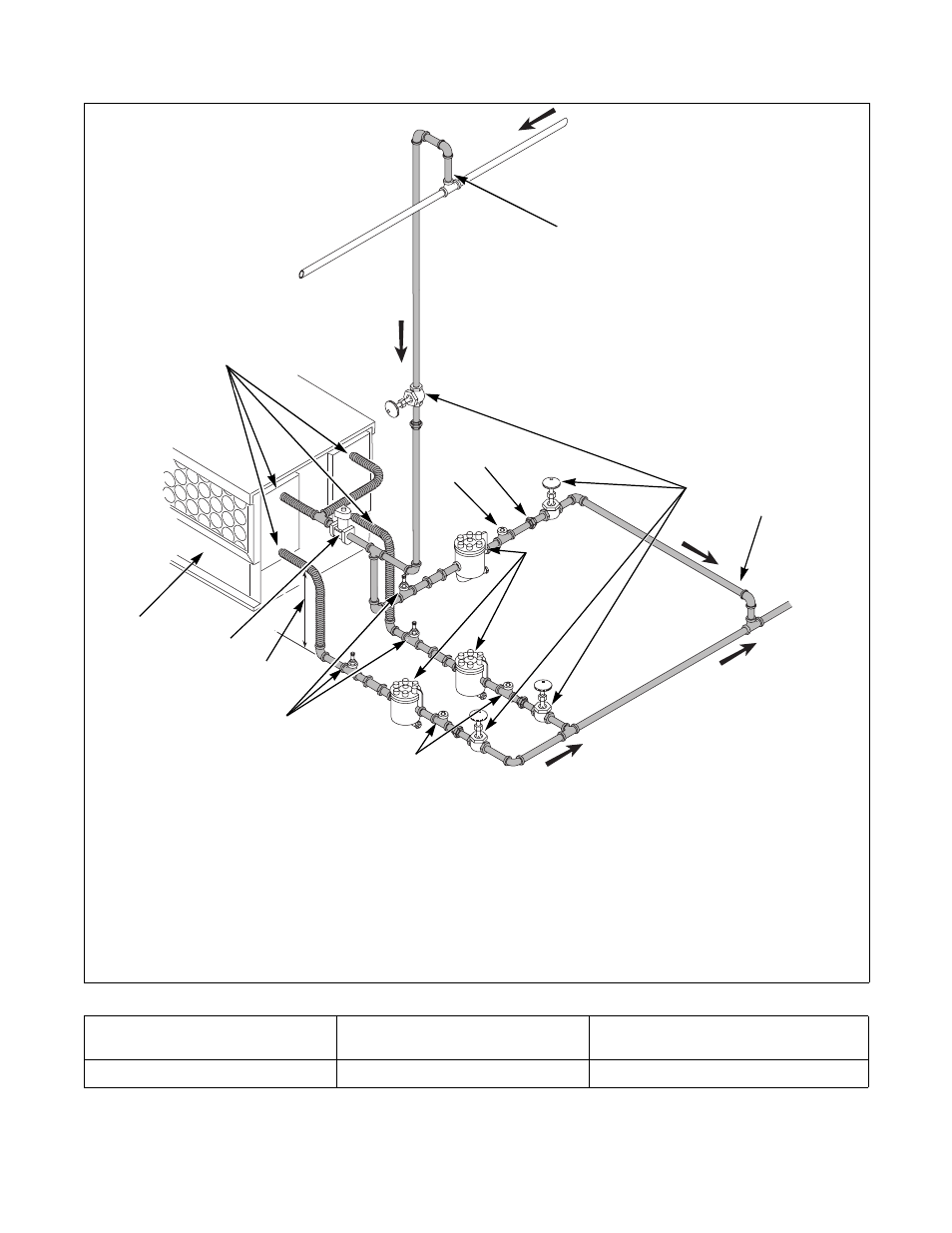

Figure 3
TMB2014N
NOTE: Refer to Table 2 for sizing of steam lines. Piping must also be sized accordingly for length of runs,
and number of elbows.
1 Supply 8 457 mm (18 in.) Drop
2 305 mm (12 in.) Riser 9 Solenoid Valve (Supplied with machine)
3 Shut-Off Valve 10 Steam Bonnet
4 Condensate Return Line from Supply Line 11 Flexible Line
5 Return 12 Union
6 Check Valve 13 Trap with Built-In Strainer
7 Vacuum Breaker (Optional)
TMB2014N
2
12
6
3
5
1
13
10
9
8
6
7
4
11
Steam Pressure
bar (PSI)
Minimum Pipe Diameter
Steam Trap Size*
(Pounds Condensate/Hour)
5.3 - 6.9 (80-100) 3/4 in. NPT 160
* Based on 100 PSI.
Table 2
