FIGURE 8

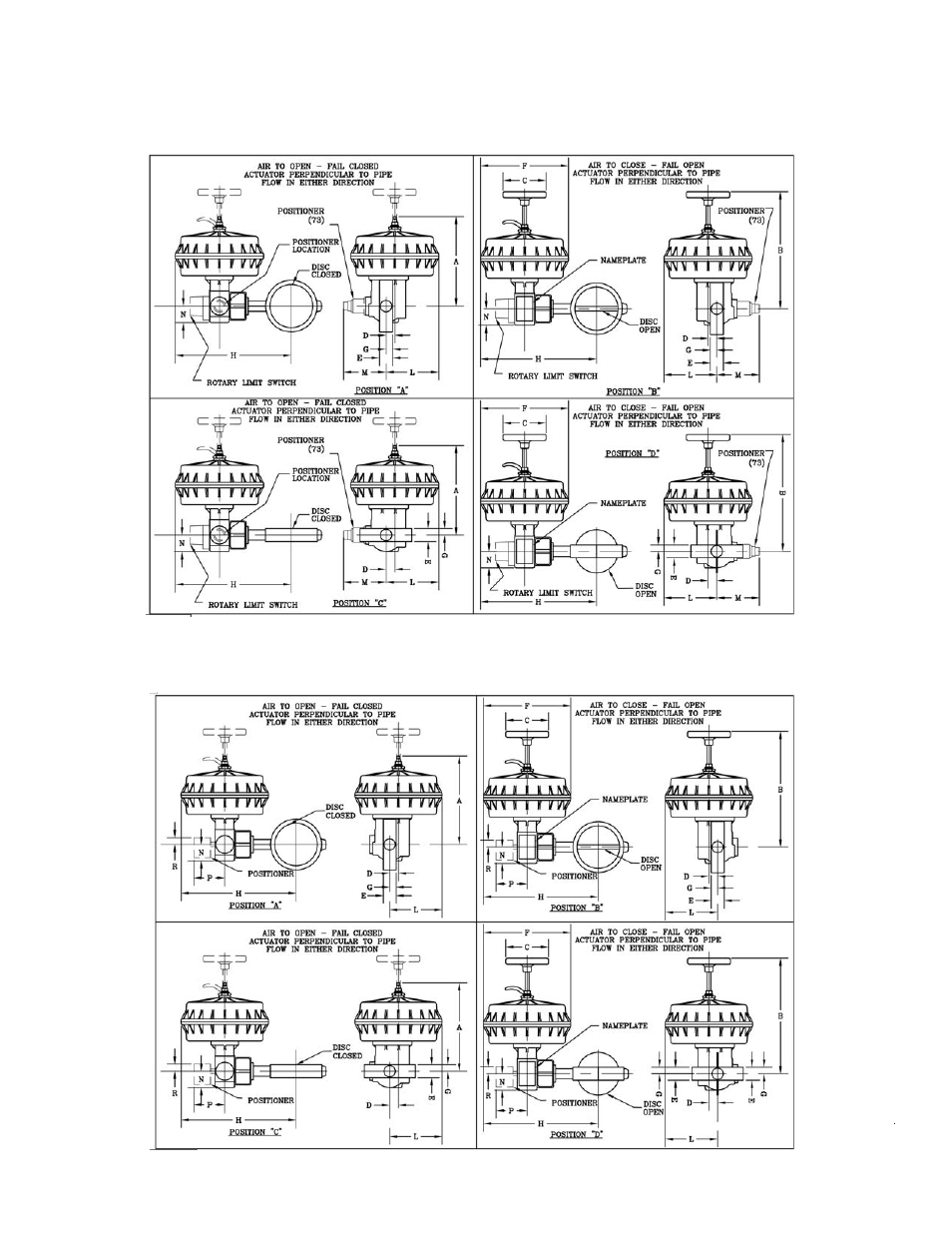

PREMIER ACTUATOR MOUNTING POSITIONS – 73
Position "A" is standard for fail closed action. Position "B" is stan dard for fail open action.
Po si tion "C" and "D" covers ver ti cal piping.
FIGURE 9
PREMIER ACTUATOR MOUNTING POSITIONS – 9540R/991/PS2
Position "A" is standard for fail closed action. Position "B" is stan dard for fail open action.
Po si tion "C" and "D" covers ver ti cal piping.
Note: All basic valve dimensions are printed in the Premier-TB
