IOM-48
8

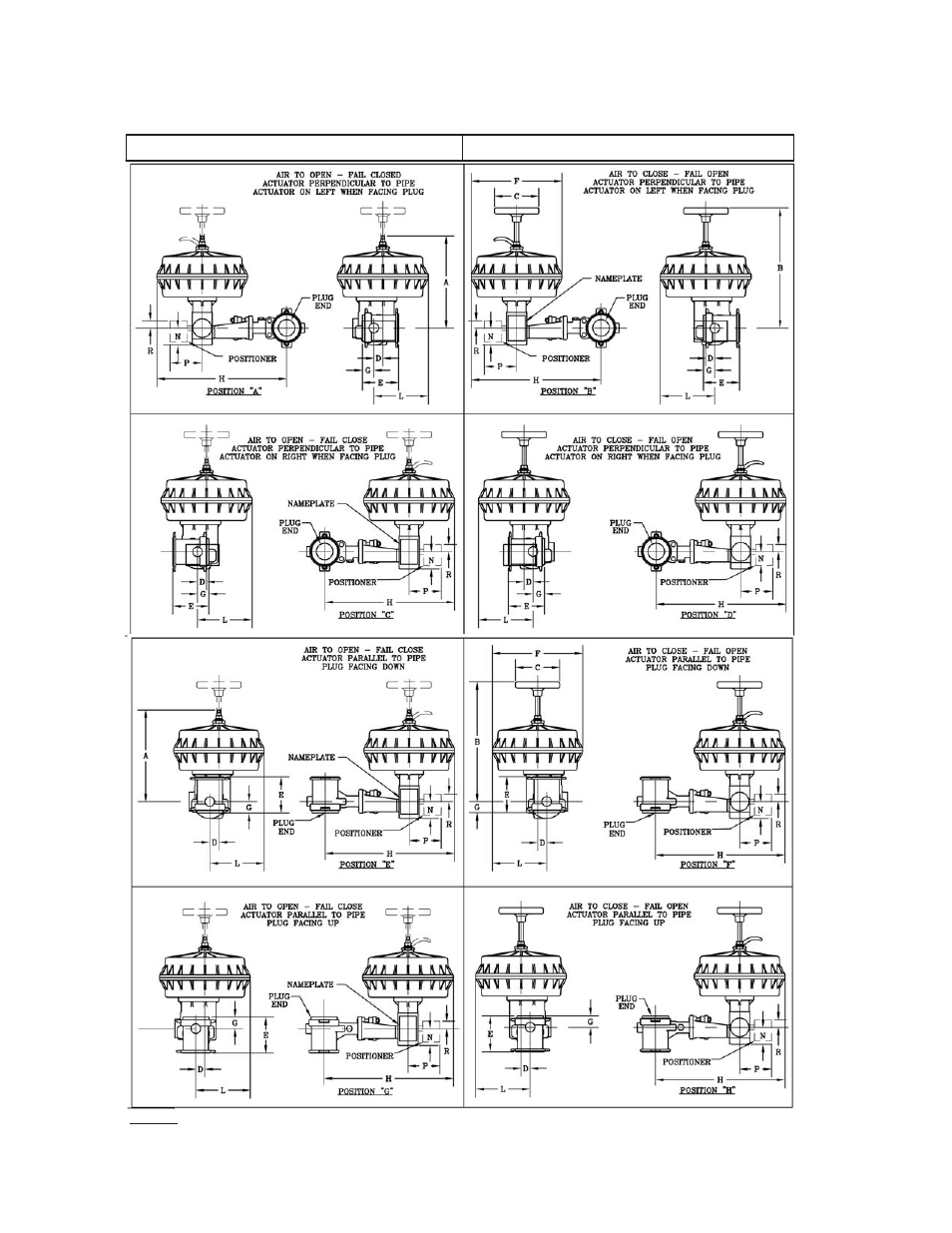

FIGURE 7:
ORIENTATION – RANGER QCT ACTUATOR MOUNTING POSITIONS
WITH MODELS 9540R P/P or 991 or PS2 I/P POSITIONERS
NOTES: 1. Flangeless valve design indicated; integral fl anged units follow same orientation.
2. Dimension tables are printed in the Ranger-TB.
REVERSE ACTION
DIRECT ACTION
