cap. < 2 > pag. < 14 >
ITALIANO
Software - SYSTEM CONFIGURATION
Cap 2
For each entrance, select an output which this
digital device will act on; the related box must
also be ticked if the contact of the device is NC
type (normally closed)
All the supplementary command and
control devices must be programmed
in the configuration dialog
of the digital Entrances (INGR), (for
instance safety buttons, sensitive
footboards, alarms etc.)
that will be connected to RBM84 and
act on any of the RBM84 and REM
outputs
N.B. There are also functions other than
the normal outputs
-Block
-Entry alarm
-Reset alarm
-Car-park entry
-Car-park exit.
The digital entrance/exit association is
independent of the physical position of the exit
on RBM84 or REM;
RBM84 -Software

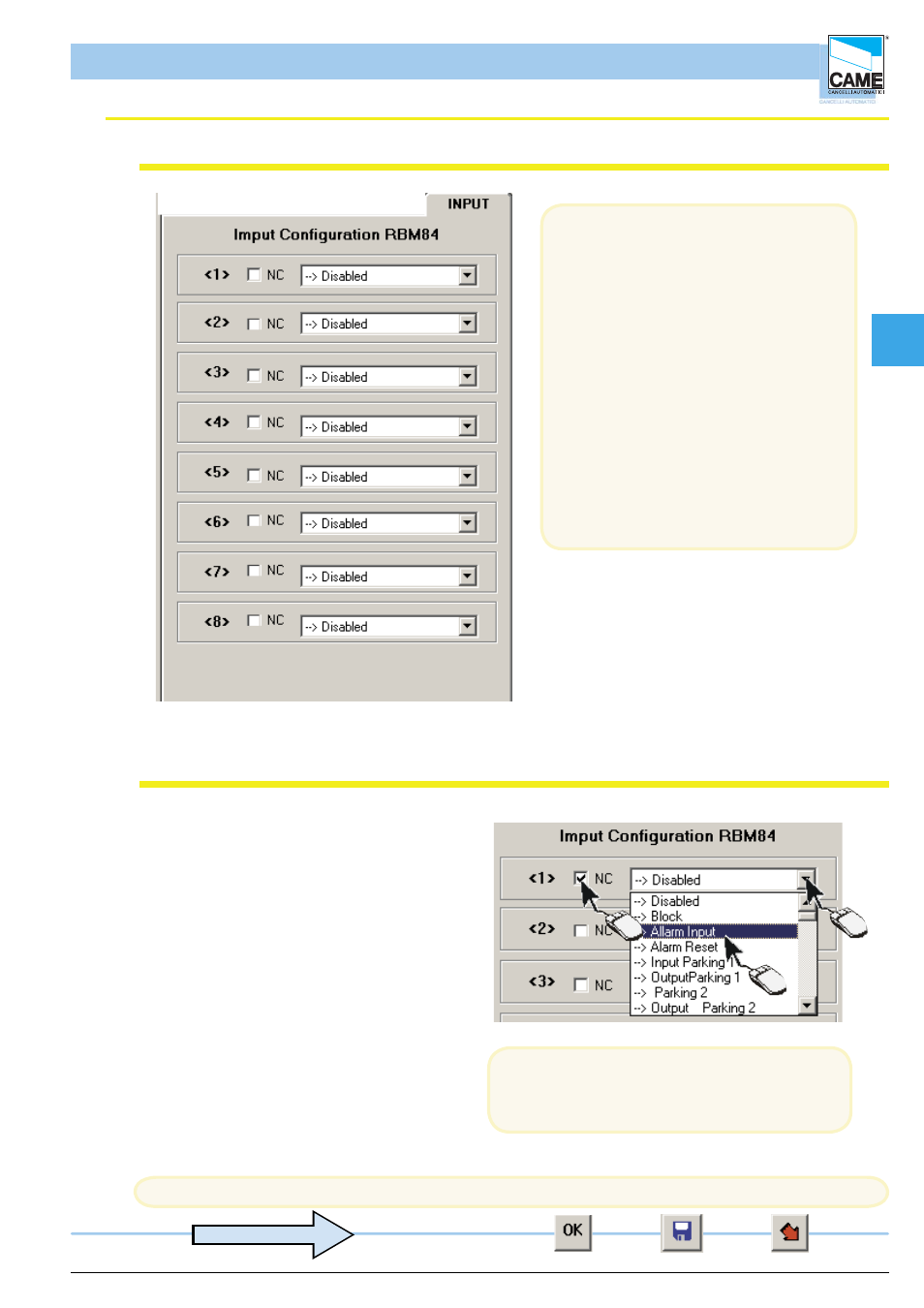

Confi gure the digital entrances connected to RBM84
Associate the digital devices to the exits
1- Select the entrance to set
2- For each entrance, assign an output
or device which this digital apparatus
will act on.
3- Tick the related box if the
device is NC type (normally closed)
1
2
3
to adjourn
Caution! at the end of every group of operations, you must update to make the changes effective
