5.0 MAINTENANCE
If motor will not run: Motor could become overheated due to
long repeated usage or severe strain. Allow motor to cool.
DANGER: To avoid possible injury, always unplug the
bender power cord before attempting maintenance work.
For any repair other than above, contact an authorized GB
Technical Service Center.
6.0 ANGLE ADJUSTMENT
Two different type scales are mounted on the shoe outer rim.
One for
1 ⁄
2
" thru 2" IMC and Rigid, the other for EMT 1 ⁄
2
" thru 2"

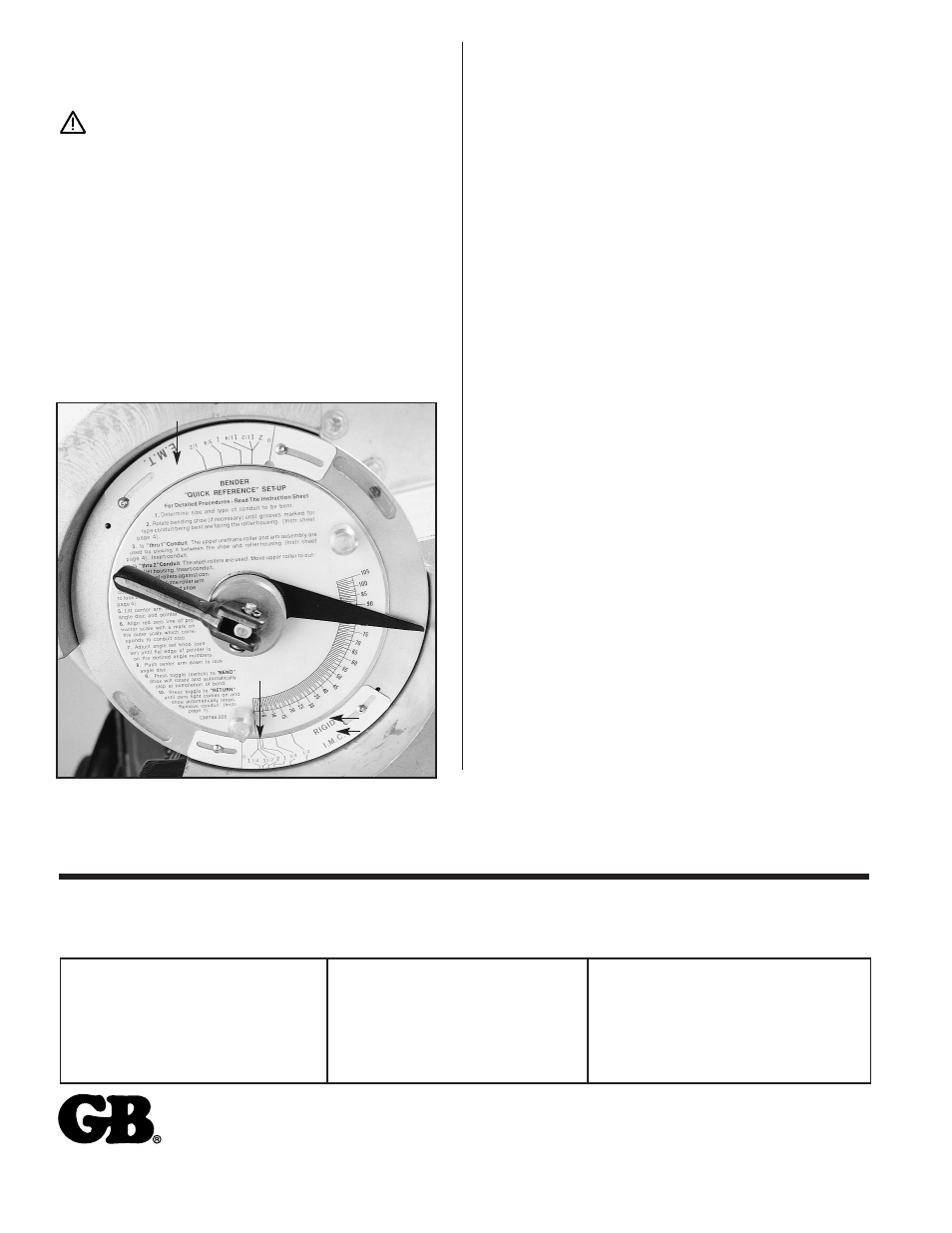

See Figure 12.
Each scale indicator is adjustable to compensate for over long
or short bends which may be due to differences in conduit
characteristics or other variations.
Bends which are too long: Loosen the size scale (for type
material being bent) mounting screws. Slide the scale clockwise
as many degrees as the overbend (if bend is 5° over, move
indicator 5° clockwise). The degree of movement is observed
by watching one of the size marks as it moves past the angle
disc scale. Tighten the mounting screws.
Bends which are too short: Loosen the size scale (for type
material being bent) mounting screws. Slide the scale
counterclockwise as many degrees as the bend is short (if
bend is 5° short move counterclockwise 5°). The degree
movement is observed by watching one of the size marks as it
moves past the angle disc scale. Tighten the mounting screws.
Note: Two
scales one
for rigid
and one
for IMC
Type Scale
Type Scale
WARRANTY: Gardner Bender warrants its product
against defects in workmanship and materials for 1
year from date of delivery to user. Chain is not
warranted. Warranty does not cover ordinary wear
and tear, abuse, misuse, overloading, altered
products or use of improper fluid. WARRANTY RETURN PROCEDURE: When question
of warranty claim arises, send the unit to the nearest GB
Authorized Service Center for inspection, transportation
prepaid. Furnish evidence of purchase date. If the claim
comes under the terms of our warranty the Authorized
Service Center will REPAIR OR REPLACE PARTS
AFFECTED and return the unit prepaid. PARTS AND SERVICE: For quality workmanship and
genuine Gardner Bender parts, select an Authorized
GB Service Center for your repair needs. Only
repairs performed by an Authorized Service Center
displaying the official GB Authorized sign are backed
with full factory warranty. Contact Gardner Bender
(414)352-4160 for the name of the nearest GB
Authorized Service Center.
REPAIR AND SERVICE INSTRUCTIONS: For repair service and parts contact your nearest Gardner Bender
Service Center. The Gardner Bender Service Center will provide complete and prompt service on all Gardner
Bender products.
