Divert module XBUT 45 DR, 90 DR, 45 DL and 90 DL

X85 Pallet

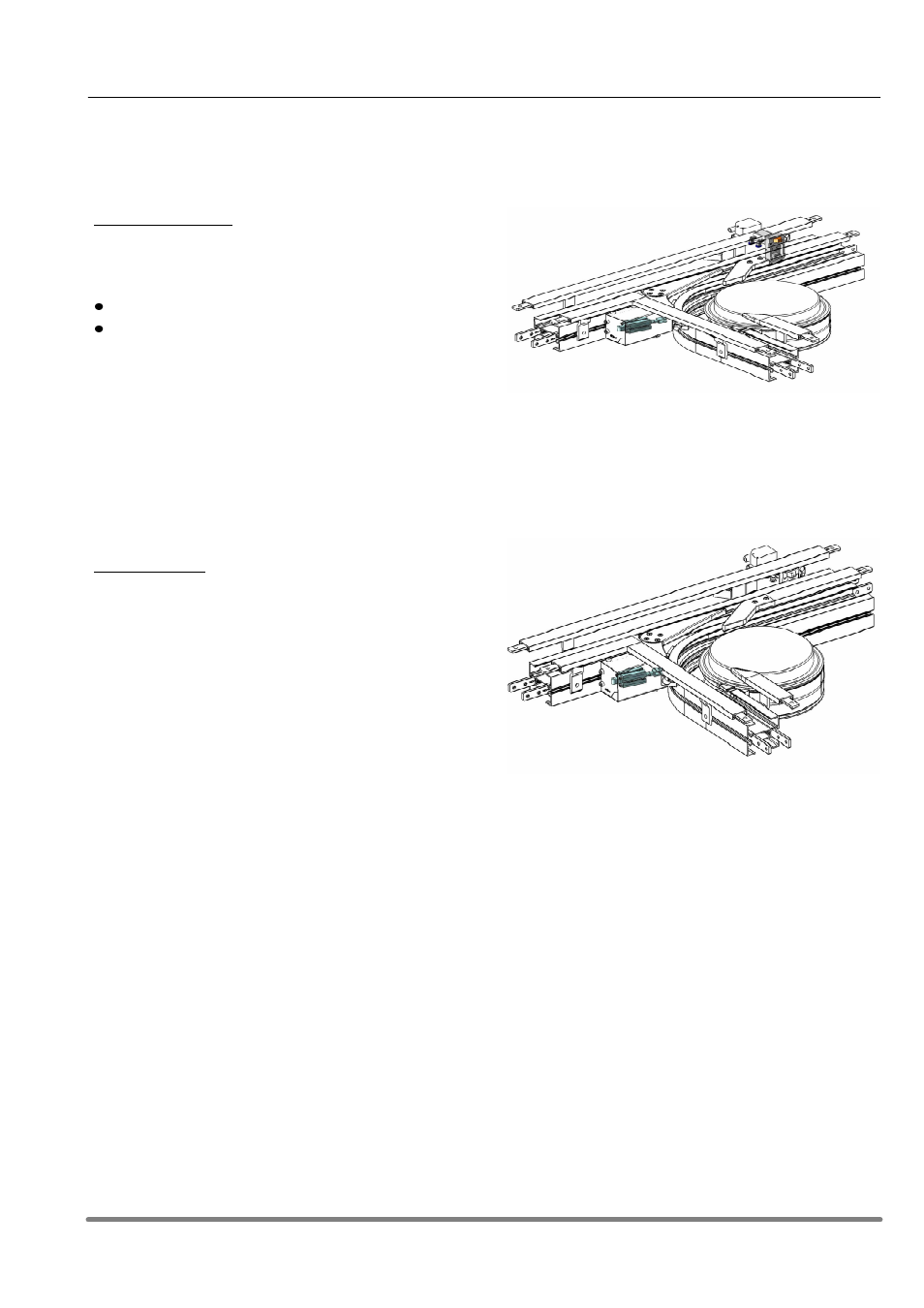

Cylinder details

Cylinder A1 ”Pre-stop”

Type: Single acting with two ports.

Function:

Pressurized: Releases the pallet flow

No pressure: Blocks the pallet flow

For safety reasons, the pallet stop is blocking the flow in
case of a pressure drop, preventing pallets from travelling
uncontrolled along the conveyor.

The stop should not re-block the flow while a pallet puck is
in a position where it could be clamped.

It is recommended to re-block the flow after each pallet.

Cylinder A1

Cylinder A2 ”Arm”

Type: Double acting

Function: Change the flow through the module.

Note 1: It is recommended that flow control valves are
used, for example Festo GR-QS-6 (193969).

Cylinder A2
