2 Technical bulletin 5620EN-1

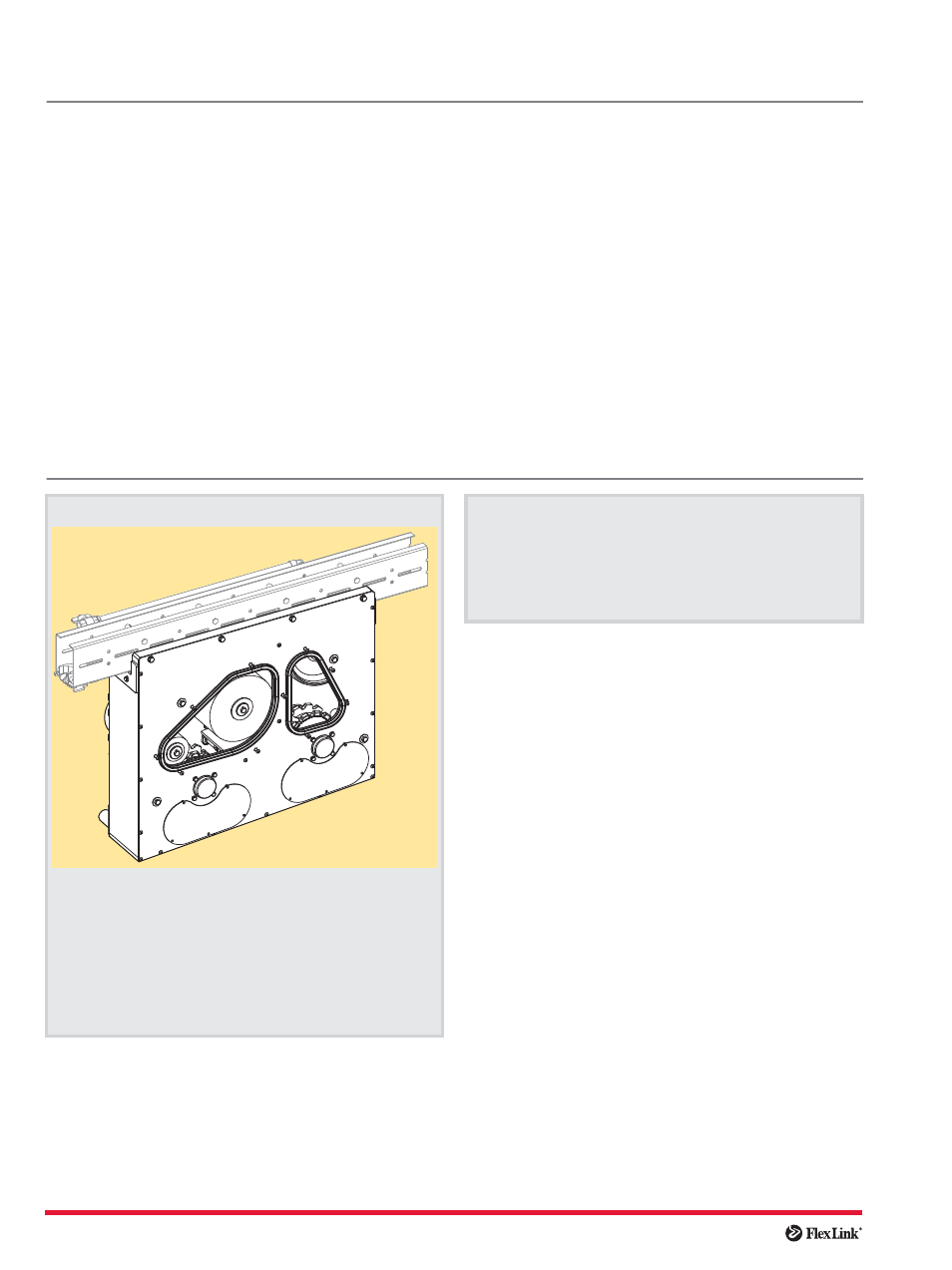

Chain washer and dryer unit
System information
The washer/dryer unit is available for aluminium con-
veyor systems XS, XL, X85, XH and XK, and stainless
systems XLX and X85X.
Technical specification
Minimum top of chain height ............. 700 mm
Maximum conveyor length ................. 3 m
Maximum conveyor speed ................. 50 m/min
Operating requirements
Water supply
Connection of water/cleaning system is made by G ½''
internal thread connection. Max/Min flow rate required is
11–13,5 l/min.
Air attachment
Connection of air system is made by G ½'' internal thread
connection. Air system requirements 6 Bar with a
flow rate of 200 m
3
/h.
Drainage/ Drying Vacuum
Vacuum attachment is made by
∅32 hose connection.
Vacuum requirements are 23,5 kPa minimum with a vac-
uum of 2×56 l/second.
Chain washer and dryer unit
Chain washer and dryer unit
Chain washer and dryer unit
Conveyor system XS
Conveyor system XL
Conveyor system XLX
Conveyor system X85
Conveyor system X85X
Conveyor system XH
Conveyor system XK 8042679
8042663
8042664
8042665
8042666
8042667
8042668
Note. 1 m long beam section
Spare parts
Air nozzle large
Air nozzle small
Spray nozzle
Brush
∅80
Brush
∅180
8043200
8042711
8042716
8042673
8042672
Note!
The chain washing unit cannot be used with an
enclosed or guided type of conveyor drive unit.
