- 6 -

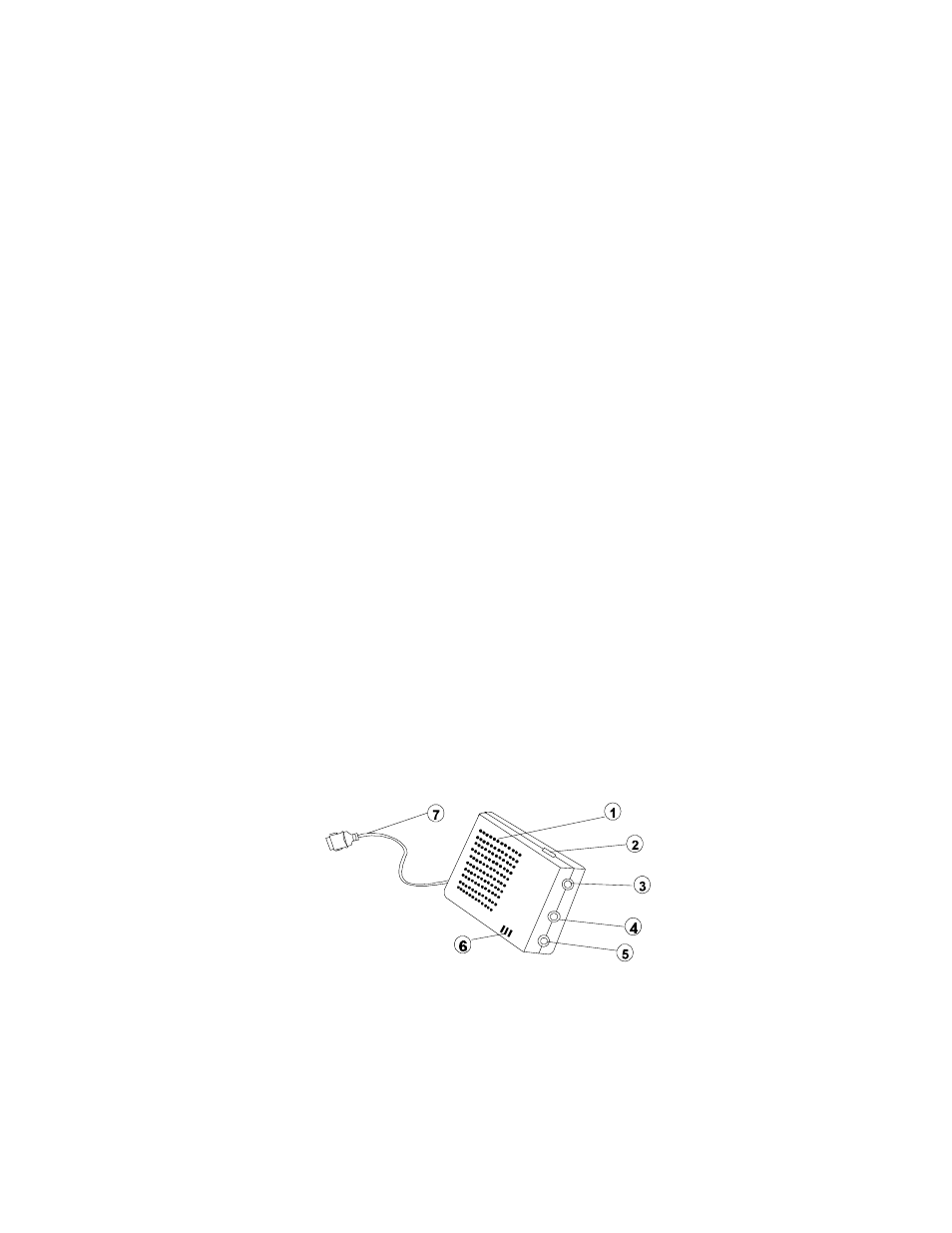

SOUND MODULES
• •
Built-in Speaker:
This built-in 28 mm speaker is a MONO sound speaker.
‚ ‚
Volume Control Knob:
This knob is used to adjust the volume of the built-in speaker and
the external headphone jack.
ƒ ƒ
External Headphone Jack:
This is used to connect to a headphone or a self-powered external
speaker with a standard 3.5 mm stereo plug. When using with an
external headphone or speaker, the built-in speaker will be
disabled.
„ „
External Microphone Jack:
This jack is used to connect to an external microphone with a
standard 3.5 mm plug. When using with an external microphone,
the built-in speaker will be disabled.
(Note: This jack is designed for condenser type microphones only.
Do not use a magnetic type microphone.)
… …
Stereo Line-in Jack:
This jack is used to connect with the another audio source. For
example, audio output from CD-ROM Drive when playing the CD
audio.
† †
Built-in Microphone
‡ ‡
Sound Module Cable:
This 15-pin cable connects to the PCMCIA interface card.
