CAMERA ADJUSTMENT CAMERA ADJUSTMENT
MOTION DET
MOTION DET OFF
DETECT SENSE 111
BLOCK DISP OFF
DETECT AREA 
MONITOR AREA 
RETURN
MOTION DET: OFF / ON. Turn on or off the motion detection.
Default is OFF
DETECT SENSE: 0-127 Sets the motion detection sensitivity level.
BLOCK DISP: ON/OFF: shows visual motion detection as block area.
DETECT AREA: Enters into separate screen to select blocked area

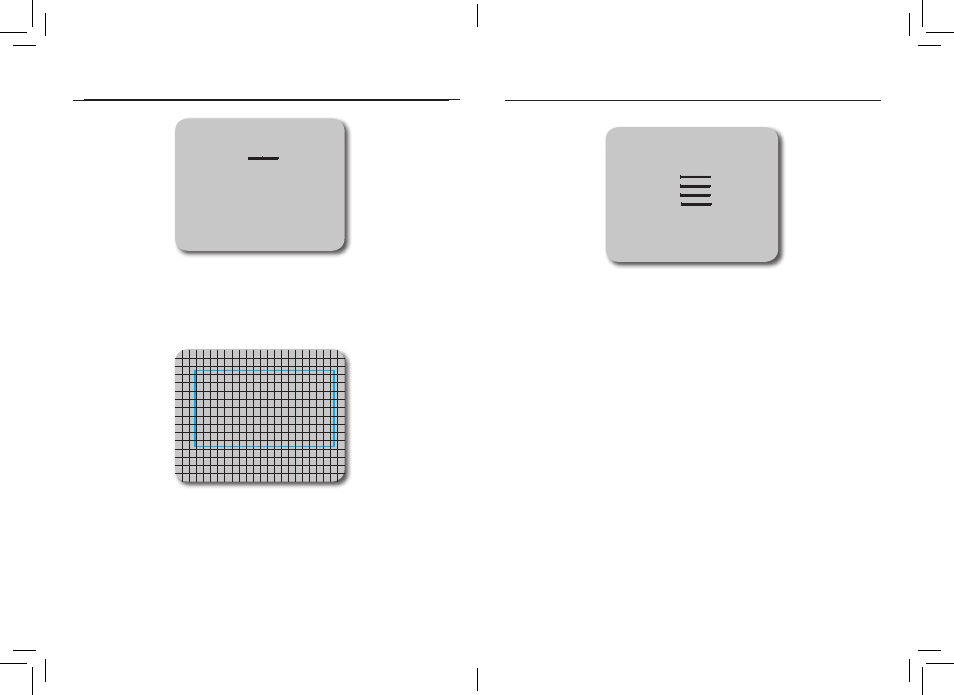

DETECT AREA
EXIT: HOLD ENTER
By default the entire area is enabled for detections, using the movement arrows
you move the 2x2 size block in 12 x 8 positions around the screen, press the enter
button will toggle this area to be withing the detection. Hold down the enter
button will exit this detection area settings.
MONITOR AREA : Enters screen into setup for Rectangle Monitor Area.
MONITOR AREA
AERA SEL 1 / 4
MODE OFF
TOP 000
BOTTOM 000
LEFT 000
RIGHT 000
RETURN
AREA SEL: 1/4, 2/4, 3/4, 4/4 Area number selected.
When enabled the box colour is as follow:
1 Pink, 2 Green, 3 Magenta, 4 Yellow
Overlapping areas the lower number takes priority.
MODE: OFF / ON. Master enable for the selected AREA number
TOP: 000-015 Moves top box area position
BOTTOM: 000-015 Move bottom box area position
LEFT: 000-023 Left side of box area position
RIGHT: 000-023 Right side of box area position.
Note: you can’t move top higher than bottom, and
left can’t be larger than right. Numbers will automatic
move when trying to move to higher position.
Monitor Area will keep the coloured box visually on the screen at all
times, and flash when motion activity occurs within the draw areas. This
works in combination with the set block areas in MOTION DET AREA.
