CAMERA ADJUSTMENT CAMERA ADJUSTMENT
OSD function joystick. Pressing down
on joystick acts as ENTER function.

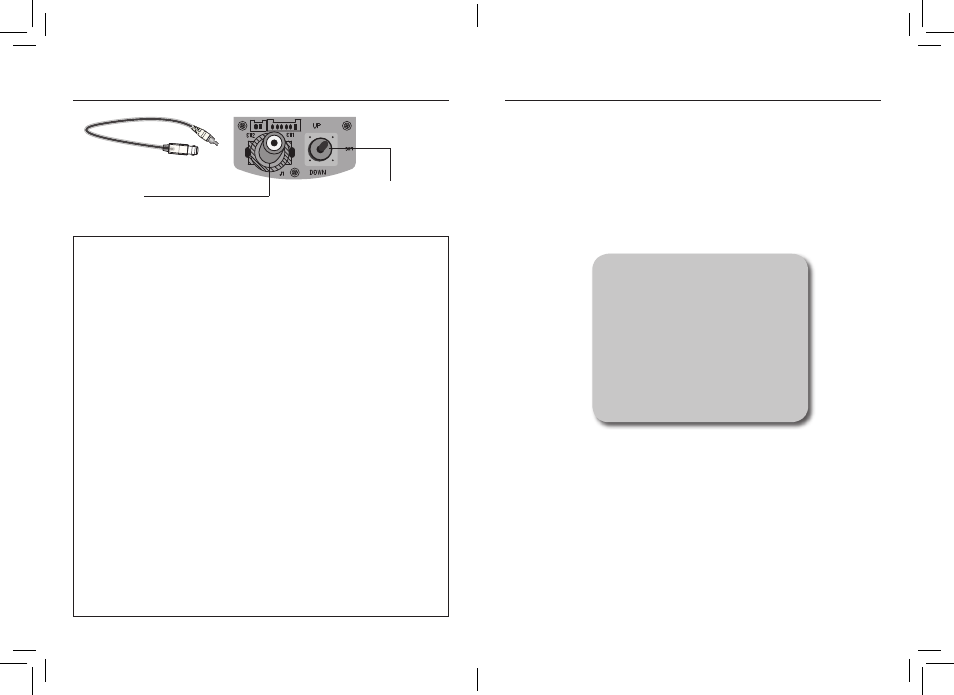

RCA Service Connector
Use supplied RCA - BNC cable
If you require BNC output.
MENU TREE SUMMARY
OSD MENU control
Press down on the function joystick to access the setup menu. Product model may
use five directional buttons with a middle acting as the enter function.
• Main setup menu is displayed on the monitor screen.
SETUP MENU
SETUP MENU
EXPOSURE AUTO
PICT ADJUST 
WHITE BAL ATW
WDR 
DNR 
DAY/NIGHT AUTO
PRIVACY 
MOTION DET 
OTHERS 
EXIT SAVE ALL
Select a function by moving the joystick up and down and move left or right to
change setting value and press joystick to confirm selection.
If a menu option features a  , a sub menu is available which can be accessed
by pressing down on the joystick.
Select ‘NEXT  ’ to view remainder of the OSD setup menu
Once finished updating settings, highlight ‘EXIT’ and press down on the joystick
to exit setup menu.
To retain the changed settings after a power on/off of the camera you need to
select SAVE ALL option on the menu.
EXPOSURE • AUTO
• MODE • BRIGHTNESS • RETURN
• MANUAL
• MODE • SHUT • AGC • MANUAL
PIC ADJUST • MIRROR • DIS • EZOOM
• ZOOM • PAN • TILT • RETURN
• LEVEL • SHARPNESS • HUE • B-GAIN • R-GAIN
WHITE BAL • ATW
• SPEED • DELAY CNT • ATW FRAME • ENVIORNMENT
• PUSH • USER1 • USER2
• B-GAIN • R-GAIN • RETURN
• ANTI CR • PUSH LOCK
WDR • OFF • D-WDR • SUPER- WDR (Effio-P Only)
• MODE • LEVEL • HLC • CLIP LEVEL • SCALE • BLC • RETURN
DNR • OFF • 3D • 2D • 2D+3D
• LEVEL
DAY / NIGHT • AUTO • COLOR • BW • EXT
• BURST • DELAY CNT • DAY - NIGHT • NIGHT - DAY • RETURN
PRIVACY • AREA SEL • MODE • POSITION • COLOR • TRANSP • MOSAIC
MOTION DET • MOTION DET • DETECT SENSE • BLOCK DISP • MOTION AREA • RETURN
OTHERS • LANGUAGE • LENS • SYNC • CAMERA TITLE • WPC • RS-485ID
• VERSION • CAMERA RESET• AUTO IRIS • TYPE • MODE • SPEED
EXIT • SAVE ALL
