* Earth
L Live
N Neutral
P Pressure switch
R1 - R6 Relay
S4 Evaporator sensor
S5 Room sensor
SPL1 Splice
TA Impressed current anode
TS Safety thermostat
X1 Connecting the impressed current anode
X2-S3 Bottom DHW temperature sensor
X3-S2 Middle DHW temperature sensor
X4-S1 Top DHW temperature sensor
X5 Room sensor, Evaporator, Pressure switch
X6 Control panel connection
X7 Hydraulic back-up command terminal board
X8 Command terminal board
X-B1 Electrical back-up command terminal board
X-HC Pricing information input (HP-HC).
Allows authorisation of domestic hot water production
depending on the setting of the HP/HC input

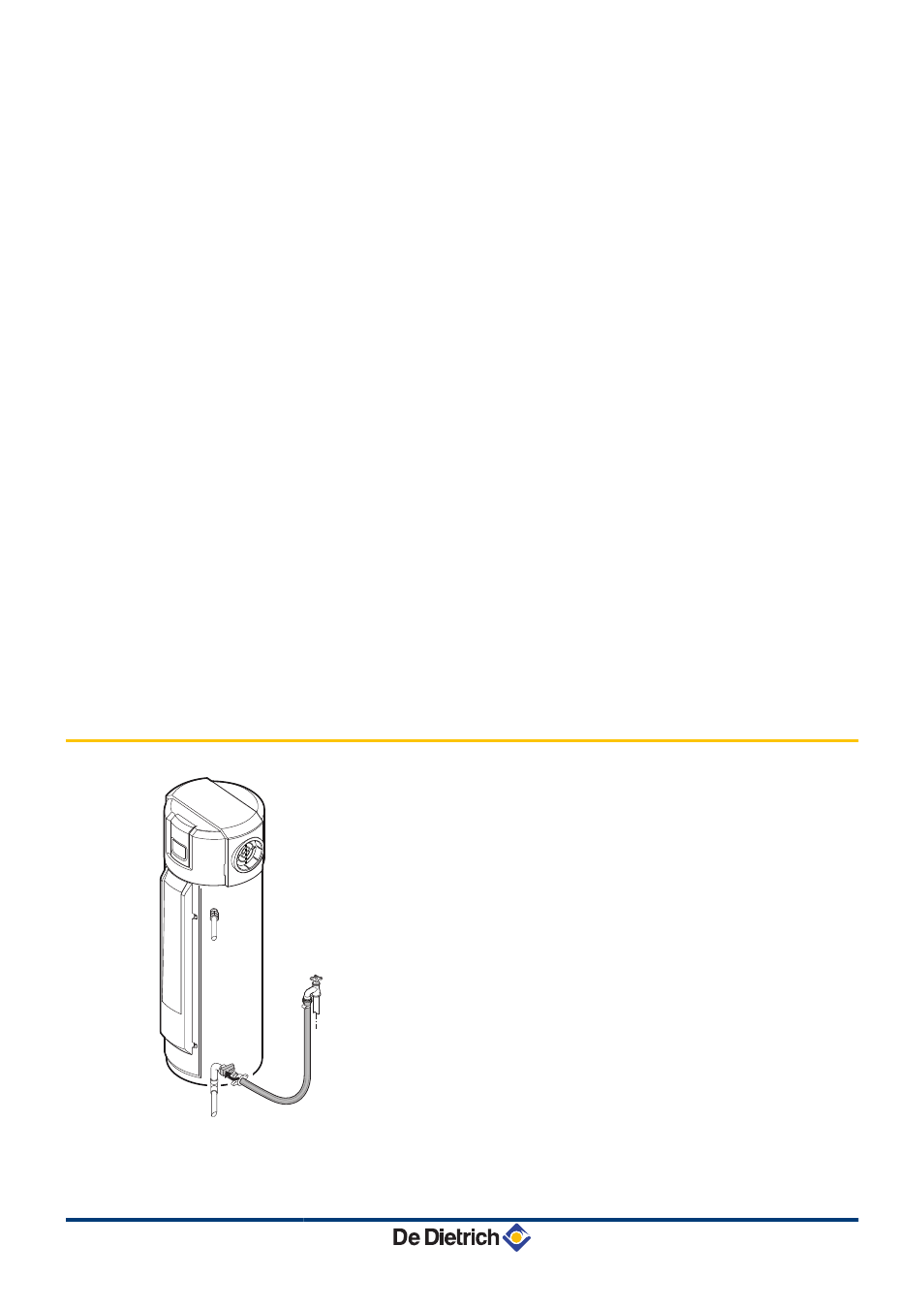

4.11 Filling the thermodynamic DHW tank
1. Open a hot water tap.
2. Open the cold water tap located on the safety unit. Ensure that the
drainage valve on the unit is closed.
3. When the water overflows through the hot water tap, the appliance
is full. Close the hot water tap.
C
0
0
3
4
0
9
-A
4. Installation TWH 200E TWH 300E TWH 300EH
42 03/02/2014 - 300026515-001-03
