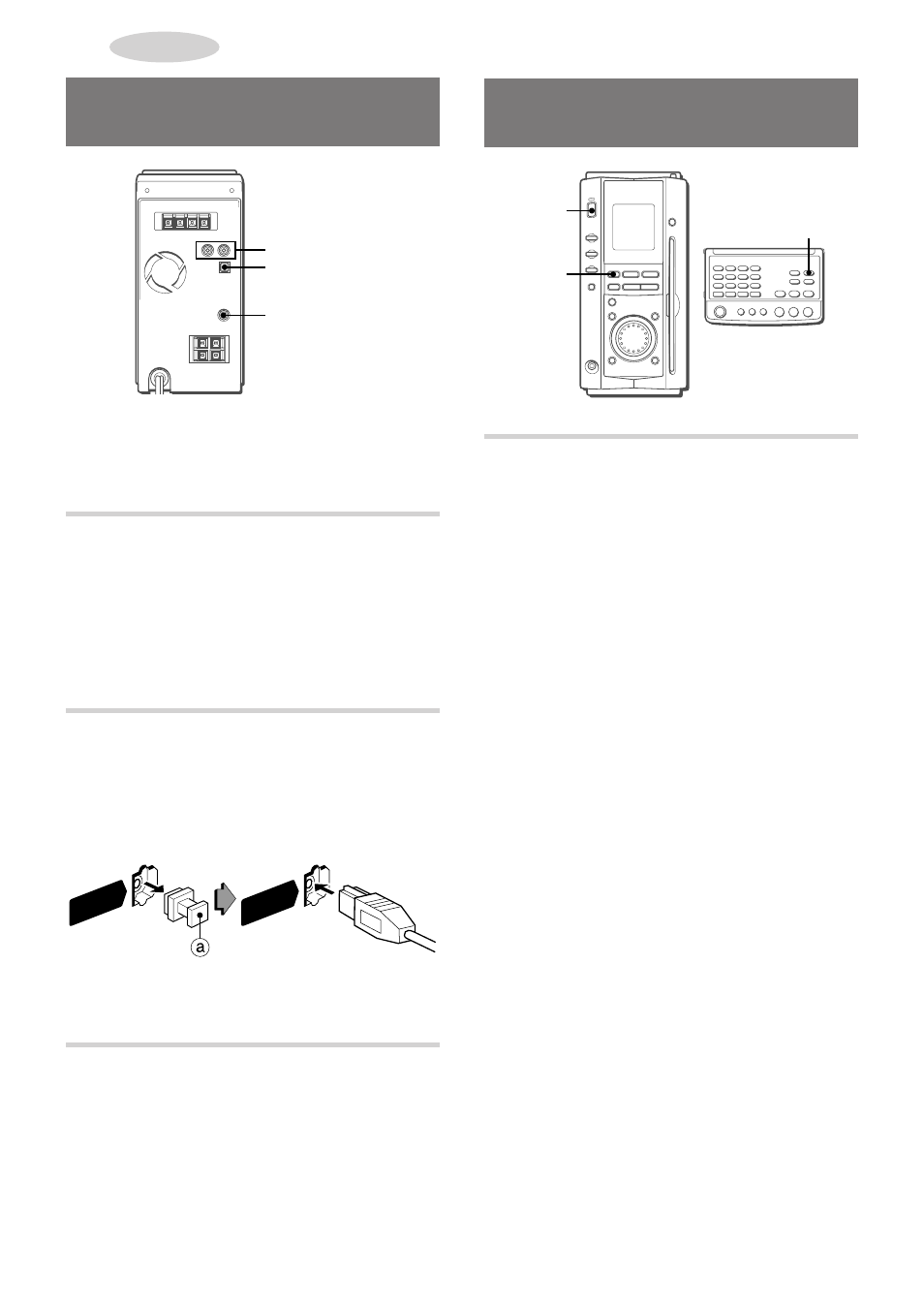

20

ENGLISH

LISTENING TO EXTERNAL
SOURCES

POWER

AUX

a

TO PLAY EQUIPMENT CONNECTED TO THE
VIDEO/AUX JACKS

1 Press AUX on the remote control, or press

FUNCTION on the main unit repeatedly until
"AUX" appears on the display.

2 Play the connected equipment.

To change a source name in the display

When AUX on the remote control is pressed, "AUX" is displayed
initially. It can be changed to "VIDEO" or "TV".
With the power on, press POWER while pressing

a

on the main

unit.
Repeat the procedure to select one of the names.

CONNECTING OPTIONAL
EQUIPMENT

VIDEO/AUX

DIGITAL OUT
(OPTICAL)

SUPER WOOFER

Refer to the operating instructions of the connected equipment
for details.
• The connecting cords are not supplied. Obtain the necessary

connecting cords.

• Consult your local Aiwa dealer for optional equipment.

VIDEO/AUX JACKS

Analog sound signals can be input through these jacks.
Use a cable with RCA phono plugs to connect audio equipment
(turntables, LD players, MD players, VCRs, TV, etc.).
Connect the red plug to the R jack, and the white plug to the L
jack.

When connecting a turntable

Use an Aiwa turntable equipped with a built-in equalizer amplifier.

DIGITAL OUT (OPTICAL) JACK

CD digital sound signals can be output through this jack. Use an
optical cable to connect digital audio equipment (digital amplifier,
DAT deck, MD recorder, etc.).
Remove the dust cap

a

from DIGITAL OUT (OPTICAL) jack.

Then, connect an optical cable plug to DIGITAL OUT (OPTICAL)
jack.

DIGITAL

OUT

(OPTICAL)

DIGITAL

OUT

(OPTICAL)

When DIGITAL OUT (OPTICAL) jack is not being used

Attach the supplied dust cap.

3

SUPER WOOFER JACK

Connect an optional powered sub woofer with a built-in amplifier
to the jack.

OTHER CONNECTIONS
