Another scenario, shown in Figure 4.4 on page 50, is when the corporate site also uses a NAT
device to save IP addresses (double-NAT). Since the DSView 3 software client is trying to access a
private resource inside the corporate site, the TCP/IP ports used for HTTPS and the proxy server
must be configured to be exposed on the corporate NAT device.

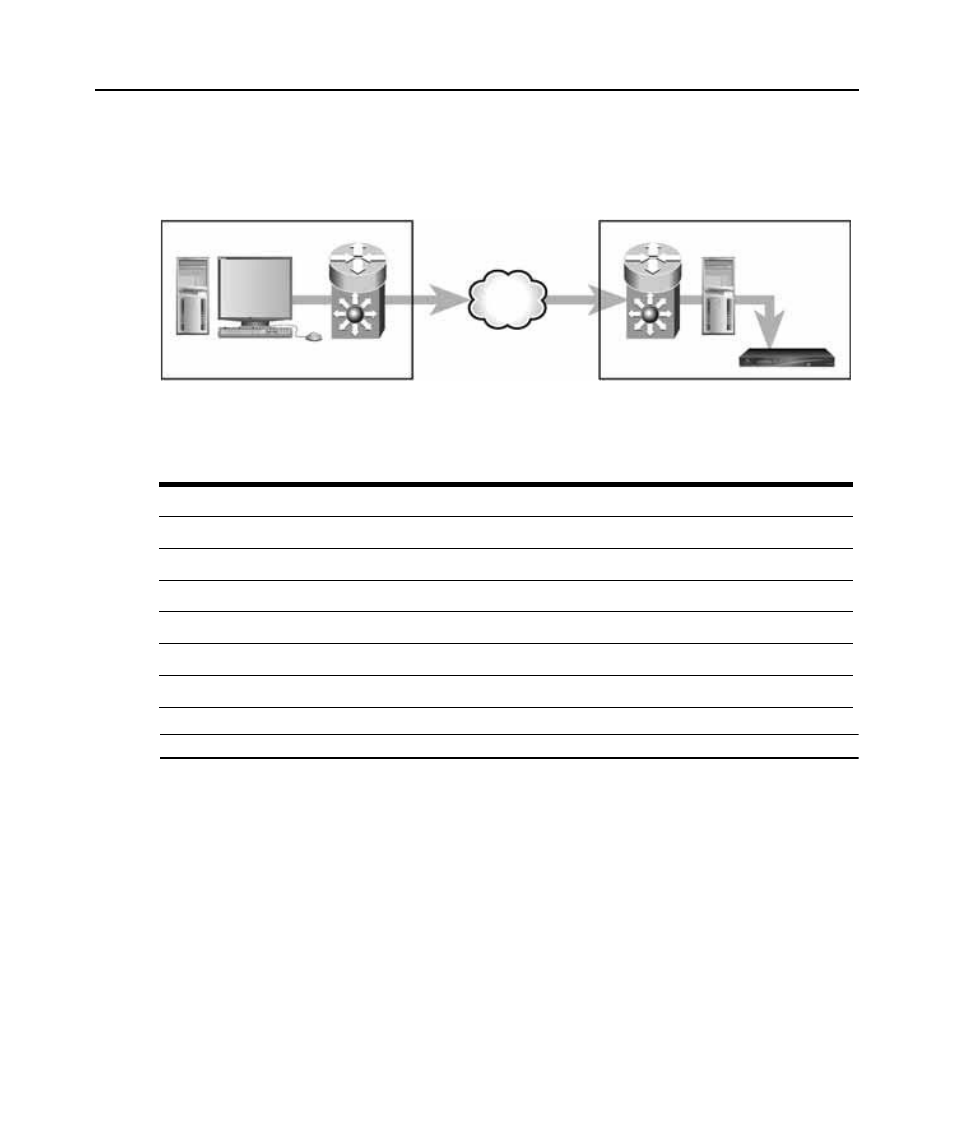

Figure 4.4: Double-NAT Configuration (Client and Corporate)
NOTE: NAT devices may not be connected between the DSView 3 server and any managed appliances.
Licenses
License keys permit the operation of the DSView 3 management software on the hub server. They
also specify the number of:
• clients that may use the software
• spoke servers allowed on a system
• third party power devices that may be added
• plug-in license IDs
• data logging sessions that can be enabled concurrently
• NetClarity Auditor appliances that can be managed
• virtual machines that can be managed
Table 4.7: Double-NAT Configuration (Client and Corporate) Descriptions
Number Description Number Description
1 DSView 3 Software Client 7 NAT Device
2 Private 8 Private
3 NAT Device 9 DSView 3 Software Server
4 Client 10 Managed Appliance
5 Public 11 Corporate
6 VPN
