Present Sensor Installation | 2
7
Present Sensor Installation Guide
Note:
The cable chain slot should face down.

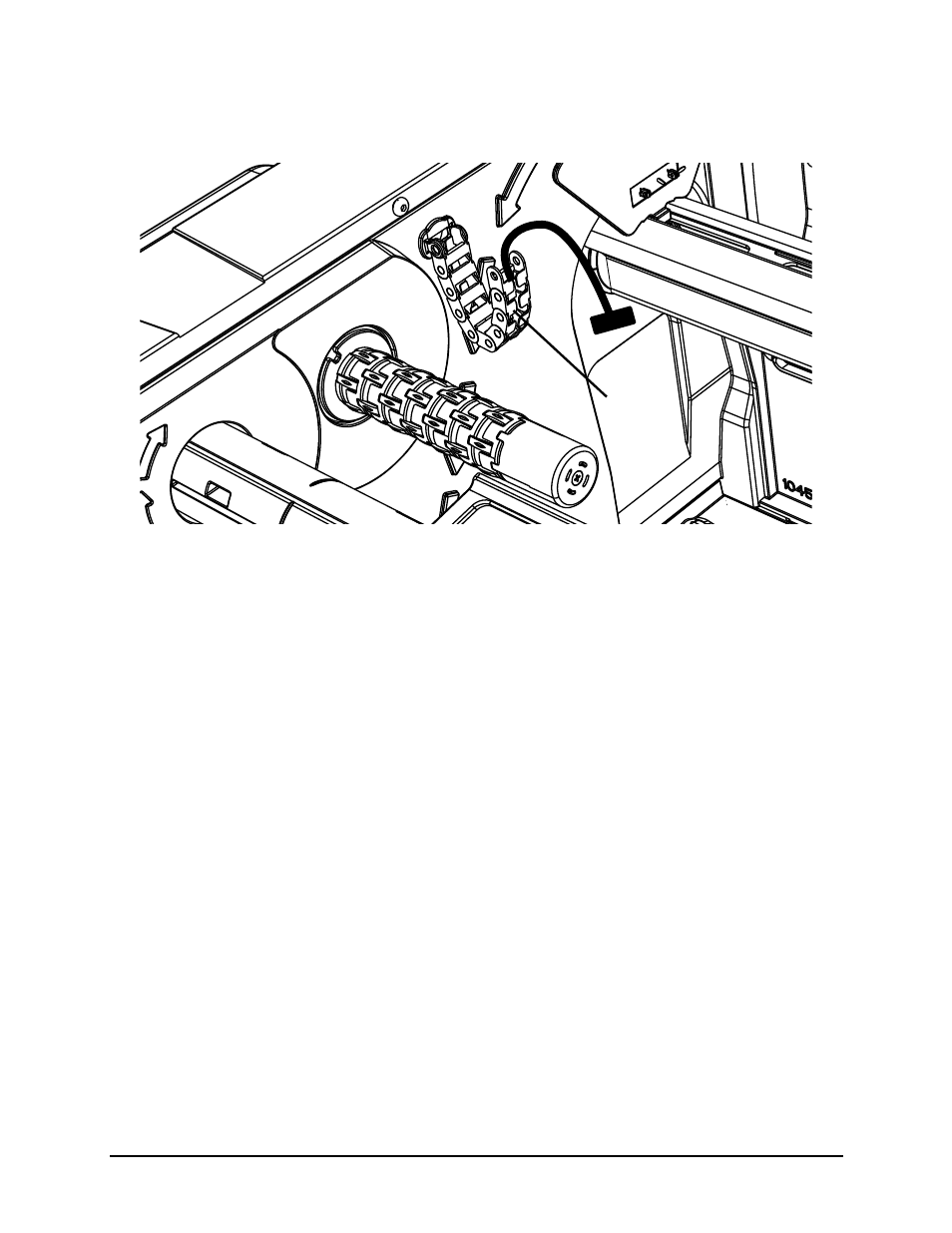

Figure: 2 - 6 Cable Chain
10. Reinstall the cover assembly.
11. If not assembled, seat the present sensor sub-assembly into the support mount and
fasten it to the front panel using the supplied screw.
Note:
There are three positions where the present sensor may be mounted. Select the
one that places the present sensor closest to the identifying mark on the media being
used.
Cable
slot
