2 | Present Sensor Installation
Present Sensor Installation Guide
6
6. Press the cable chain bracket into the center plate opening.

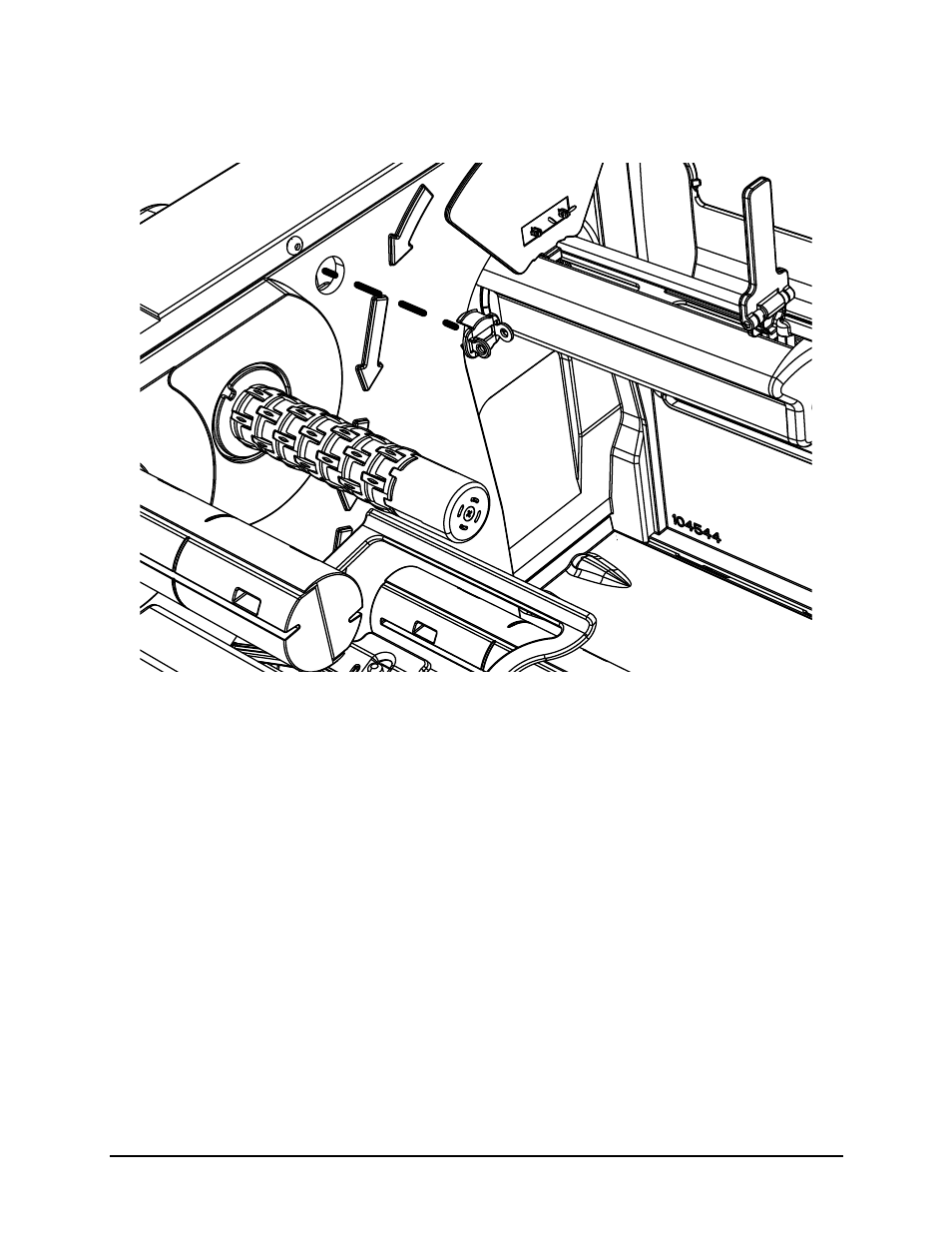

Figure: 2 - 5 Cable Chain Bracket
7. Route the cable (SP105337) from the present sensor kit through the opening of the
cable chain bracket and to the main PCB assembly.
8. Connect the connector to junction J4 of the main PCB assembly.
Note:
Ensure the cable is safely routed.
9. Connect the cable chain end to the cable chain bracket and press the wires into the
cable chain slot.
