2 | Thermal Transfer Installation Guide
Thermal Transfer Installation Guide
12
16. Using the supplied screw, install the power ribbon transport cover to the ribbon
transport assembly.

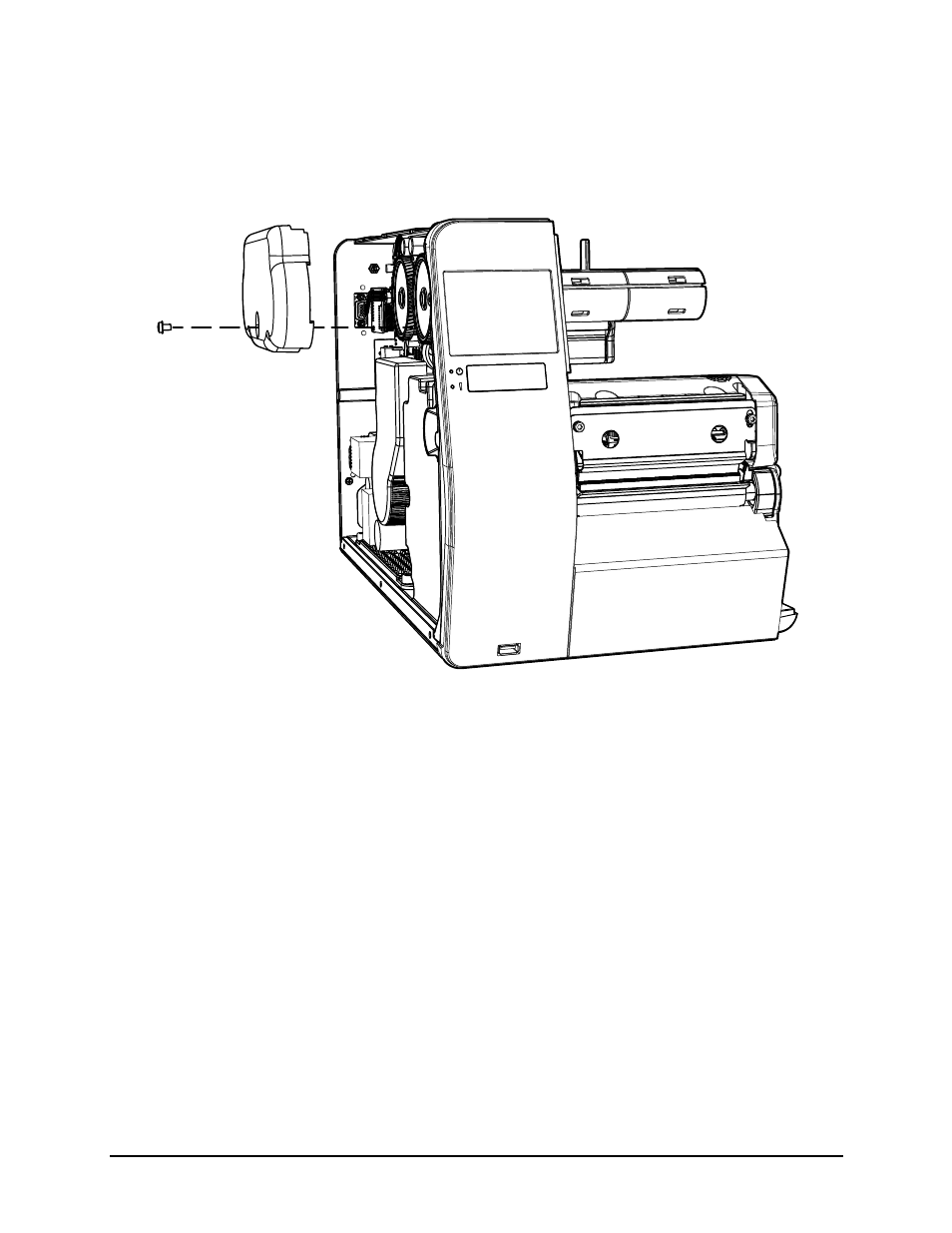

Figure: 2 - 12 Power Ribbon Transport Assembly Cover
17. Reinstall all other printer components in the reverse order as they were
disassembled.
