2 | Thermal Transfer Installation Guide

Thermal Transfer Installation Guide

10

14. Insert the ribbon hub and the ribbon rewind hub through the ribbon spool cover and

through the bearings of the ribbon transport assembly.

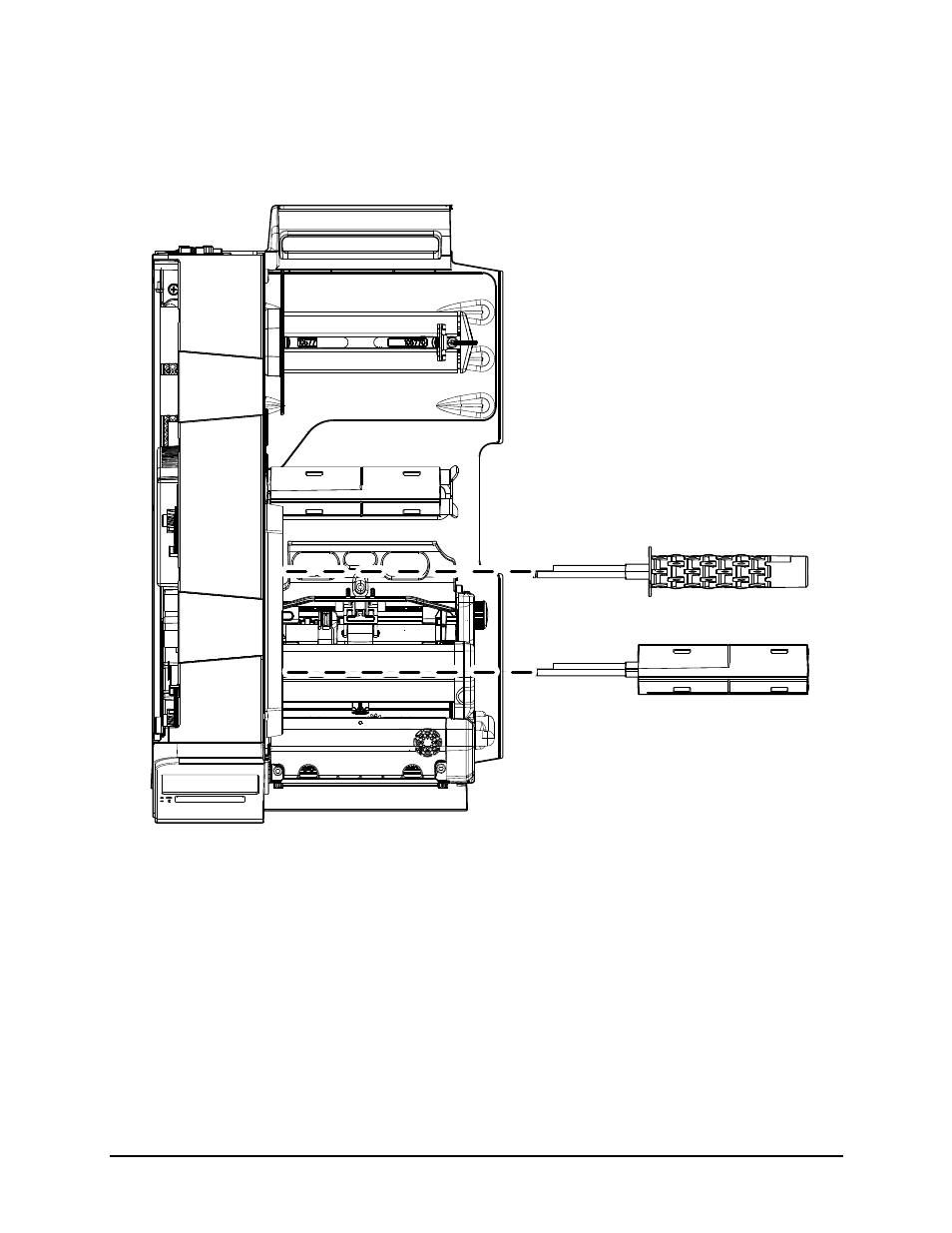

Figure: 2 - 10 Ribbon Hub and Ribbon Rewind Hub

View from Top
