Thermal Transfer Installation Guide | 2

11

Thermal Transfer Installation Guide

15. Install both (2) gears, both (2) wave washers and both (2) e-clips to the ribbon hub

and ribbon rewind hub shafts.

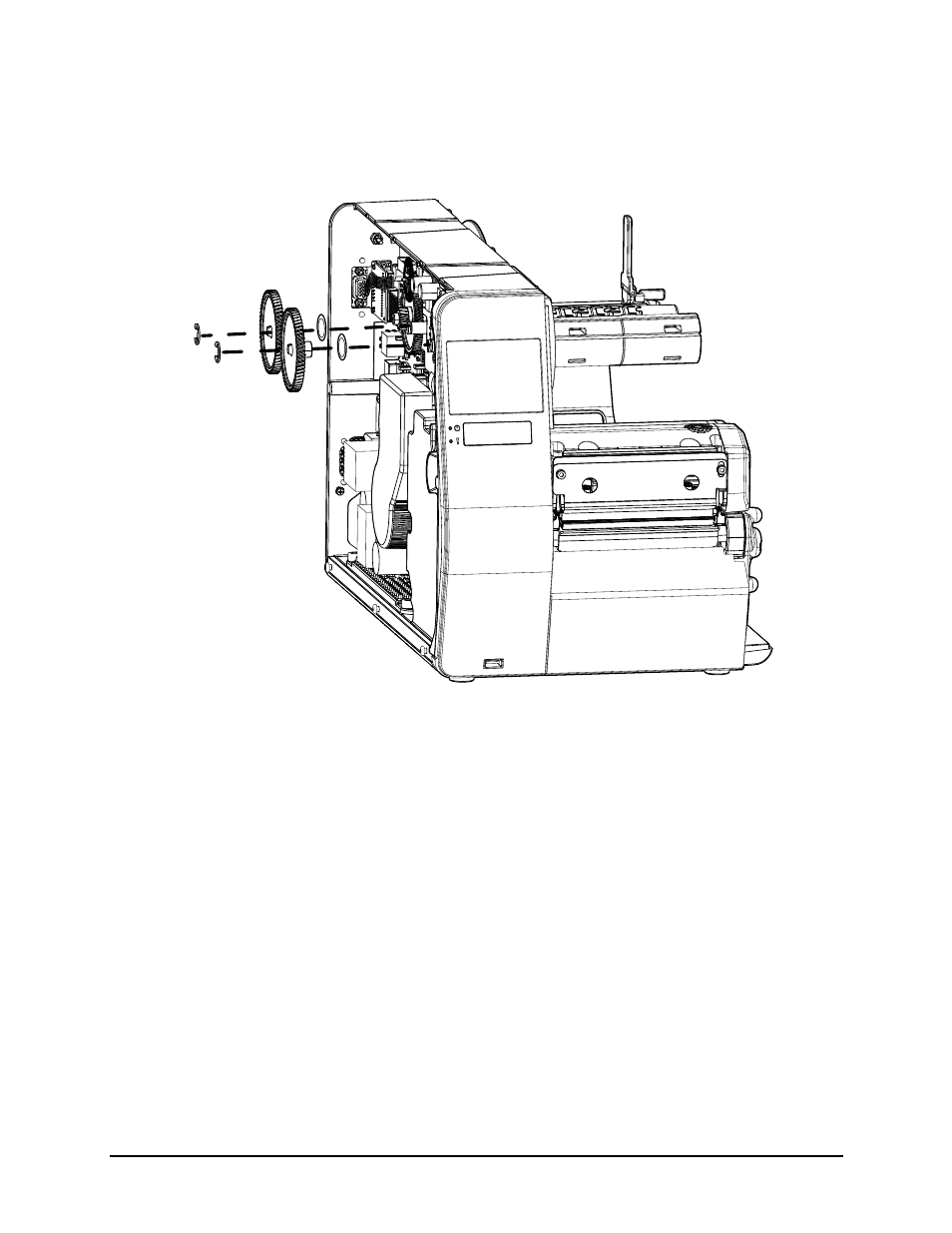

Figure: 2 - 11 Gears and E-Clips
