Datamax-O'Neil Performance series Thermal Transfer User Manual
Page 10
Thermal Transfer Installation Guide | 2
9
Thermal Transfer Installation Guide
11. Route the cable where it will not be damaged during the ribbon transport assembly
installation.
12. Install the ribbon transfer assembly and secure it to the printer frame using the three
(3) supplied socket head screws.

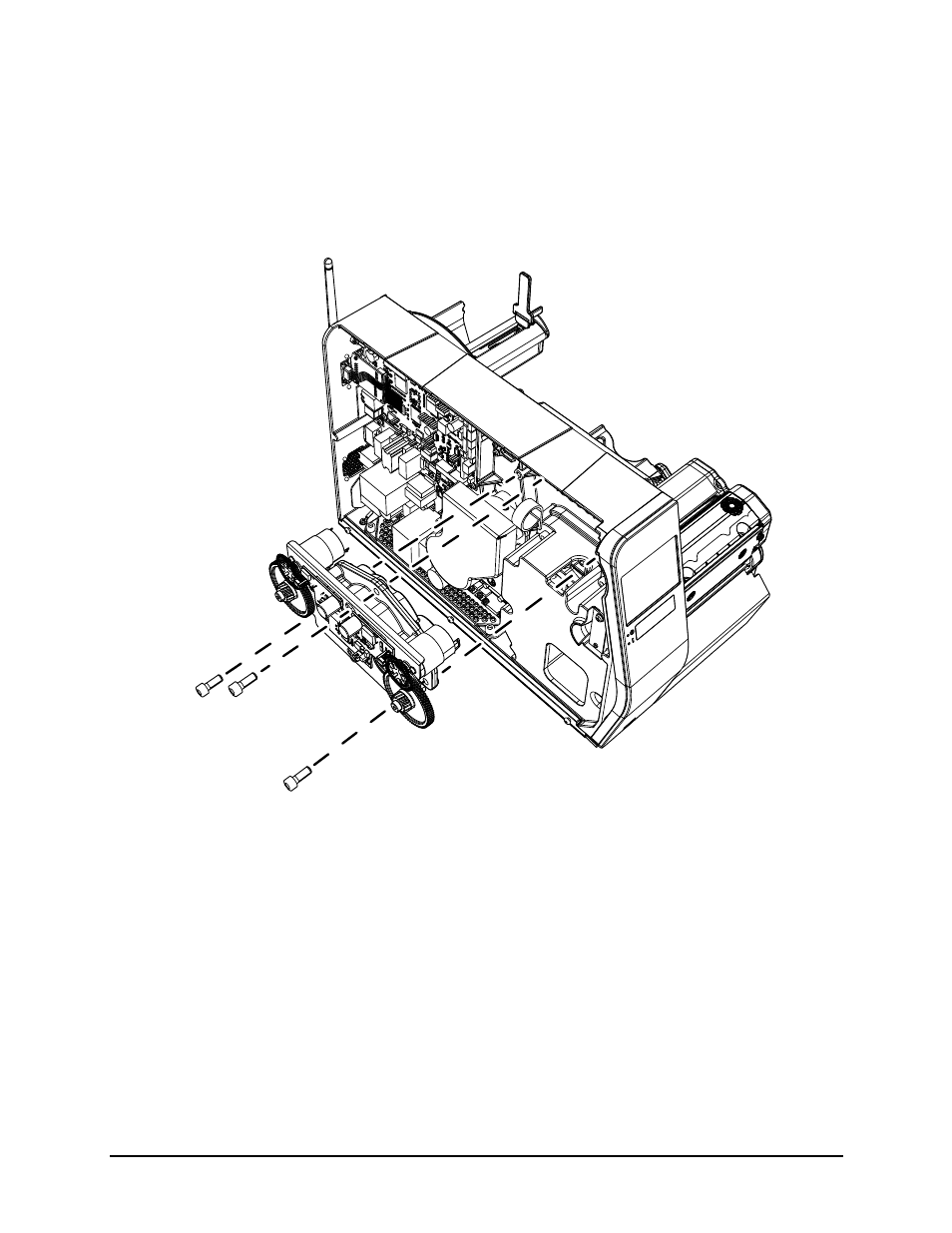

Figure: 2 - 9 Ribbon Transfer Assembly
13. Connect cable to junction J10 of the main PCB assembly.
