Using the belt clip
Install the belt clip as follows:
1. Turn the printer so that its back faces you and the belt clip
socket is up, as shown in Figure 27.
2. Place the belt clip over the belt clip socket such that the flat
side of the belt clip swivel matches the flat side of the belt
clip socket (Figure 28).
3. Press the belt clip onto the printer until the swivel is fully
seated into the socket.
4. Rotate the belt clip 180 degrees to lock it into place
(Figure 29 and Figure 30).
Reverse the above steps to remove the belt clip.

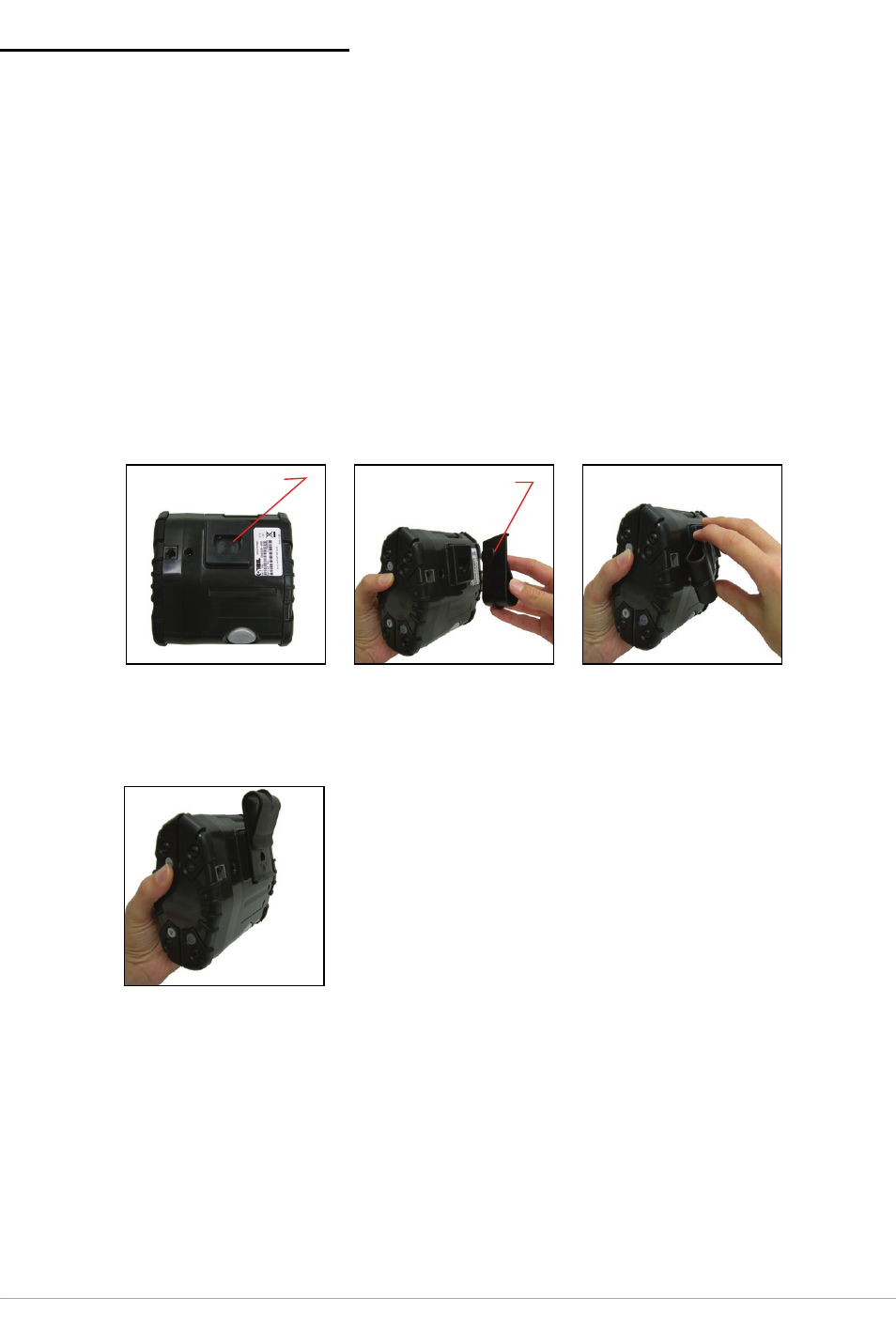

Figure 27 Figure 28
Belt clip socket Belt clip swivel
Figure 29
Figure 30
