Datamax-O'Neil MP Compact4_MP Compact4 Mobile Mark II Operators Manual User Manual
Page 25
19

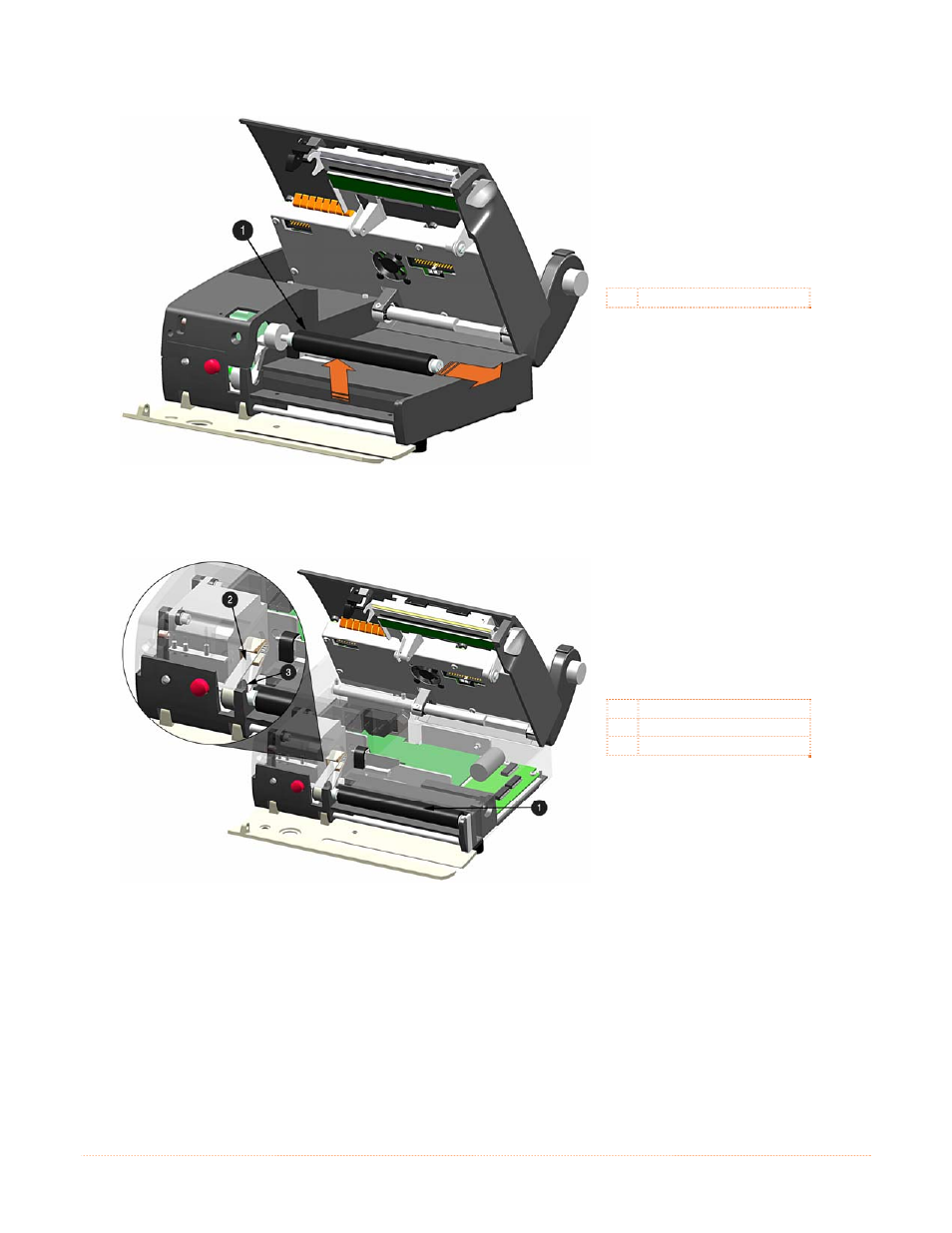

5. Lift the Platen Roller Assembly up and out of the printer
Platen Roller Assembly
To Install:
1. Insert the new Platen Roller Assembly into position. Be sure the Belt is routed properly around the Gear, this can be
viewed through the Access Hole.
Platen Roller Assembly
Belt
Gear
2. Re-install the Platen Roller Cover.
3. Close the Top Cover, push down until it latches closed. Raise the Front Panel and replace the media, return the
Printhead Latch back to the locked position.
4. Plug in and turn ‘On’ the printer. Feed several labels to normalize tracking.
