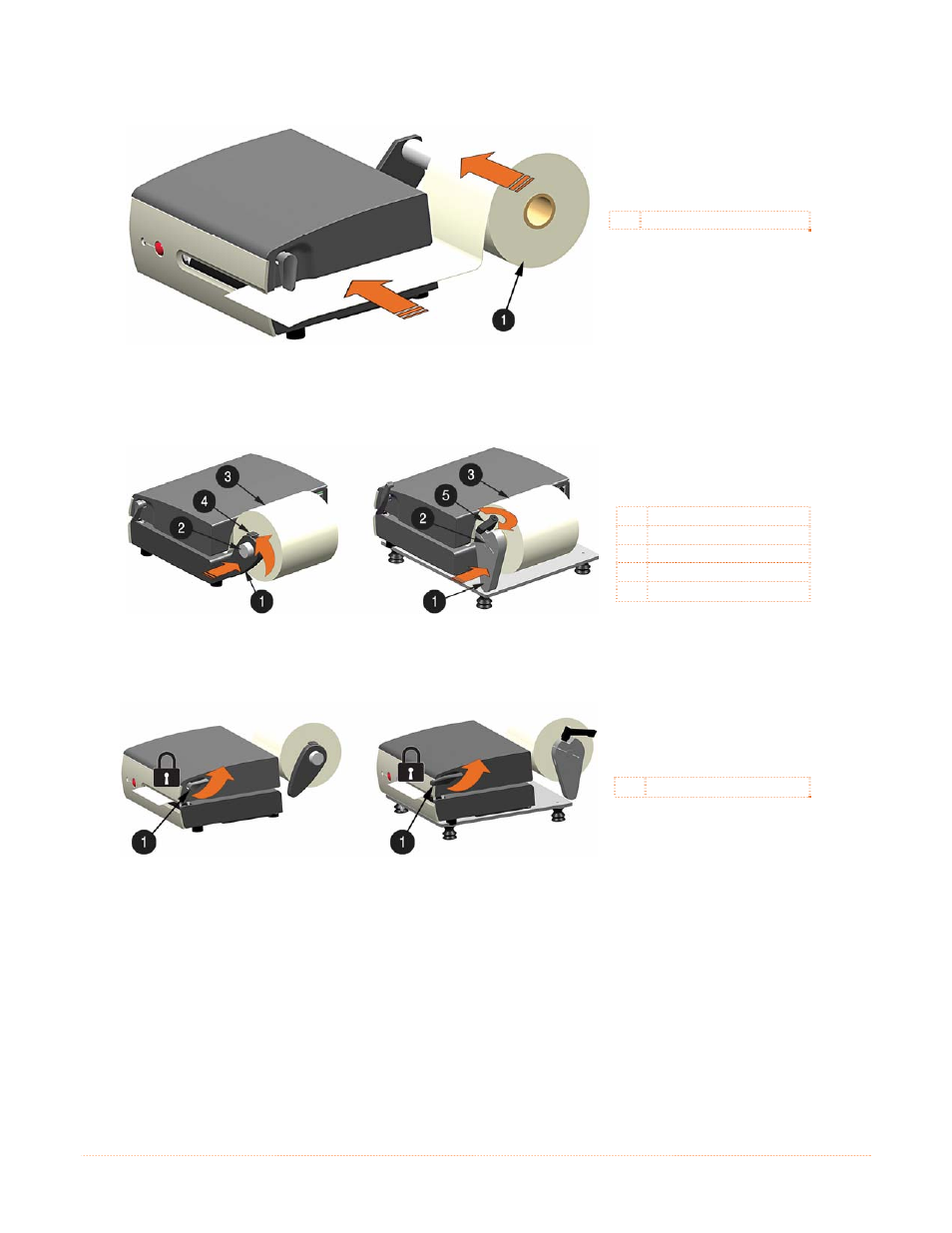

3. Unravel approximately 12” of labels from the Label Roll. Slide the labels and Label Roll into the

printer from the side as shown.




Label Roll





4. Reinstall the Media Hub Guide onto the Media Hub. Be sure the Media Hub Guide is lightly touching

the edge of the Label Roll. Secure the Media Hub Guide:

AC Models: Move the Thumb-Latch to the locked position

DC Models: Tighten the Media Guide Handle, do not over-tighten.

AC Models

DC Models




Media Hub Guide

Media Hub

Label Roll

Thumb-Latch

Media Guide Handle


5. Rotate the Printhead Latch counter-clockwise to the locked position.

AC Models

DC Models



Printhead Latch


6. Turn the printer ON and wait for it to enter an idle state (green light on). Press the front Control

Button a couple of times to position the media and ensure proper tracking. If the printer does not

correctly sense the top of each label, it may be necessary to calibrate the printer (see Section 4.6

Media Sensor Configuration).
