6
Controls and Features, Performance, and Configuration
This section includes topics on operations.

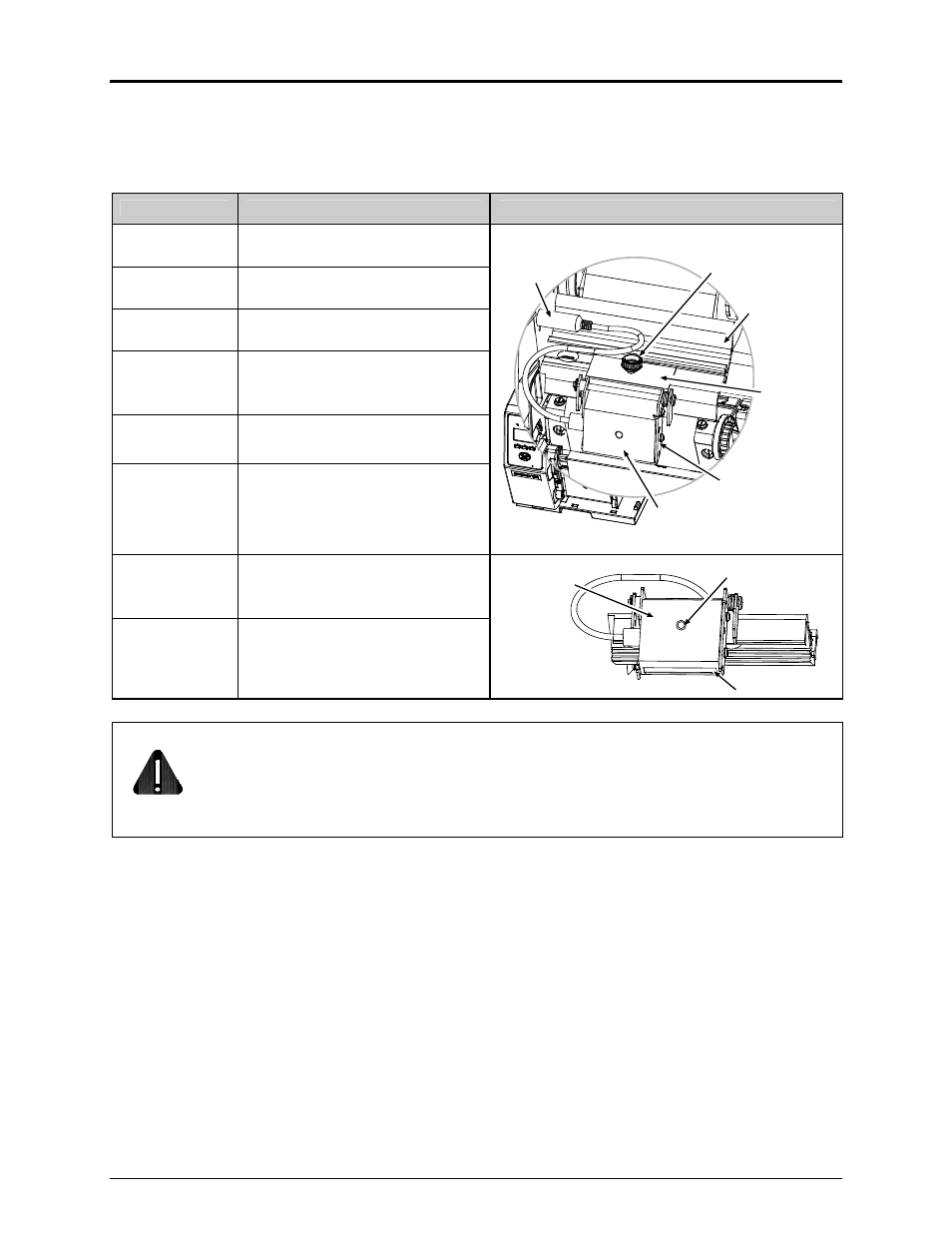

Controls and Features
Item Function Location
Connector Cable Scanner to printer interface.
Horizontal Mount Lateral position adjustment.
Mounting Bracket Horizontal support.
Pivoting Mount
Spring-loaded holder, also for vertical
Scanner positioning (scan resolution).
Scanner
CCD scanning device.
Thumbscrew
Secures the Scanner to the
Horizontal Mount, for lateral
positioning.
Mounting
Bracket
Thumbscrew
Pivoting
Mount
Horizontal
Mount
Scanner
Connector
Cable
LED Goes green to signify a “good” read.
Window
Portal for image illumination and
capture; glows red.
Window
LED
Scanner
CAUTION
The Pivot Mount should never be over-extended. The use of controls, adjustments, or
procedures other than those specified herein may result in hazardous LED light exposure.
Class 1 LED power up to 15 mW in a 0.1 ms pulse at 635-670 nm could be accessible in
the interior of the Linear Scanner.
Performance Considerations
Printing with the scanner is a seamless operation; however, consider some important factors that can
affect performance:
