Datamax-O'Neil H-Class Linear Scanner Option User Manual
Page 5
3

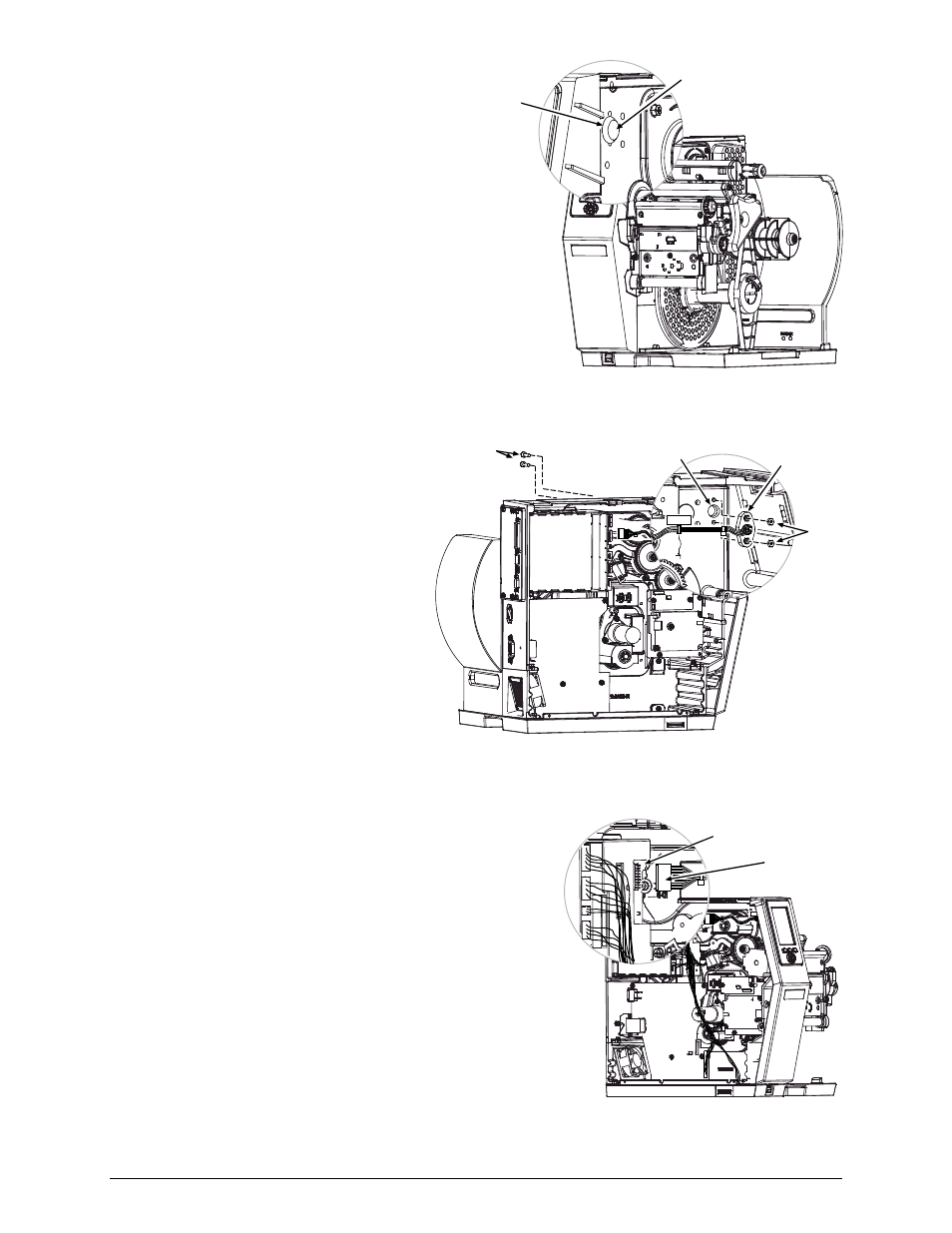

4) Remove
the
Plug from the Center Plate
Aperture.
Center Plate
Aperture
Plug
5) Secure the mini-din connector of the
Cable Assembly (Item 5) to the Center
Plate Aperture using two Screws (Item
4) and two Nuts (Item 3).
Screws
Center Plate
Aperture
Nuts
Cable
Assembly
6) After routing the Cable Assembly away from movable
parts, attach its 8-pin connector to J13 of the Backplane
CCA.
Cable
Assembly
J13
Backplane
CCA
