Intrinsic safety barrier, Specifications, General wiring diagram – BEI Sensors Intrinsic Safety Barrier User Manual

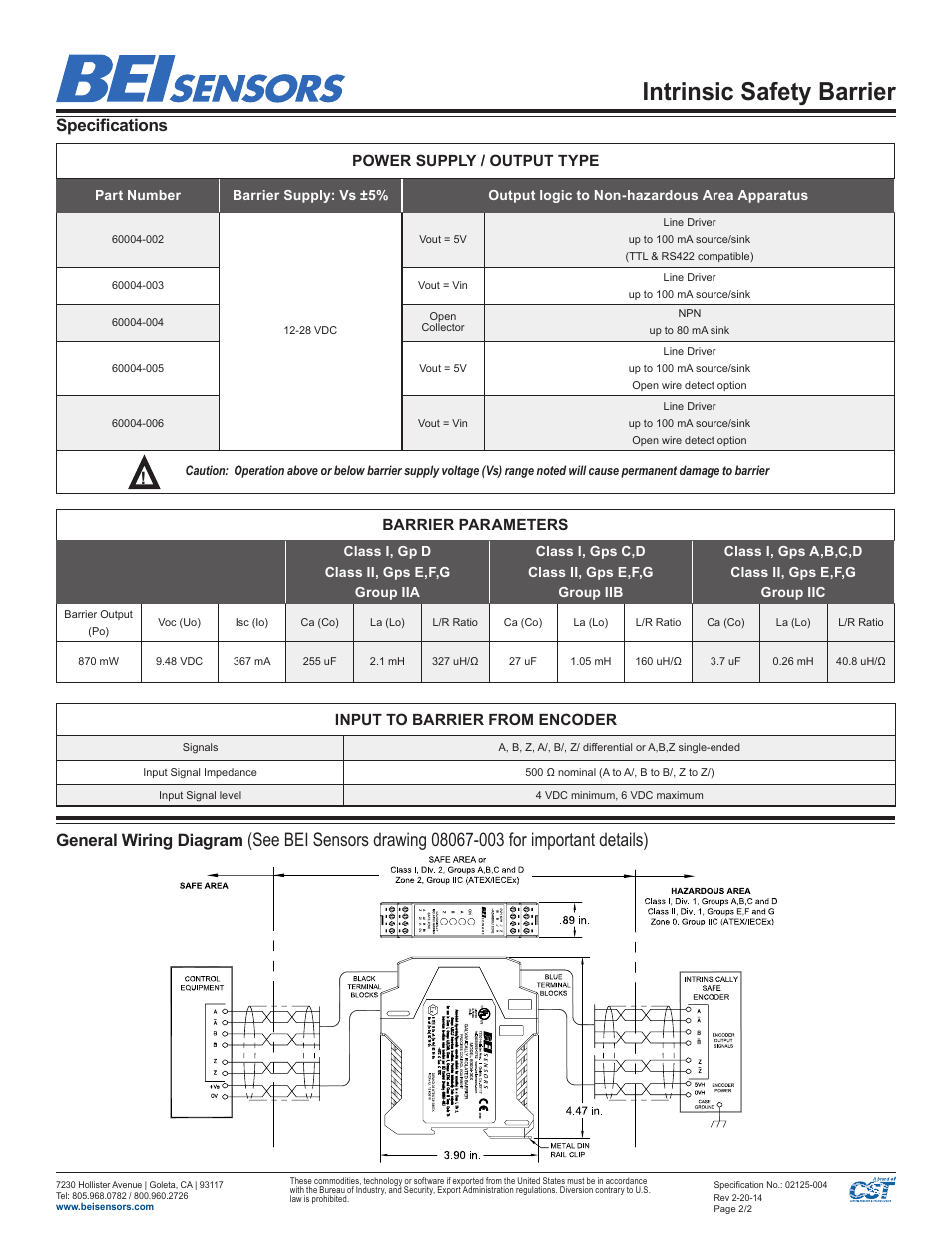

Page 2: Power supply / output type, Barrier parameters, Input to barrier from encoder
