8360 series, Bei sensors, 360° non-contacting through-hole position sensor – BEI Sensors 8360 User Manual
Page 2
8360 Series
360° Non-Contacting Through-Hole Position Sensor
BEI Sensors
7230 Hollister Avenue
Goleta, CA 93117
www.beisensors.com
Tel: 800-350-2727
Fax: 805-968-3154
Rev 2-27-13

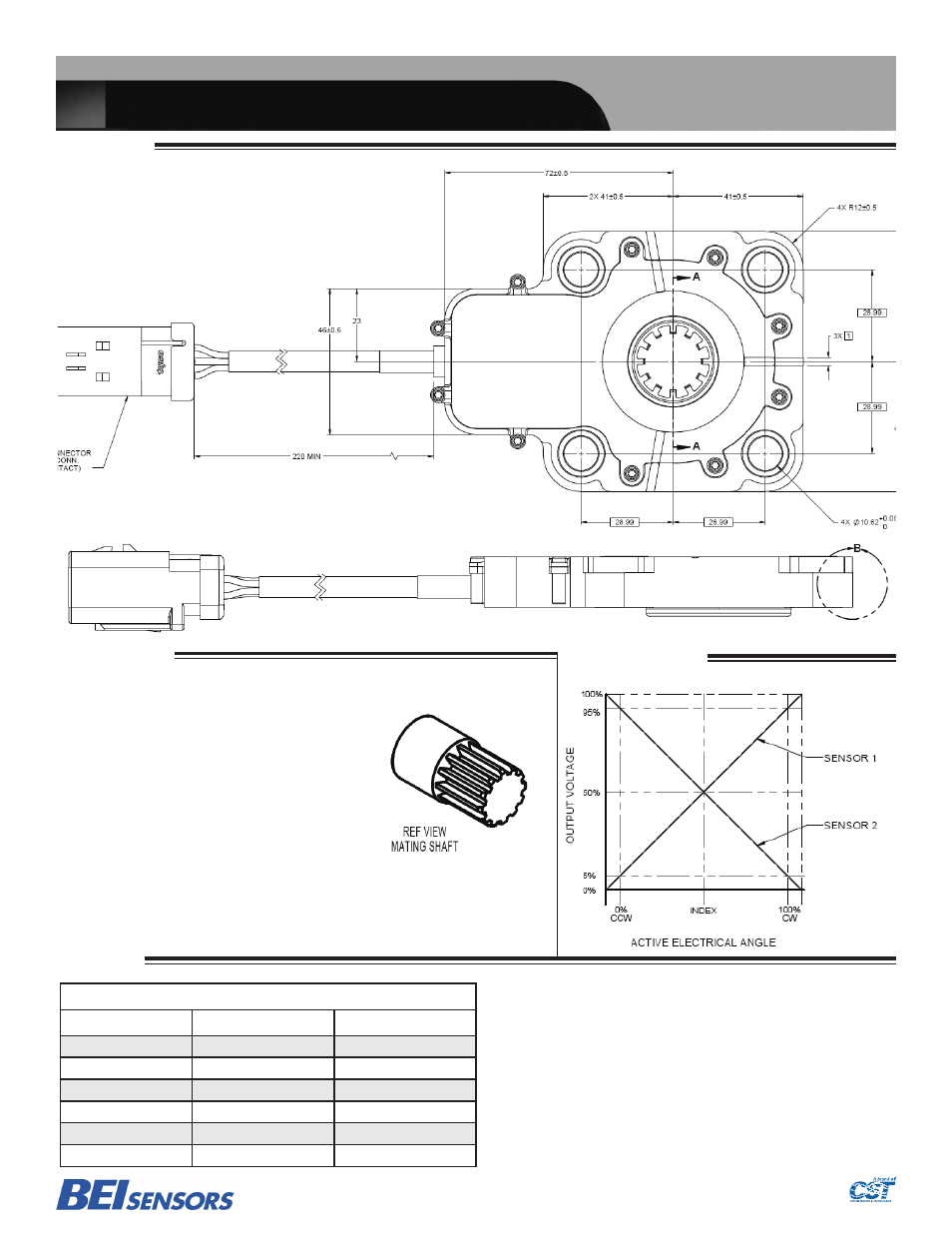

Dimensions
Output Function
Spline Details
Dimensions
Rotor Interface is 12 tooth spline
Pitch Angle: 30°
Diametral Pitch: 16/32
Pitch Diameter: 19.05
Largest Diameter: 20.3 ± 0.1
Smallest Diameter: 16.5 ± 0.5/-0
(Ref ANSI B92.1 - 1970 Tol. Class B)
Connector Pin Layout
PIN #
Pinout
Color
1
Voltage Supply
Red
2
Output 1
White
3
GND
Black
4
Voltage Supply
Yellow
5
Output 2
Green
6
GND
Brown
Connector
