TXM5S
MAGNETIC ANALOG MULTI-TURN ENCODERS, TXM5S – STAINLESS STEEL 316 - IP69K
ELECTRICAL DATA
Power supply
5V or 10–30Vdc or 15-30Vdc
Introduction
< 1 s
Comsumption without load
< 40mA (at 24Vdc)
Response time
< 10 ms (5L2 & 3L1 electronic)
Resolution
12 bits
< 1ms (other electronics)
Accuracy
± 0.3 %
Advised load
>10kOhms (Voltage output)
Repeatability
± 0.1 %
500Ohms (current output)

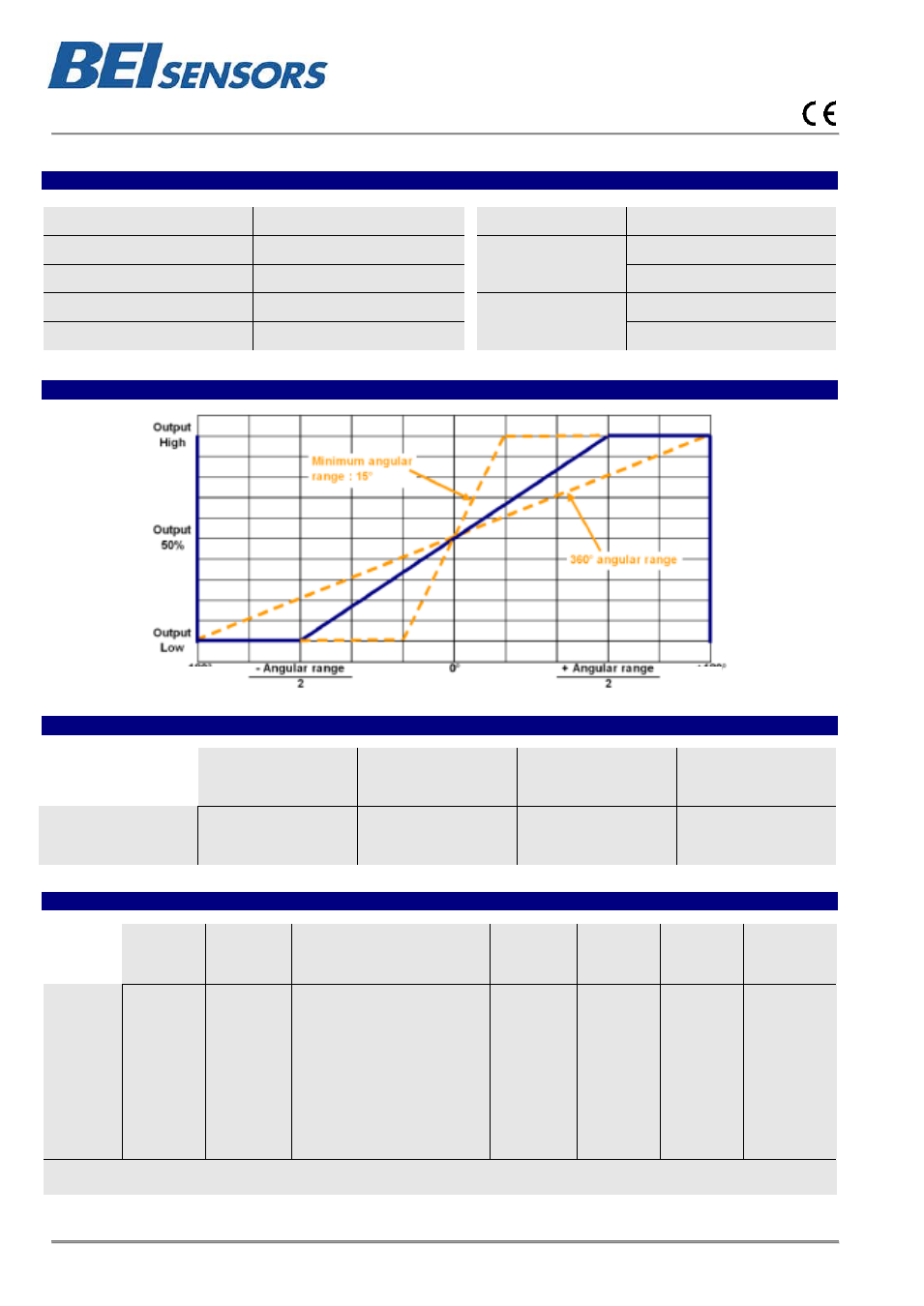

ANALOG OUTPUT
CONNECTION
+Vcc
0V
Analog output
Ground
L7
Brown
BN
White
WH
Green
GN
General shielding
ORDERING REFERENCE
(Contact the factory for special versions, ex : stainless steel version, connections…)
Mechanics Mechanics
Supply
Output stage
Direction
Resolution Connection
Connection
orientation
TXM5S :
Absolute
multi turn
encoder
10 :
10mm solid
shaft
AA:
316 stainless
steel
IP69K
Hygienic
design
3L1 : 15 to 30Vdc
0..10V output
5L2 : 10 to 30Vdc
0.5..4.5V output
3L3 : 15 to 30Vdc
4..20mA output
2LR : 5V +/- 5%
Ratio 10…90% voltage supply
1 :
CW
Clockwise
2 :
CCW
Counter-
clockwise
xxxxx :
Calibrated
angle in
degree
Ex : 03600
3600°
L7 :
cable
output
A020 :
Axial
cable 2m
Ex: TXM5S
10 /
AA /
3 L1
1 //
03600//
L7
A020
Made in France
Changes possible without further notice - Version 100721
