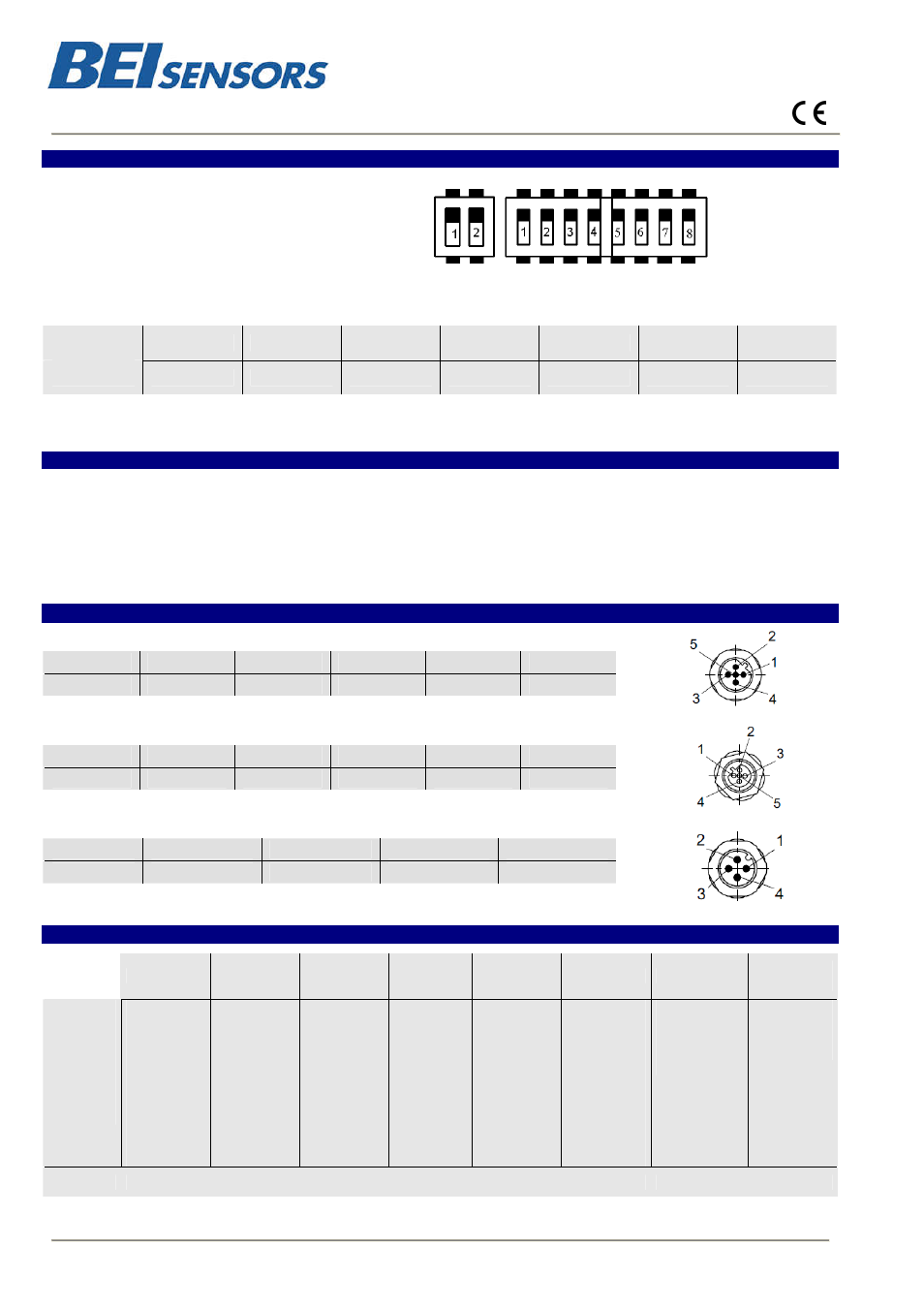

PHM5
ABSOLUTE MULTI-TURN ENCOSER, PROFIBUS INTERFACE, PHM5 SERIE (3 x M12)
GENERALITY
Transmission frequency: from 9.6Kbaud to
12Mbaud.
Electronic interface: opto-isolated RS 485.
Adress: permits the addressing of each
encoder in an installation (32 master
stations or slaves stations per segment
without repetitor, 127 maximum with
repetitor).
Switch -
on ‘’ON’’
1
2
3
4
5
6
7
=
1
2
4
8
16
32
64
Switch 8 on ‘’OFF’’.
Example: Adress 5: Switch 1 & 3 on ‘’ON’’, others on ‘’OFF’’.
PARAMETRES PROGRAMMABLES
Direction : Permits the definition of the counting direction of the encoder (CW or CCW) following its mechanical
position.
Resolution : the number or points per turn can be between 0 and 8192, option: 0 to 65536.
Global resolution (MAX RANGE) : Total number of codes of the encoder (2 to 536 870 912, option 2 to 2 147 483 648).
Reset : defines the value of its actual position.
Time base : defines the base time for the speed calculation (10 ms , 100 ms, 1 s, speed in rpm).
CONNECTION
BUS IN (M12 - 5 male pinout B code)
Signal
NC
BUS A
NC
BUS B
NC
Pinout
1
2
3
4
5
NC : do not connect.
BEI Sensors SAS
Espace Européen de l’Entreprise
9, rue de Copenhague
B.P. 70044 Schiltigheim
F 67013 Strasbourg Cedex
Tél
: +33 (0)3 88 20 80 80
Fax
: +33 (0)3 88 20 87 87
Web :
www.beisensors.com
ON
ON
Adress: 0 to 126 (Binary code)
End line resistance termination: 1, 2 ‘’ON’’
(Beginning or end line)
BUS IN
BUS OUT
BUS OUT (M12 – 5 female pinouts B code)
Signal
P5V
BUS A
BUS GND
BUS B
NC
Pinout
1
2
3
4
5
P5V & BUS GND for the connection of the end-line termination resistance.
POWER SUPPLY (M12 - 4 male pinouts A code)
Supply
Signal
+Vcc
NC
0Vdc
NC
Pinout
1
2
3
4
Power supply : 5-30V, consumption <200 mA (160mA typ)
ORDERING CODE (Special versions upon request, for ex. special flanges/electronics/connections…)
Shaft
Supply
Interface
Code
Resolution
Turns Nb
Connection
Orientation
connectique
PHM5
PXM5
Stainless
steel
encoder
10:
10mm
06 :
6mm
P :
5 to 30Vdc
BG :
Profibus
B:
Binary
13 :
8192 points
per turn (2
13
)
Option
16 :
65 536 points
per turn (2
13
)
B16 :
65 536 turns
(2
16
)
B15 :
32768 turns
(2
15
)
BH:
3 connectors
M12
R :
radial
Ex: PHM5_
10 //
P
BG
B //
13
B16 //
BH
