ATEX ABSOLUTE SINGLE TURN PARALLEL ENCODER, CAMX RANGE
RACCORDEMENT
2 0 GN green
2 1 YE yellow
2 2 GY grey
2 3 OG orange
2 4 BU blue
2 5 RD red
2 6 BK black
2 7 VT violet
2 8 WH/BN white/brown
2 9 WH/GN white/green
2 10 WH/YE white/yellow
2 11 WH/BK white/black
2 12 WH/OG white/orange
- WH white
+ BN brown
Ground/body General shield
DIRECTION WH/RD blanc/rouge

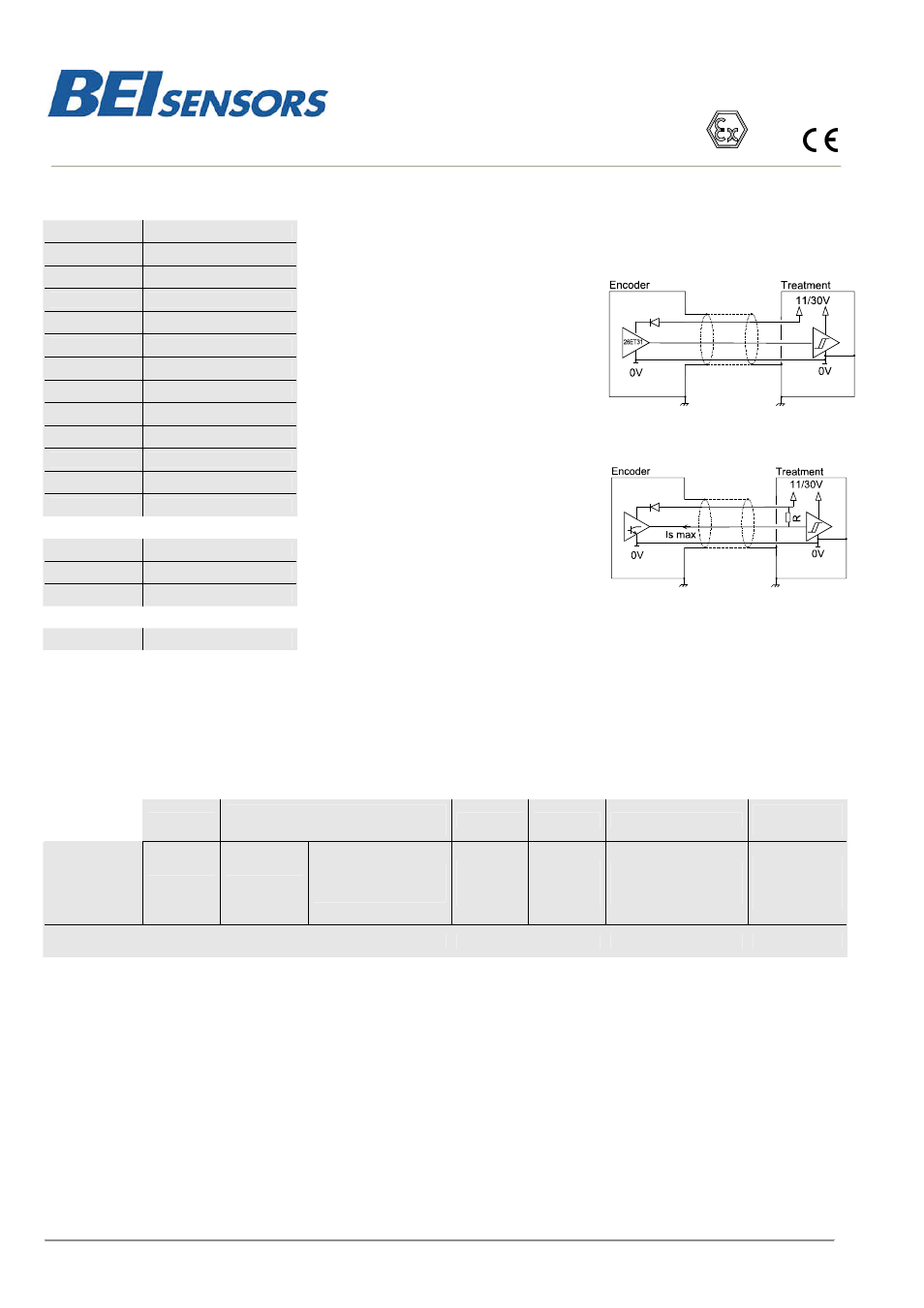

POWER SUPPLY/ OUTPUT STAGES
5C5 electronic : Push-pull 11/30Vdc
Power supply : 11 to 30Vdc
Consumption without load : 100mA max
Intensity per channel : Is = 20mA max
0 max (Is=20mA): V
ol
= 0,5Vdc
1 min (Is=20mA): V
oh
= Vcc-3Vdc
Protection against short circuits
Protection against inversion of polarity
5CN electronic : NPN CO 11 to 30Vdc
Power supply: 11 to 30Vdc
Consumption without load : 100mA max
Intensity per channel : Is = 20mA max
0 max (Is=20mA): V
ol
= 1,25Vdc
Protection against inversion of polarity
10 bits encoder example : only MSB (D3 to D12) will be connected
DIRECTION entry
:
- Code direction CW : connect White/Red with Brown
- Code direction CCW : connect White/Red with White
ORDERING CODE
Shaft 
Parallel output :
5C5, 5CN
Code Resolution Connection
Orientation
connection
CAMX
(aluminium)
CEMX
(stainless steel)
12 :12mm 5: 11 – 30Vdc
C5: Push-Pull 11-30Vdc
CN: NPNCO 11-30Vdc
B : binaire
G : Gray 13
…
1
T3 : cable gland +
PVC cable
Ex. cable :
A030 : cable
3m axial
Ex: CEMX _ 12 // 5 C5 G // 13 // T3 A030
ASSEMBLY CAUTION
NEVER OPEN THE ENCODER
NEVER CONNECT/DISCONNECT UNDER POWER SUPPLY/IN PRESENCE OF DUSTS ATMOSPHERE
The customer obliges to take up and to use our products, according to our specifications and to the manners of the profession. Our
company would not be responsible for any defect resulting from a defective or erroneous assembly. From a use superior to the
standard, or in abnormal conditions. The breakdowns resultant of shocks, bad electric supply, put in low capacity or overcapacity of
the product, the environment of bad conditions (humidity, projection, dust, etc) cannot be imputed to us. The converter doesn’t
require any maintenance. Any encoder presenting a dysfunction will have to be the object of immediate return for control in our
facilities. The encoder mustn’t be open in any case (cable gland and/or cover)
An earth situated on the cover must be linked with the ground of the installation
Made in FRANCE
Changes possible without further notice - Version 091118
