GAUX
ATEX INCREMENTAL ENCODERS, GAUX RANGE

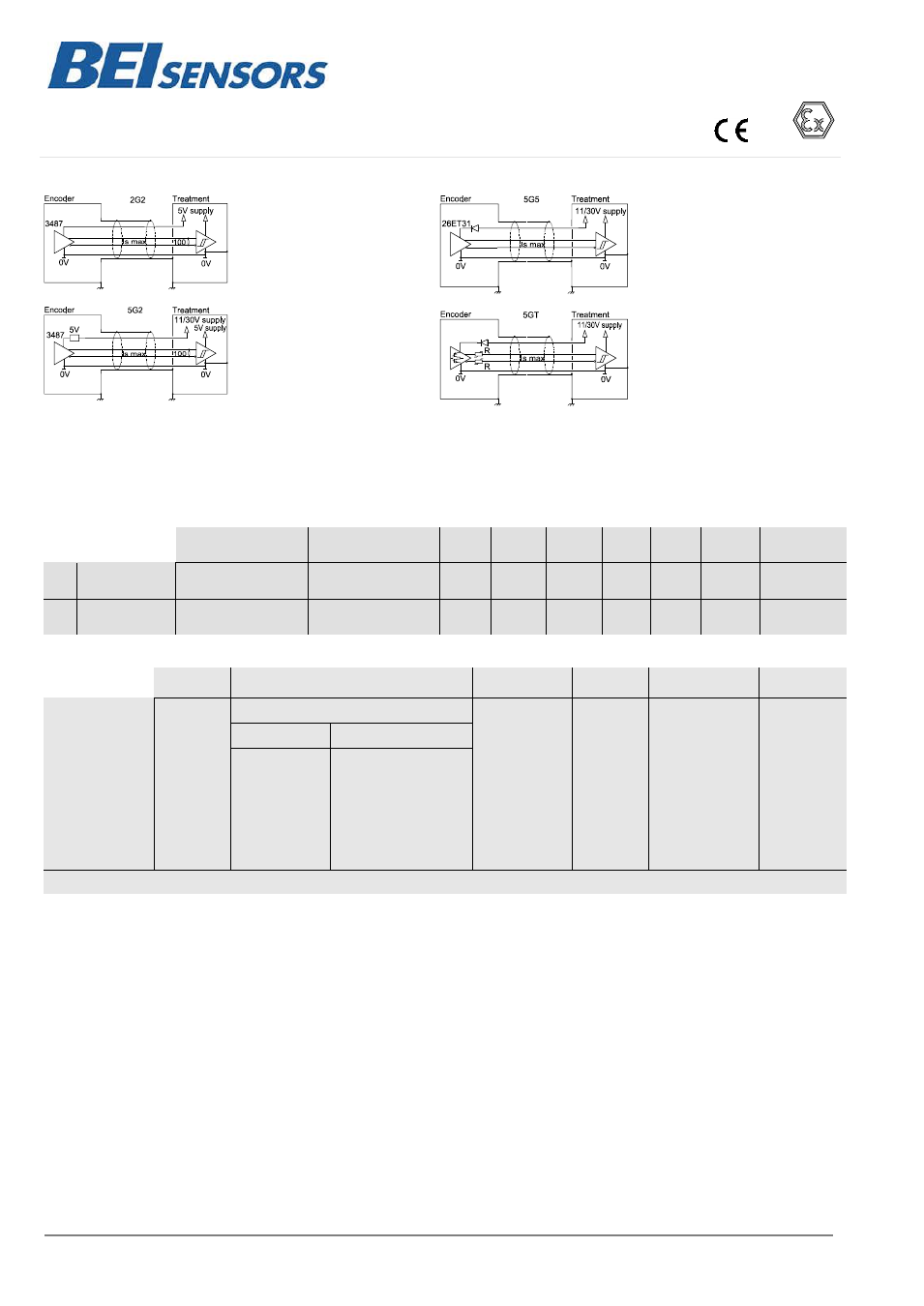

OUTPUT ELECTRONIC / SUPPLY
2G2 electronic (100kHz)
Supply : 5Vdc  10%
Cons. without load : 100mA max
Intensity per channel: 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1 min (Is=20mA) : V
oh
= 2,5Vdc
5G2 electronic (100kHz)
Supply: 11 to 30Vdc
Cons. without load : 75mA max
Intensity per channel: 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1 min (Is=20mA) : V
oh
= 2,5Vdc
5G5 electronic (100kHz)
Supply: 11 to 30Vdc
Cons. without load : 75mA max
Intensity per channel: 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1 min (Is=20mA) : V
oh
= Vcc-3Vdc
5GT electronic, option (100kHz)
Supply: 11 to 30Vdc
Cons. without load : 75mA max
Intensity per channel: 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1 min (Is=20mA) : V
oh
= Vcc-2,5Vdc
5GT electronic helps to drive very long cables (contact our
factory)
Available :
3G3 electronic, supply between 15 and 30Vdc, push-pull output
regulated 12Vdc
Protection against short circuits of the electronics: 5G5,
5GT, 3G3
Protection against inversion of polarity for all the
electronics except 2G2
STANDARD CONNECTION
- + A B 0 A/ B/ 0/ Ground
G3
PVC cable 8
wires 8230/020
WH
white
BN
brown
GN
green
YE
yellow
GY
grey
PK
pink
BU
blue
RD
red
General
shielding
GP
PUR cable 12
wires 8230/050
WH white +
WH/GN white /green
BU blue +
BN/GN brown / green
GY
grey
BN
brown
RD
red
PK
pink
GN
green
BK
black
General
shielding
ORDERING REFERENCE
Shaft  Available electronic Output signals Resolution Connection
Connection
orientation
GAUX
Aluminium
cover & body
GEUX
Stainless steel
cover & body
30 : 30mm
2G2, 5G2, 5G5, 5GT
9 : A,A/,B,B/,0,0/
(0, gated A&B)
A : A,A/,B,B/,0,0/
(0, gated A)
N : A,A/,B,B/,0,0/
(0, ungated)
10 000
max
G3 : PVC cable
8 wires
GP : PUR cable
12 wires
Example :
R030 : radial
cable 3m
Supply Output stage
2 : 5Vdc
5 : 11 to
30Vdc
G2 : driver 5Vdc RS422
G5 : push-pull 11-30Vdc
GT : push-pull 11-30Vdc
transistorized
Ex: GAUX _ 30 // 5 G5 9 // 5 000 // GP R050
Available resolutions : 1 2 3 4 5 6 7 8 9 10 12 13 14 15 16 19 20 21 24 25 26 28 29 30 32 35 36 39 40 43 45 46 48 50 54 56 58
60 62 63 64 66 67 70 72 74 75 76 80 84 86 88 89 90 91 94 96 100 107 110 120 122 123 125 127 128 130 132 135 138 140 147 150
157 159 160 168 169 170 172 175 180 188 191 196 200 201 205 220 222 225 234 240 241 242 245 246 248 250 254 255 256 258 259
267 268 275 283 285 295 300 305 314 315 318 320 330 340 350 360 367 375 378 380 381 388 390 397 400 405 410 424 425 438 443
450 471 480 489 495 500 505 512 515 534 540 550 565 580 600 623 625 628 630 632 635 650 660 700 720 746 750 752 754 800 810
840 860 880 891 900 942 990 1000 1024 1080 1100 1131 1200 1225 1250 1260 1280 1290 1400 1414 1440 1500 1536 1570 1600 1620
1630 1750 1800 1885 2000 2048 2250 2400 2500 2640 3000 3456 3600 3680 3750 4000 4096 4500 4900 5000 7200 9000 10000
ASSEMBLY CAUTION
NEVER OPEN THE ENCODER
NEVER CONNECT/DISCONNECT UNDER POWER SUPPLY/IN PRESENCE OF DUSTS ATMOSPHERE
The customer obliges to take up and to use our products, according to our specifications and to the manners of the profession. Our
company would not be responsible for any defect resulting from a defective or erroneous assembly. From a use superior to the
standard, or in abnormal conditions. The breakdowns resultant of shocks, bad electric supply, put in low capacity or overcapacity of
the product, the environment of bad conditions (humidity, projection, dust, etc) cannot be imputed to us. The converter doesn’t
require any maintenance. Any encoder presenting a dysfunction will have to be the object of immediate return for control in our
facilities. The encoder mustn’t be open in any case (cable gland and/or cover)
An earth situated on the cover must be linked with the ground of the installation
Made in FRANCE
Changes possible without further notice - Version 091118
