OPTICAL INCREMENTAL ENCODERS, GHM3 RANGE

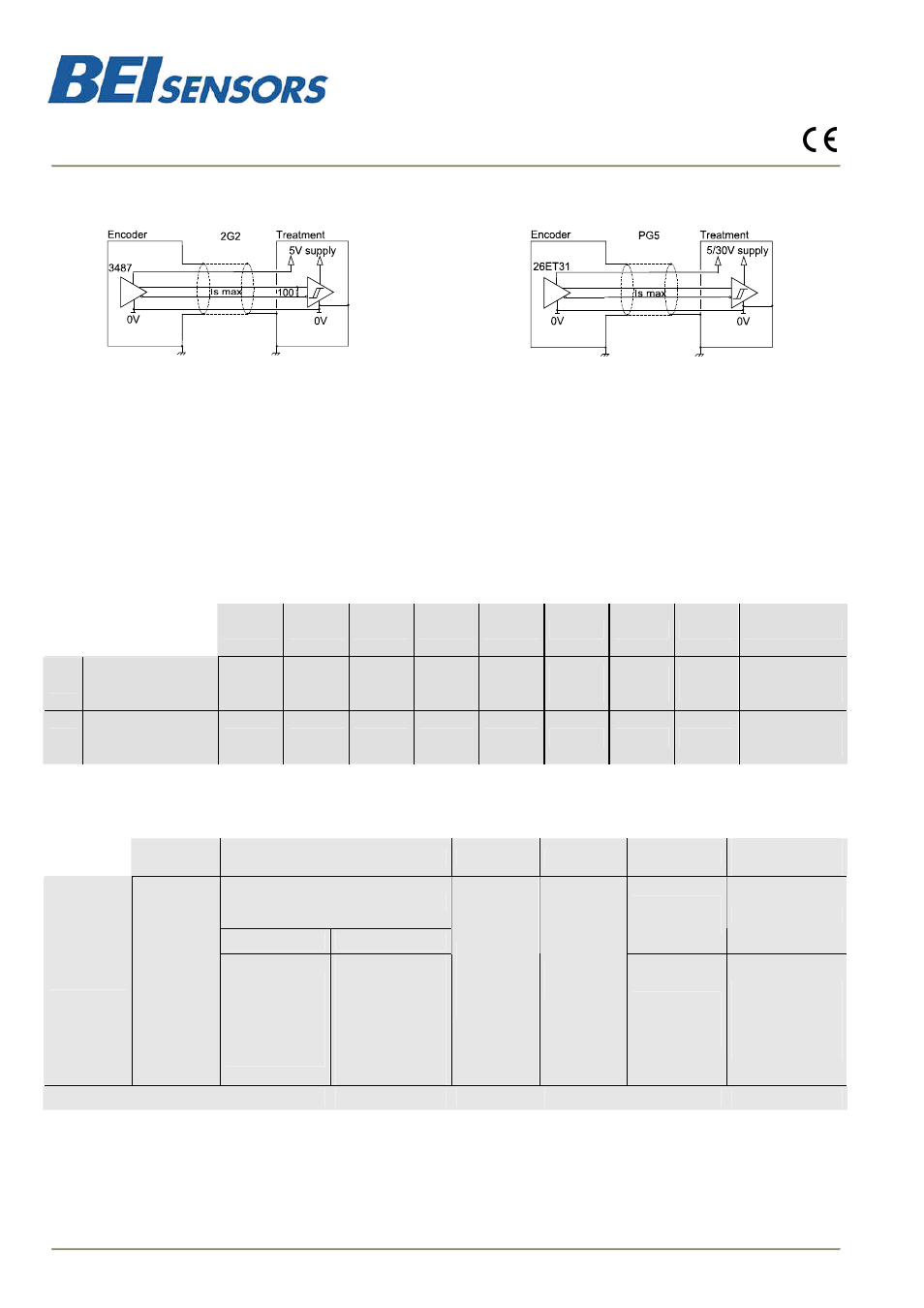

OUTPUT ELECTRONIC / POWER SUPPLY
2G2 electronic (100kHz)
Supply : 5Vdc 10%
Cons. without load : 100mA max
Current per channel : 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1 min (Is=20mA) : V
oh
= 2,5Vdc
PG5 electronic(100kHz)
Supply : 5 to 30Vdc
Cons. without load : 75mA max
Current per channel : 40mA max
0 max (Is=20mA) : V
ol
= 0,5Vdc
1min (Is=20mA) : V
oh
= Vcc-3Vdc
Protection against short circuits and inversion of polarity for the electronic PG5
STANDARD CONNECTION
-
+
A
B
0
A/
B/
0/
Ground
G3
PVC cable,
8 wires
WH
white
BN
brown
GN
green
YE
yellow
GY
grey
PK
pink
BU
blue
RD
red
Main
shield
GM M12 connector
8 pinouts
1
2
3
4
5
6
7
8
Connector
body
ORDERING REFERENCE
(Contact the factory for special versions , ex: special flanges, electronics, connections…)
Shaft
Available electronics
Signals
Resolution
Connection
Connection
orientation
2G2, PG5
Supply
Output stage
GM : M12
8 pinouts
A : axial
GHM3
06 :
6mm
2 : 5Vdc
P : 5 to 30Vdc
G2 : 5Vdc
TTL / RS422
G5 : push-
Pull
9 :
A, A/,
B, B/,
0, 0/
1024
max
G3 : PVC
cable 8
wires
Example :
D020 : diagonal
2m
Ex: GHM3_
06 //
P
G5
9 //
00250//
G3
D020
Available resolutions
: 1000, 500, 360, 300, 256, 200, 125, 100, 60 (other available on request)
Made in FRANCE
