Going further with the STE100

For complete details and operations procedures, please refer to the

Smart Edge

User’s Manual and our website for further

information:

www.analogway.com

Version : 4.00 - 14/12/11

Code : 140127

Multiple Machine Mode

Warranty

This

Analog Way

product has a 3 year warranty on parts and labor, back to factory. This warranty does not include faults

resulting from user negligence, special modifications, electrical surges, abuse (drop/crush), and/or other unusual damage.

NOTE: The updater files are available on our web site:

http://www.analogway.com

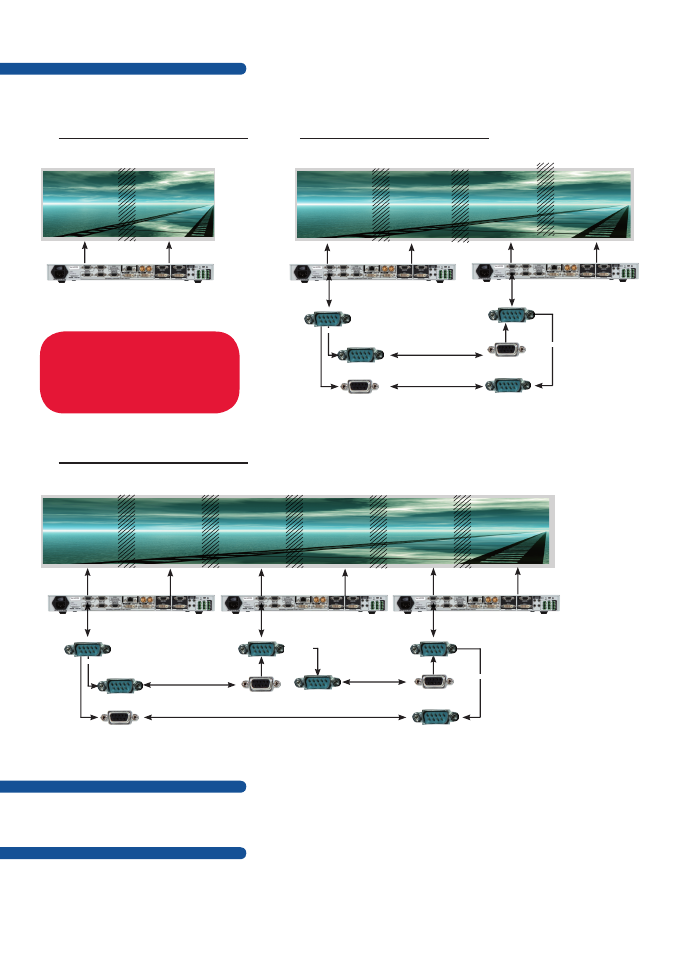

Up to 3 x STE100 for Large Wide Screen with 6 Video Projectors.

1 x STE100 = 2 Video Projectors

2 x STE100 = 4 Video Projectors

Thank you for using 2 x Sync Cable for multiple machine mode.

No Sync Cable.

Thank you for using 3 x Sync Cable for multiple machine mode.

3 x STE100 = 6 Video Projectors

LEFT

RIGHT

LEFT

+ Sync Cable

WARNING !

Sync Cable

OPTIONAL.

For multiple machine mode, use one cable

per STE100 (Ref.

AW212080).

For a perfect functioning, the follow mode

is recommanded on all units.
