Smart Edge - Ref. STE100

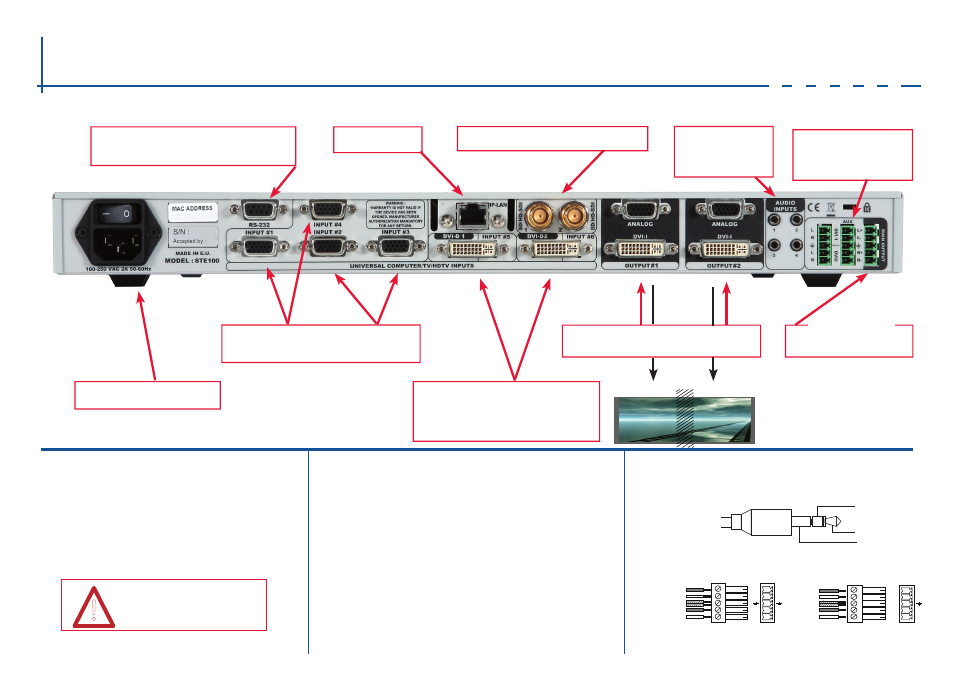

Rear Panel Description
RS-232 communication port on a DB9 female
connector or TCP/IP on RJ45 connector
Power supply: IEC/EN/UL/CSA
60950-1, internal, autoswitchable
Universal Analog Computer/TV/HDTV inputs
#1 to #4
SD-SDI/HD-SDI inputs #1 & #2: female BNC
DVI connectors: DVI-D inputs #1 and #2 on
the DVI-I digital pins, and Universal Analog
inputs #5 & #6 on the DVI-I analog pins.
Use the included break-in cable.
IP-LAN connectors 3.5mm Jack Stereo
Connector input
(unbalanced)
Inputs #1 to #4
MCO Male connector for
input. DVI #1 & #2 and AUX
A U D I O I N P U T S C O N N E C T I O N S
3.5mm Jack Stereo Connector
Inputs #1 to #4: Unbalanced connection
MCO Male Connectors
DVI #1 to DVI #2: Unbalanced connection
Main Output: Balanced connection
Input #7 (AUX): Balanced connection
4
L+
L-
R+
R-
BALANCED
L+
R+
L-
R-
GROUND(S)
H O M E M E N U
The Home Menu is the system’s top level menu, from which all others menus can be
accessed. To access a menu, press the [MENU] button. To navigate in the Home
Menu, please use the knob. To confirm, please use the [ENTER] button. You can also
return to the Home Menu by pressing the [EXIT] button.
-
INPUT: configure the 10 individual input types and resolutions
- OUTPUT #1: display the left image
- OUTPUT #2: display the right image
- PRESET: store and use presets
- IMAGE: change source image settings of an input
- KEYING/TITLING: access keying and titling controls and parameters
- LAYER : adjust Layer size, position, transparency or Transitions
- AUDIO: access all audio input and output parameters
- SOFTEDGE: access controls and parameters for Embedded Soft Edge Mode
- CONTROL: access device software information, LAN settings, reset factory settings,
amongst other user oriented functions (see next page)
- VIRTUAL T-Bar: select to access the Virtual T-Bar
W O R K I N G W I T H S T E 1 0 0
The features of STE100 can be controled by the external remote control as:
- Orchestra - Ref.: ORC50
- Axion2 - Ref.: ARC200
- Remote Control Software - Ref.: RCS (supplied)
- Triple Remote Control Keypad - Ref.: TRK-800
- Remote Control Keypad - Ref.: RK-300
AUDIO OUTPUT
Right
Left
Ground
RK-300, TRK-800 & RCS
can not be used in multiple
machine mode.
!
LEFT RIGHT
5
6
L
R
L
R
UNBALANCED
LEFT
LEFT
RIGHT
RIGHT
GROUND(S)
Input #5
Input #6
Outputs #1 & #2: female HD15, DVI-I
(simultaneous analog and digital outputs)
Main Audio Output (balanced)
