Going further with the STE200
For complete details and operations procedures, please refer to the Smart Edge FX User’s Manual and our website for
further information: www.analogway.com .
Version : 4.10 - 04/06/12
Code : 140127
Multiple Machine Mode
Warranty
This Analog Way product has a 3 year warranty on parts and labor, back to factory. This warranty does not include faults
UHVXOWLQJIURPXVHUQHJOLJHQFHVSHFLDOPRGL¿FDWLRQVHOHFWULFDOVXUJHVDEXVHGURSFUXVKDQGRURWKHUXQXVXDOGDPDJH
NOTE:
7KHXSGDWHU¿OHVDUHDYDLODEOHRQRXUZHEVLWH
http://www.analogway.com

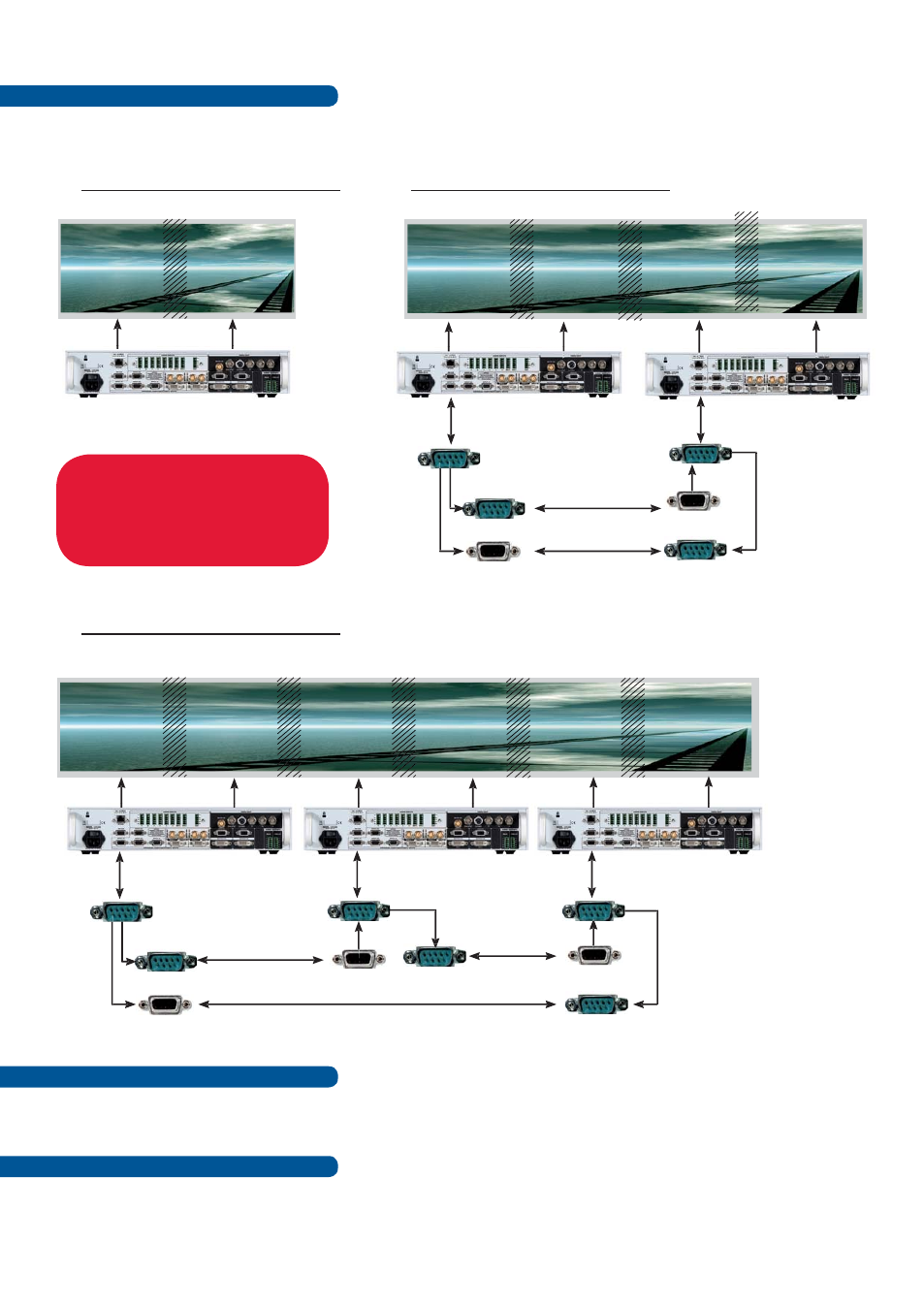

Up to 3 x STE200 for Large Wide Screen with 6 Video Projectors. The Soft Edge Blending can be displayed
horizontally or vertically.
>> 1 x STE200 = 2 Video Projectors >> 2 x STE200 = 4 Video Projectors
Thank you for using 2 x Sync Cable for multiple machine mode.
No Sync Cable.
Thank you for using 3 x Sync Cable for multiple machine mode.
>> 3 x STE200 = 6 Video Projectors
LEFT RIGHT RIGHT RIGHT
RIGHT RIGHT RIGHT
LEFT
LEFT LEFT LEFT
LEFT
+ Sync Cable + Sync Cable + Sync Cable
+ Sync Cable + Sync Cable
WARNING !
Sync Cable OPTIONAL.
For multiple machine mode, use one cable
per STE200 (Ref. AW212080).
For a perfect functioning, the follow mode
is recommanded on all units.
