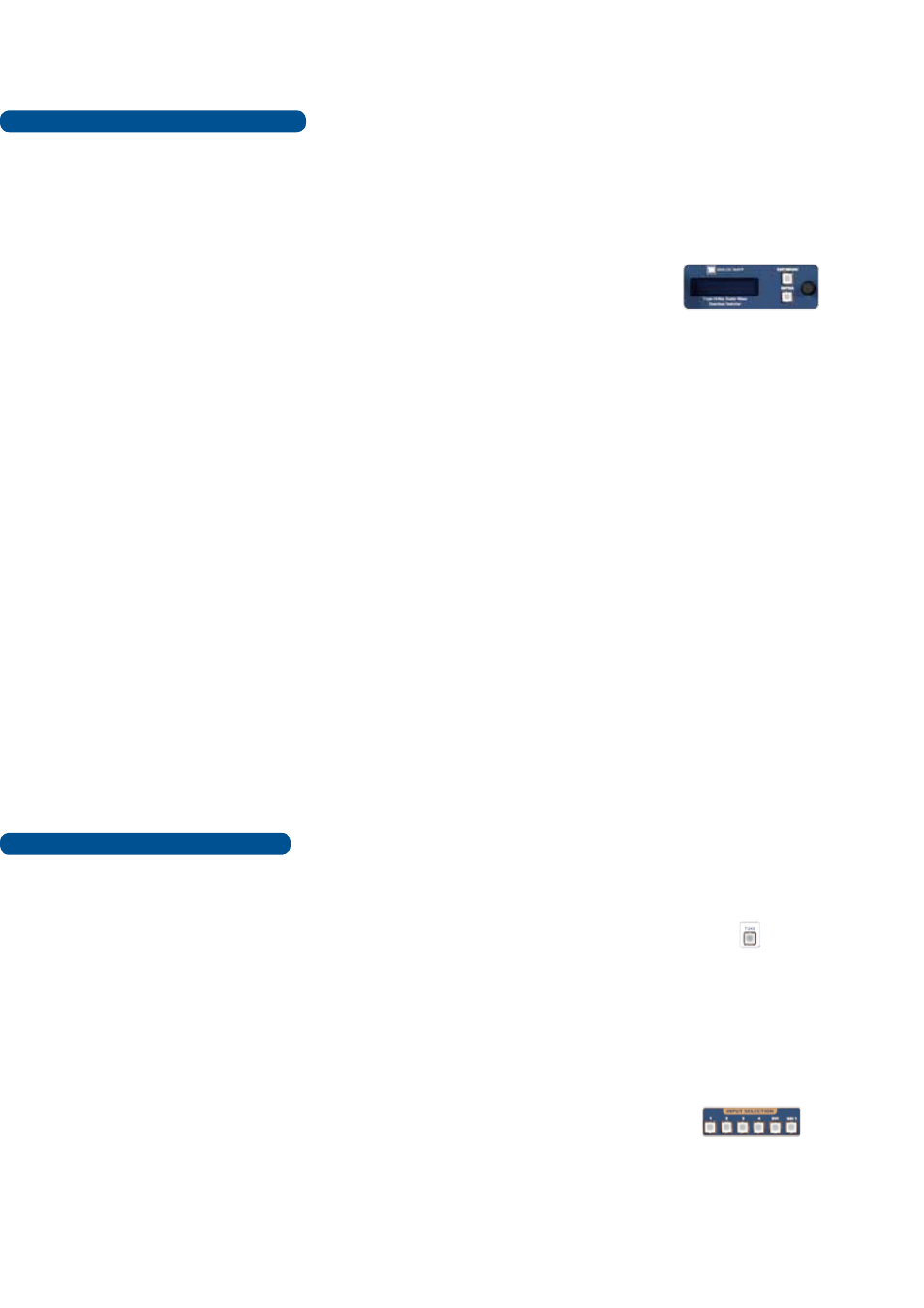

The Smart Vu LE offers only one type of layer to work with: Live
Background. To work with a live background, simply select a live
input source (1-5) from the Input Selection section of the Smart Vu
LE . The selected button will start to blink. Press the TAKE button to
view the results on your Main output.
It is possible to add an opening and closing transition type to your
live layer.
To parameter transitions for live layer, proceed as follows:
1/ In the Input Selection section, press the source button you wish to
add a transition effect to. The button will start blinking.
1/ In the menu section, press the EXIT/MENU button and select Input
in the menu by rotating the selection knob and press the ENTER
button to enter the Input sub-menu.
2/ Select Auto Setting and press enter to automatically configure the
inputs plugged into the Smart Vu LE . The device will set all input
resolutions and frequencies to match the input sources plugged to
the device.
3/ Alternatively, you can configure all inputs of the Smart Vu LE
individually, by navigating to the Input menu and setting each input
accordingly.
Once your inputs have all been configured, the output settings of
the Smart Vu LE must be set according to the machines plugged
on your Smart Vu LE Main and Preview outputs (video projector,
preview monitor...).
1/ In the menu section, press the EXIT/MENU button and select
Output in the menu by rotating the selection knob. Enter the Output
sub-menu and select the output type, resolution and frequency, so
that they match the viewing hardware plugged into the unit.
2/ Press the ENTER button to enter each of the desired output
parameters.
Your Smart Vu LE is now set up and ready to work with.
SmartVu LE layers
Input & Output configuration
