3-1. CONNECTING THE Di-VentiX II
The
Di-VentiX II
can be set up with up to 8 different sources, and will drive up to 4 digital DVI-HD/SD-SDI
sources and 4 analog computer/video sources simultaneously. The versatility of the
Di-VentiX II
will allow for
almost any event configuration and cater for all your projection needs.

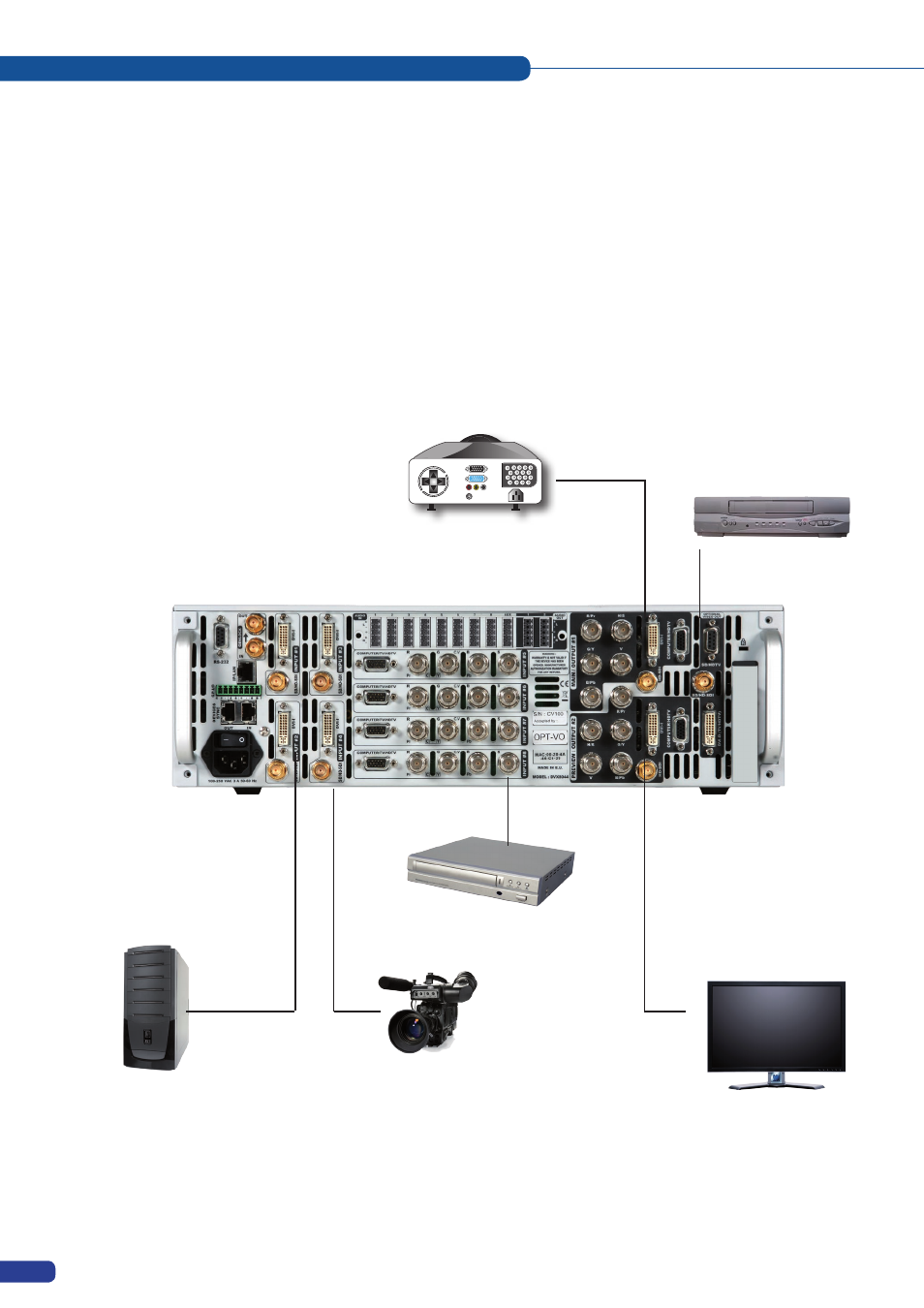

The intuitive rear panel of the
Di-VentiX II
will let you set up for the first time quickly and easily. Here is an
example of a typical
Di-VentiX II
setup.
CONNECTING THE DI-VENTIX II
20
HD Camera
Preview Monitor
Recording device
Video projector
DVD player
Computer
